Datasheet AD8051, AD8052, AD8054 (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | Low Cost, High Speed, Rail-to-Rail Amplifier |
| Páginas / Página | 24 / 3 — AD8051/AD8052/AD8054. SPECIFICATIONS. Table 1. AD8051A/AD8052A. AD8054A. … |
| Revisión | J |
| Formato / tamaño de archivo | PDF / 358 Kb |
| Idioma del documento | Inglés |
AD8051/AD8052/AD8054. SPECIFICATIONS. Table 1. AD8051A/AD8052A. AD8054A. Parameter. Conditions. Min. Typ. Max. Unit
Versión de texto del documento
link to page 4

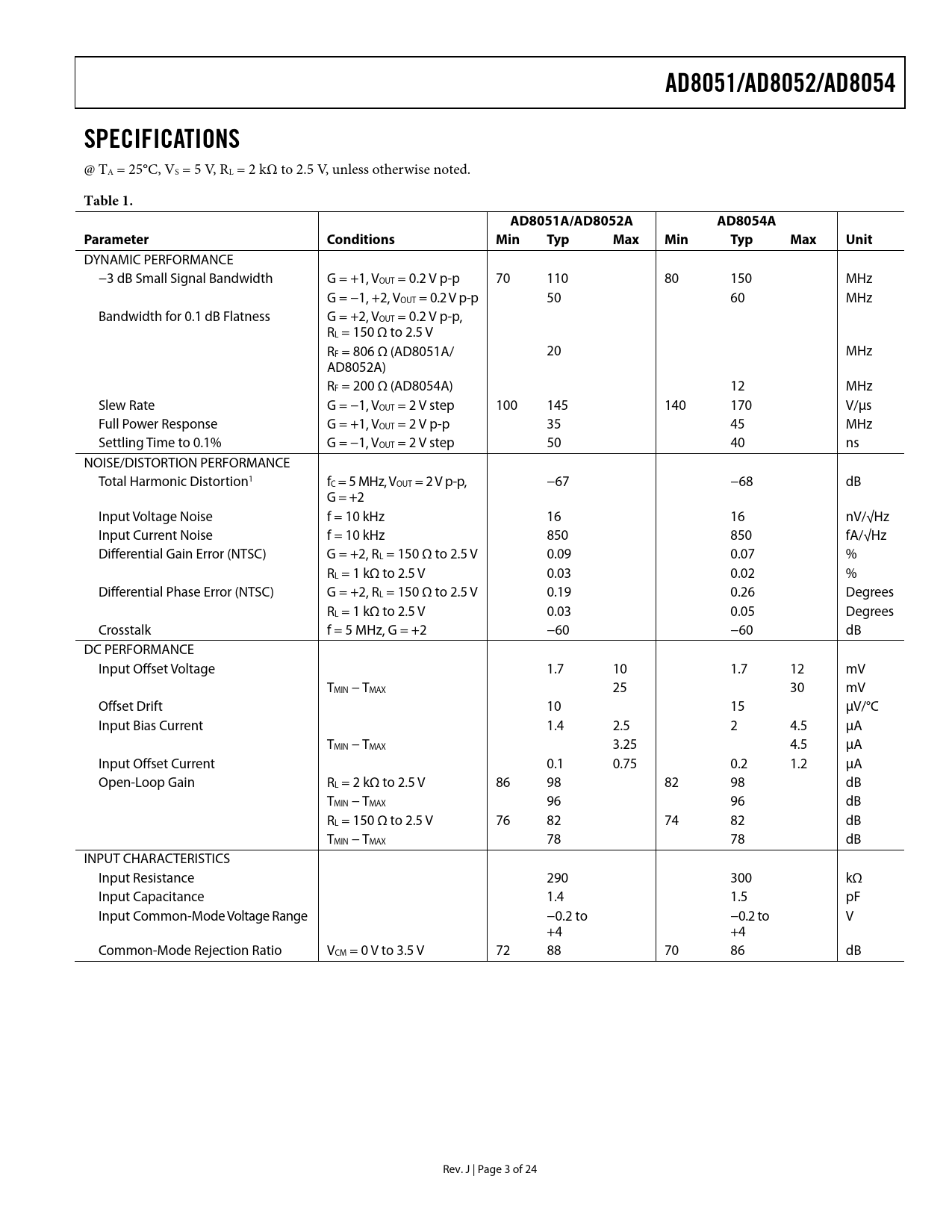

AD8051/AD8052/AD8054 SPECIFICATIONS
@ TA = 25°C, VS = 5 V, RL = 2 kΩ to 2.5 V, unless otherwise noted.
Table 1. AD8051A/AD8052A AD8054A Parameter Conditions Min Typ Max Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Small Signal Bandwidth G = +1, VOUT = 0.2 V p-p 70 110 80 150 MHz G = −1, +2, VOUT = 0.2 V p-p 50 60 MHz Bandwidth for 0.1 dB Flatness G = +2, VOUT = 0.2 V p-p, RL = 150 Ω to 2.5 V RF = 806 Ω (AD8051A/ 20 MHz AD8052A) RF = 200 Ω (AD8054A) 12 MHz Slew Rate G = −1, VOUT = 2 V step 100 145 140 170 V/μs Full Power Response G = +1, VOUT = 2 V p-p 35 45 MHz Settling Time to 0.1% G = −1, VOUT = 2 V step 50 40 ns NOISE/DISTORTION PERFORMANCE Total Harmonic Distortion1 fC = 5 MHz, VOUT = 2 V p-p, −67 −68 dB G = +2 Input Voltage Noise f = 10 kHz 16 16 nV/√Hz Input Current Noise f = 10 kHz 850 850 fA/√Hz Differential Gain Error (NTSC) G = +2, RL = 150 Ω to 2.5 V 0.09 0.07 % RL = 1 kΩ to 2.5 V 0.03 0.02 % Differential Phase Error (NTSC) G = +2, RL = 150 Ω to 2.5 V 0.19 0.26 Degrees RL = 1 kΩ to 2.5 V 0.03 0.05 Degrees Crosstalk f = 5 MHz, G = +2 −60 −60 dB DC PERFORMANCE Input Offset Voltage 1.7 10 1.7 12 mV TMIN − TMAX 25 30 mV Offset Drift 10 15 μV/°C Input Bias Current 1.4 2.5 2 4.5 μA TMIN − TMAX 3.25 4.5 μA Input Offset Current 0.1 0.75 0.2 1.2 μA Open-Loop Gain RL = 2 kΩ to 2.5 V 86 98 82 98 dB TMIN − TMAX 96 96 dB RL = 150 Ω to 2.5 V 76 82 74 82 dB TMIN − TMAX 78 78 dB INPUT CHARACTERISTICS Input Resistance 290 300 kΩ Input Capacitance 1.4 1.5 pF Input Common-Mode Voltage Range −0.2 to −0.2 to V +4 +4 Common-Mode Rejection Ratio VCM = 0 V to 3.5 V 72 88 70 86 dB Rev. J | Page 3 of 24 Document Outline Features Applications Pin Connections (Top Views) General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance Maximum Power Dissipation ESD Caution Typical Performance Characteristics Theory of Operation Circuit Description Application Information Overdrive Recovery Driving Capacitive Loads Layout Considerations Active Filters Analog-to-Digital and Digital-to-Analog Applications Sync Stripper Single-Supply Composite Video Line Driver Outline Dimensions Ordering Guide
AD8051/AD8052/AD8054 SPECIFICATIONS
@ TA = 25°C, VS = 5 V, RL = 2 kΩ to 2.5 V, unless otherwise noted.
Table 1. AD8051A/AD8052A AD8054A Parameter Conditions Min Typ Max Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Small Signal Bandwidth G = +1, VOUT = 0.2 V p-p 70 110 80 150 MHz G = −1, +2, VOUT = 0.2 V p-p 50 60 MHz Bandwidth for 0.1 dB Flatness G = +2, VOUT = 0.2 V p-p, RL = 150 Ω to 2.5 V RF = 806 Ω (AD8051A/ 20 MHz AD8052A) RF = 200 Ω (AD8054A) 12 MHz Slew Rate G = −1, VOUT = 2 V step 100 145 140 170 V/μs Full Power Response G = +1, VOUT = 2 V p-p 35 45 MHz Settling Time to 0.1% G = −1, VOUT = 2 V step 50 40 ns NOISE/DISTORTION PERFORMANCE Total Harmonic Distortion1 fC = 5 MHz, VOUT = 2 V p-p, −67 −68 dB G = +2 Input Voltage Noise f = 10 kHz 16 16 nV/√Hz Input Current Noise f = 10 kHz 850 850 fA/√Hz Differential Gain Error (NTSC) G = +2, RL = 150 Ω to 2.5 V 0.09 0.07 % RL = 1 kΩ to 2.5 V 0.03 0.02 % Differential Phase Error (NTSC) G = +2, RL = 150 Ω to 2.5 V 0.19 0.26 Degrees RL = 1 kΩ to 2.5 V 0.03 0.05 Degrees Crosstalk f = 5 MHz, G = +2 −60 −60 dB DC PERFORMANCE Input Offset Voltage 1.7 10 1.7 12 mV TMIN − TMAX 25 30 mV Offset Drift 10 15 μV/°C Input Bias Current 1.4 2.5 2 4.5 μA TMIN − TMAX 3.25 4.5 μA Input Offset Current 0.1 0.75 0.2 1.2 μA Open-Loop Gain RL = 2 kΩ to 2.5 V 86 98 82 98 dB TMIN − TMAX 96 96 dB RL = 150 Ω to 2.5 V 76 82 74 82 dB TMIN − TMAX 78 78 dB INPUT CHARACTERISTICS Input Resistance 290 300 kΩ Input Capacitance 1.4 1.5 pF Input Common-Mode Voltage Range −0.2 to −0.2 to V +4 +4 Common-Mode Rejection Ratio VCM = 0 V to 3.5 V 72 88 70 86 dB Rev. J | Page 3 of 24 Document Outline Features Applications Pin Connections (Top Views) General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance Maximum Power Dissipation ESD Caution Typical Performance Characteristics Theory of Operation Circuit Description Application Information Overdrive Recovery Driving Capacitive Loads Layout Considerations Active Filters Analog-to-Digital and Digital-to-Analog Applications Sync Stripper Single-Supply Composite Video Line Driver Outline Dimensions Ordering Guide
