Datasheet AD8091, AD8092 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | Low Cost, High Speed Rail-to-Rail Amplifiers |
| Páginas / Página | 20 / 6 — AD8091/AD8092. ABSOLUTE MAXIMUM RATINGS. Table 4. Parameter Rating. ESD … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 323 Kb |
| Idioma del documento | Inglés |
AD8091/AD8092. ABSOLUTE MAXIMUM RATINGS. Table 4. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 7 link to page 7

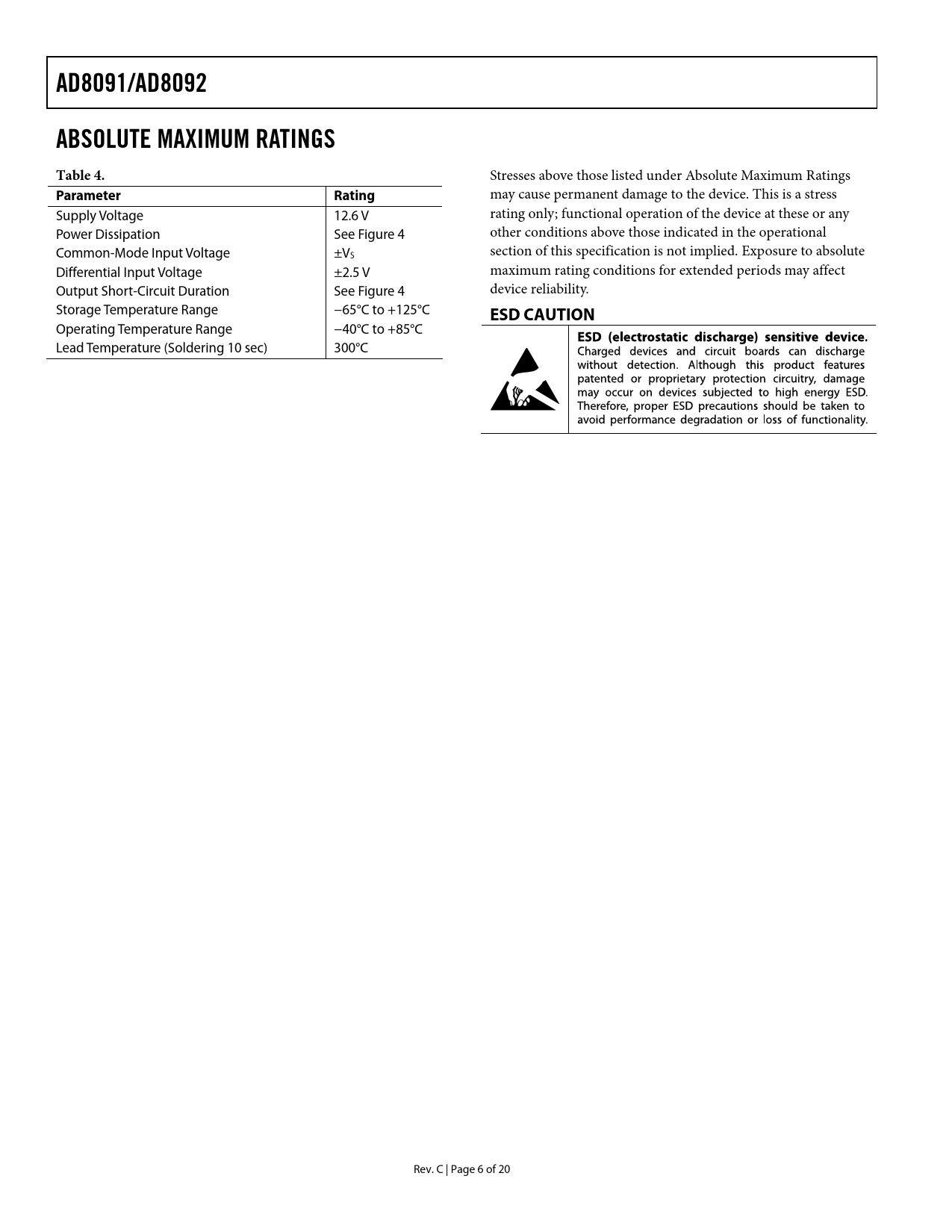

AD8091/AD8092 ABSOLUTE MAXIMUM RATINGS Table 4.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage 12.6 V rating only; functional operation of the device at these or any Power Dissipation See Figure 4 other conditions above those indicated in the operational Common-Mode Input Voltage ±V section of this specification is not implied. Exposure to absolute S Differential Input Voltage ±2.5 V maximum rating conditions for extended periods may affect Output Short-Circuit Duration See Figure 4 device reliability. Storage Temperature Range −65°C to +125°C
ESD CAUTION
Operating Temperature Range −40°C to +85°C Lead Temperature (Soldering 10 sec) 300°C Rev. C | Page 6 of 20 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION MAXIMUM POWER DISSIPATION TYPICAL PERFORMANCE CHARACTERISTICS LAYOUT, GROUNDING, AND BYPASSING CONSIDERATIONS POWER SUPPLY BYPASSING GROUNDING INPUT CAPACITANCE INPUT-TO-OUTPUT COUPLING DRIVING CAPACITIVE LOADS OVERDRIVE RECOVERY ACTIVE FILTERS SYNC STRIPPER SINGLE-SUPPLY COMPOSITE VIDEO LINE DRIVER OUTLINE DIMENSIONS ORDERING GUIDE
