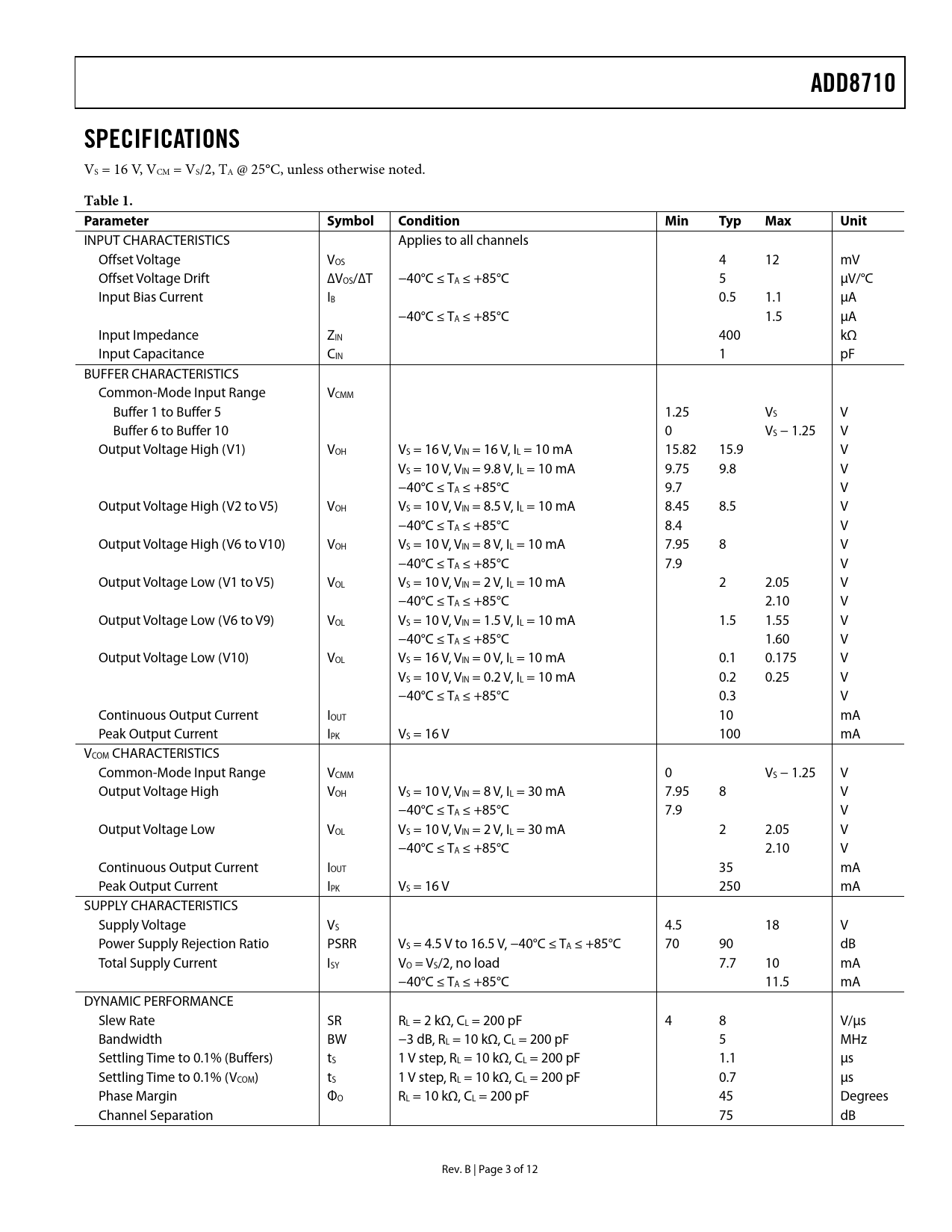

ADD8710 SPECIFICATIONS
VS = 16 V, VCM = VS/2, TA @ 25°C, unless otherwise noted.
Table 1. Parameter Symbol Condition Min Typ Max Unit
INPUT CHARACTERISTICS Applies to all channels Offset Voltage VOS 4 12 mV Offset Voltage Drift ∆VOS/∆T −40°C ≤ TA ≤ +85°C 5 μV/°C Input Bias Current IB 0.5 1.1 μA −40°C ≤ TA ≤ +85°C 1.5 μA Input Impedance ZIN 400 kΩ Input Capacitance CIN 1 pF BUFFER CHARACTERISTICS Common-Mode Input Range VCMM Buffer 1 to Buffer 5 1.25 VS V Buffer 6 to Buffer 10 0 VS − 1.25 V Output Voltage High (V1) VOH VS = 16 V, VIN = 16 V, IL = 10 mA 15.82 15.9 V VS = 10 V, VIN = 9.8 V, IL = 10 mA 9.75 9.8 V −40°C ≤ TA ≤ +85°C 9.7 V Output Voltage High (V2 to V5) VOH VS = 10 V, VIN = 8.5 V, IL = 10 mA 8.45 8.5 V −40°C ≤ TA ≤ +85°C 8.4 V Output Voltage High (V6 to V10) VOH VS = 10 V, VIN = 8 V, IL = 10 mA 7.95 8 V −40°C ≤ TA ≤ +85°C 7.9 V Output Voltage Low (V1 to V5) VOL VS = 10 V, VIN = 2 V, IL = 10 mA 2 2.05 V −40°C ≤ TA ≤ +85°C 2.10 V Output Voltage Low (V6 to V9) VOL VS = 10 V, VIN = 1.5 V, IL = 10 mA 1.5 1.55 V −40°C ≤ TA ≤ +85°C 1.60 V Output Voltage Low (V10) VOL VS = 16 V, VIN = 0 V, IL = 10 mA 0.1 0.175 V VS = 10 V, VIN = 0.2 V, IL = 10 mA 0.2 0.25 V −40°C ≤ TA ≤ +85°C 0.3 V Continuous Output Current IOUT 10 mA Peak Output Current IPK VS = 16 V 100 mA VCOM CHARACTERISTICS Common-Mode Input Range VCMM 0 VS − 1.25 V Output Voltage High VOH VS = 10 V, VIN = 8 V, IL = 30 mA 7.95 8 V −40°C ≤ TA ≤ +85°C 7.9 V Output Voltage Low VOL VS = 10 V, VIN = 2 V, IL = 30 mA 2 2.05 V −40°C ≤ TA ≤ +85°C 2.10 V Continuous Output Current IOUT 35 mA Peak Output Current IPK VS = 16 V 250 mA SUPPLY CHARACTERISTICS Supply Voltage VS 4.5 18 V Power Supply Rejection Ratio PSRR VS = 4.5 V to 16.5 V, −40°C ≤ TA ≤ +85°C 70 90 dB Total Supply Current ISY VO = VS/2, no load 7.7 10 mA −40°C ≤ TA ≤ +85°C 11.5 mA DYNAMIC PERFORMANCE Slew Rate SR RL = 2 kΩ, CL = 200 pF 4 8 V/μs Bandwidth BW −3 dB, RL = 10 kΩ, CL = 200 pF 5 MHz Settling Time to 0.1% (Buffers) tS 1 V step, RL = 10 kΩ, CL = 200 pF 1.1 μs Settling Time to 0.1% (VCOM) tS 1 V step, RL = 10 kΩ, CL = 200 pF 0.7 μs Phase Margin ΦO RL = 10 kΩ, CL = 200 pF 45 Degrees Channel Separation 75 dB Rev. B | Page 3 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
