Datasheet ADD8710 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 10-Channel Gamma Buffer with VCOM Driver |
| Páginas / Página | 13 / 5 — ADD8710. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter. … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 287 Kb |
| Idioma del documento | Inglés |

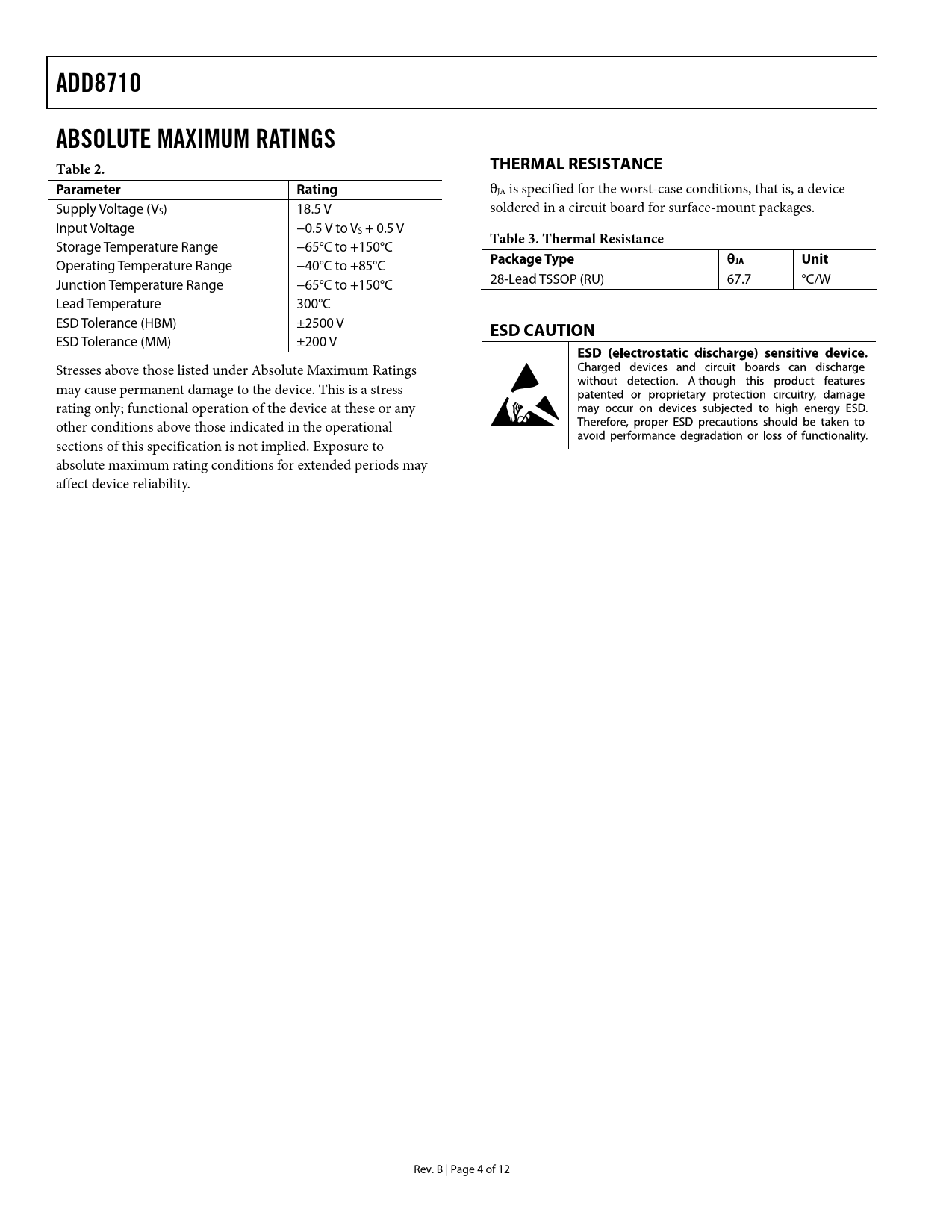

ADD8710. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter. Rating. Table 3. Thermal Resistance. Package Type. JA Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADD8710 ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Supply Voltage (VS) 18.5 V soldered in a circuit board for surface-mount packages. Input Voltage −0.5 V to VS + 0.5 V
Table 3. Thermal Resistance
Storage Temperature Range −65°C to +150°C
Package Type θ
Operating Temperature Range −40°C to +85°C
JA Unit
Junction Temperature Range −65°C to +150°C 28-Lead TSSOP (RU) 67.7 °C/W Lead Temperature 300°C ESD Tolerance (HBM) ±2500 V
ESD CAUTION
ESD Tolerance (MM) ±200 V Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. B | Page 4 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
