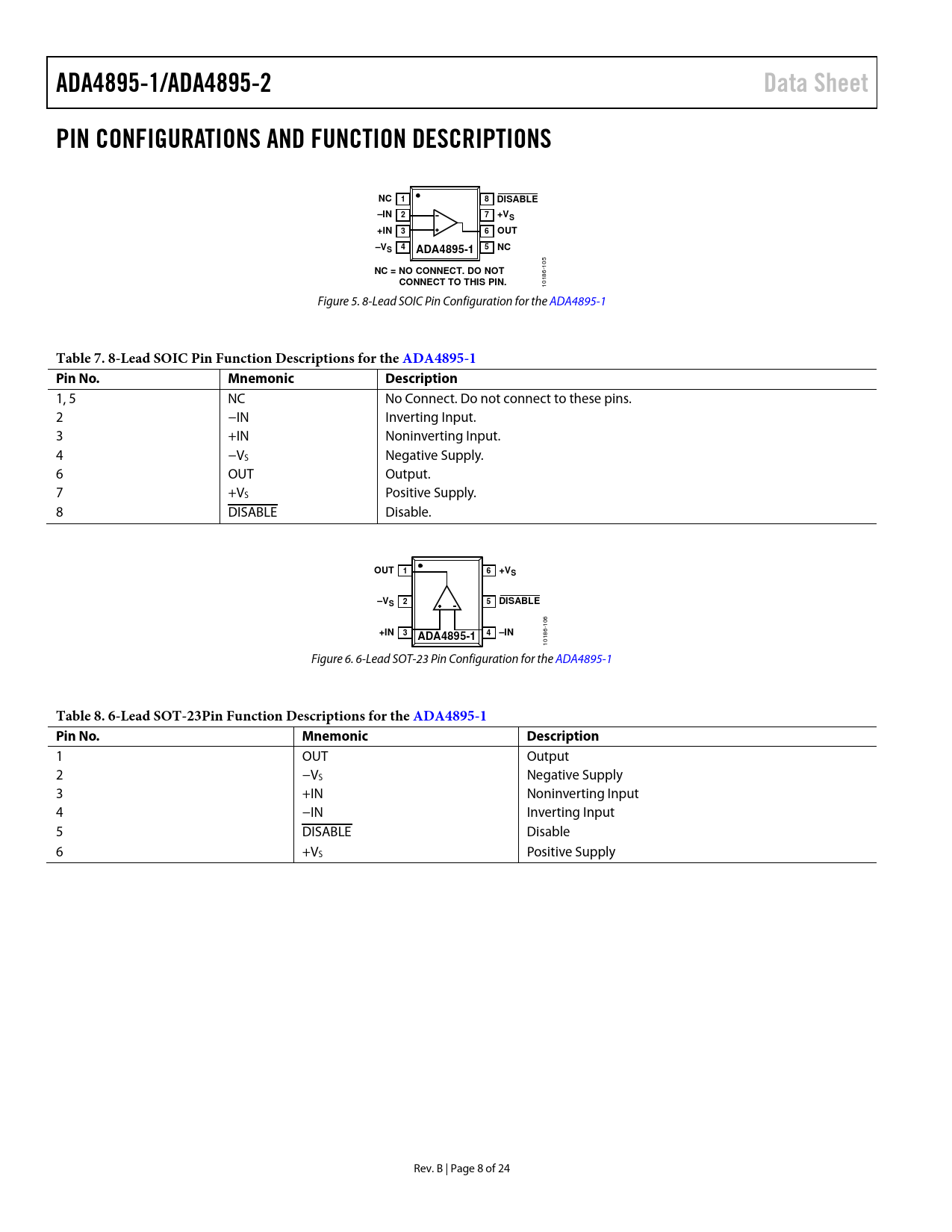

ADA4895-1/ADA4895-2. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. DISABLE. –IN. +VS. +IN. OUT. –VS 4. ADA4895-1
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADA4895-1/ADA4895-2 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS NC 1 8 DISABLE –IN 2 7 +VS +IN 3 6 OUT –VS 4 5 NC ADA4895-1
105
NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
10186- Figure 5. 8-Lead SOIC Pin Configuration for the ADA4895-1
Table 7. 8-Lead SOIC Pin Function Descriptions for the ADA4895-1 Pin No. Mnemonic Description
1, 5 NC No Connect. Do not connect to these pins. 2 −IN Inverting Input. 3 +IN Noninverting Input. 4 −VS Negative Supply. 6 OUT Output. 7 +VS Positive Supply. 8 DISABLE Disable.
OUT 1 6 +VS –VS 2 5 DISABLE
106
+IN 3 ADA4895-1 4 –IN
10186- Figure 6. 6-Lead SOT-23 Pin Configuration for the ADA4895-1
Table 8. 6-Lead SOT-23Pin Function Descriptions for the ADA4895-1 Pin No. Mnemonic Description
1 OUT Output 2 −VS Negative Supply 3 +IN Noninverting Input 4 −IN Inverting Input 5 DISABLE Disable 6 +VS Positive Supply Rev. B | Page 8 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS COMPANION PRODUCTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V (OR +10 V) SUPPLY ±2.5 V (OR +5 V) SUPPLY ±1.5 V (OR +3 V) SUPPLY ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION AMPLIFIER DESCRIPTION INPUT PROTECTION DISABLE OPERATION DC ERRORS BIAS CURRENT CANCELLATION NOISE CONSIDERATIONS APPLICATIONS INFORMATION USING THE ADA4895-1/ADA4895-2 AT A GAIN < +10 HIGH GAIN BANDWIDTH APPLICATION FEEDBACK CAPACITOR APPLICATION WIDEBAND PHOTOMULTIPLIER PREAMPLIFIER LAYOUT CONSIDERATIONS Ground Plane Power Supply Bypassing OUTLINE DIMENSIONS ORDERING GUIDE
