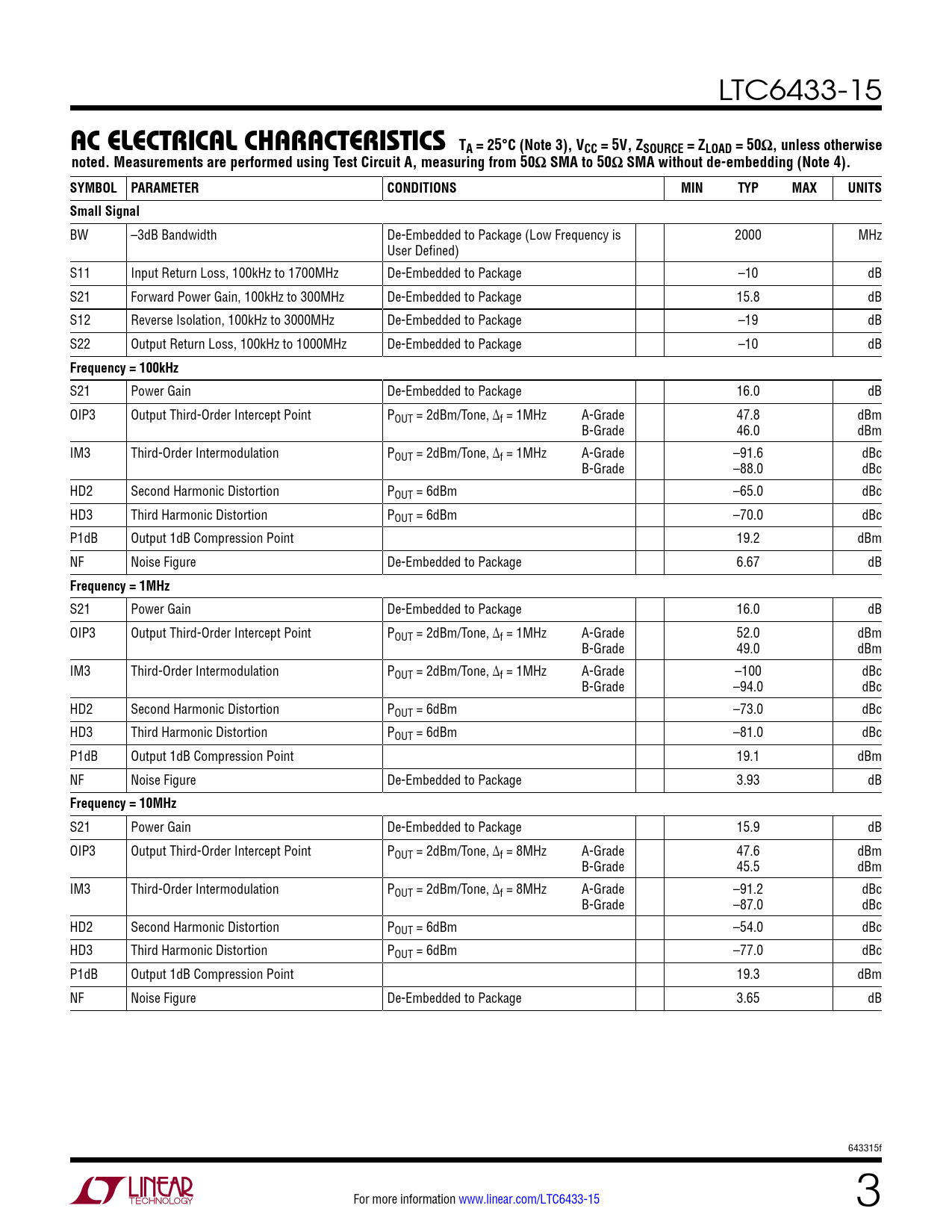

ac elecTrical characTerisTics. TA = 25°C (Note 3), VCC = 5V, ZSOURCE = ZLOAD = 50Ω, unless otherwise
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC6433-15
ac elecTrical characTerisTics TA = 25°C (Note 3), VCC = 5V, ZSOURCE = ZLOAD = 50Ω, unless otherwise noted. Measurements are performed using Test Circuit A, measuring from 50Ω SMA to 50Ω SMA without de-embedding (Note 4). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Small Signal
BW –3dB Bandwidth De-Embedded to Package (Low Frequency is 2000 MHz User Defined) S11 Input Return Loss, 100kHz to 1700MHz De-Embedded to Package –10 dB S21 Forward Power Gain, 100kHz to 300MHz De-Embedded to Package 15.8 dB S12 Reverse Isolation, 100kHz to 3000MHz De-Embedded to Package –19 dB S22 Output Return Loss, 100kHz to 1000MHz De-Embedded to Package –10 dB
Frequency = 100kHz
S21 Power Gain De-Embedded to Package 16.0 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz A-Grade 47.8 dBm B-Grade 46.0 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz A-Grade –91.6 dBc B-Grade –88.0 dBc HD2 Second Harmonic Distortion POUT = 6dBm –65.0 dBc HD3 Third Harmonic Distortion POUT = 6dBm –70.0 dBc P1dB Output 1dB Compression Point 19.2 dBm NF Noise Figure De-Embedded to Package 6.67 dB
Frequency = 1MHz
S21 Power Gain De-Embedded to Package 16.0 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz A-Grade 52.0 dBm B-Grade 49.0 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz A-Grade –100 dBc B-Grade –94.0 dBc HD2 Second Harmonic Distortion POUT = 6dBm –73.0 dBc HD3 Third Harmonic Distortion POUT = 6dBm –81.0 dBc P1dB Output 1dB Compression Point 19.1 dBm NF Noise Figure De-Embedded to Package 3.93 dB
Frequency = 10MHz
S21 Power Gain De-Embedded to Package 15.9 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 8MHz A-Grade 47.6 dBm B-Grade 45.5 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 8MHz A-Grade –91.2 dBc B-Grade –87.0 dBc HD2 Second Harmonic Distortion POUT = 6dBm –54.0 dBc HD3 Third Harmonic Distortion POUT = 6dBm –77.0 dBc P1dB Output 1dB Compression Point 19.3 dBm NF Noise Figure De-Embedded to Package 3.65 dB 643315f For more information www.linear.com/LTC6433-15 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information DC Electrical Characteristics AC Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit A Operation Applications Information S Parameters Package Description Related Parts Features Applications Typical Application Description Absolute Maximum Ratings Order Information DC Electrical Characteristics Pin Configuration AC Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit A Operation S Parameters Package Description Typical Application Related Parts
