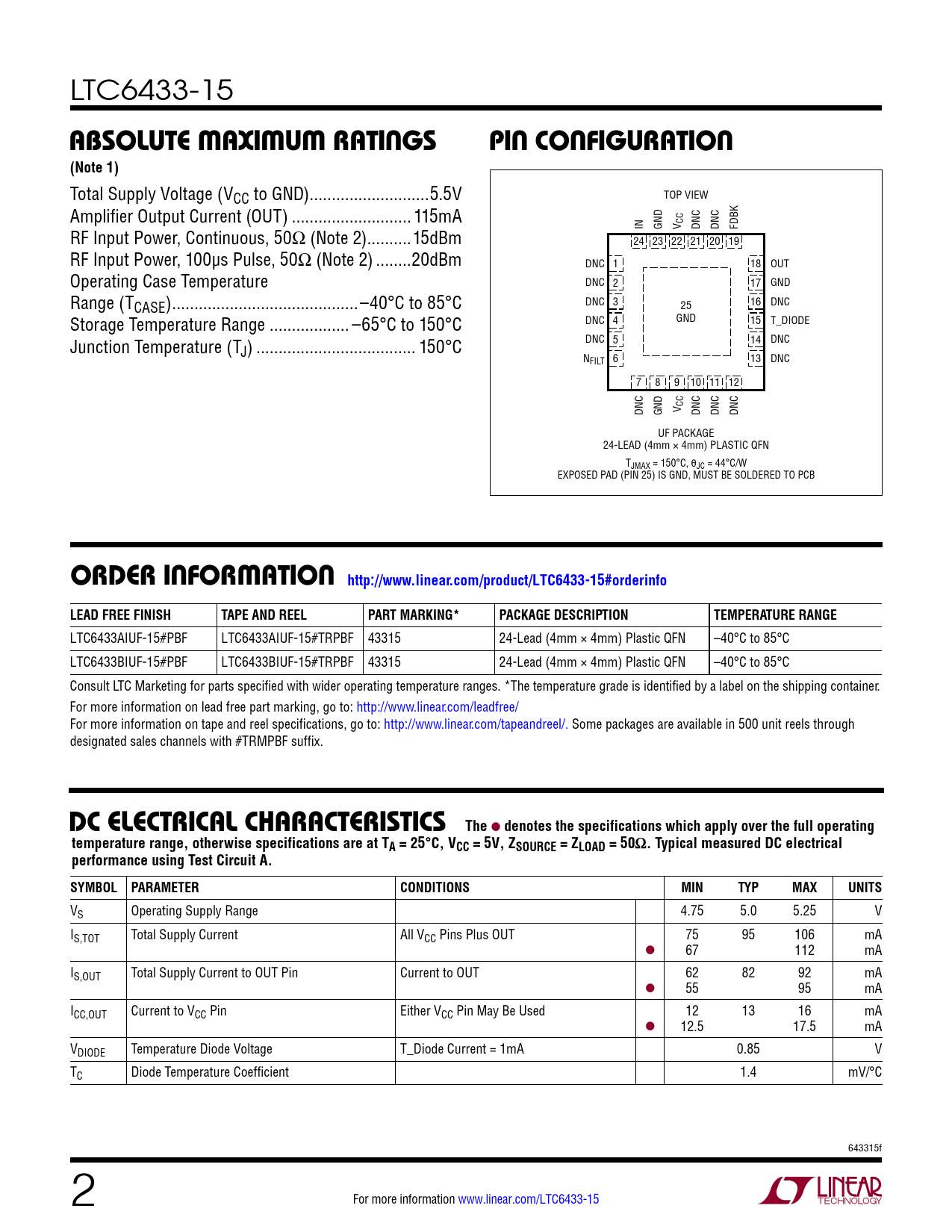

LTC6433-15
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
Total Supply Voltage (VCC to GND)...5.5V TOP VIEW Amplifier Output Current (OUT) ... 115mA IN GND V CC DNC DNC FDBK RF Input Power, Continuous, 50Ω (Note 2)..15dBm 24 23 22 21 20 19 RF Input Power, 100µs Pulse, 50Ω (Note 2) ..20dBm DNC 1 18 OUT Operating Case Temperature DNC 2 17 GND Range (TCASE) ..–40°C to 85°C DNC 3 25 16 DNC Storage Temperature Range .. –65°C to 150°C DNC 4 GND 15 T_DIODE Junction Temperature (T DNC 5 14 DNC J) .. 150°C NFILT 6 13 DNC 7 8 9 10 11 12 DNC GND V CC DNC DNC DNC UF PACKAGE 24-LEAD (4mm × 4mm) PLASTIC QFN TJMAX = 150°C, θJC = 44°C/W EXPOSED PAD (PIN 25) IS GND, MUST BE SOLDERED TO PCB
orDer inForMaTion http://www.linear.com/product/LTC6433-15#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC6433AIUF-15#PBF LTC6433AIUF-15#TRPBF 43315 24-Lead (4mm × 4mm) Plastic QFN –40°C to 85°C LTC6433BIUF-15#PBF LTC6433BIUF-15#TRPBF 43315 24-Lead (4mm × 4mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
Dc elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, VCC = 5V, ZSOURCE = ZLOAD = 50Ω. Typical measured DC electrical performance using Test Circuit A. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VS Operating Supply Range 4.75 5.0 5.25 V IS,TOT Total Supply Current All VCC Pins Plus OUT 75 95 106 mA l 67 112 mA IS,OUT Total Supply Current to OUT Pin Current to OUT 62 82 92 mA l 55 95 mA ICC,OUT Current to VCC Pin Either VCC Pin May Be Used 12 13 16 mA l 12.5 17.5 mA VDIODE Temperature Diode Voltage T_Diode Current = 1mA 0.85 V TC Diode Temperature Coefficient 1.4 mV/°C 643315f 2 For more information www.linear.com/LTC6433-15 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information DC Electrical Characteristics AC Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit A Operation Applications Information S Parameters Package Description Related Parts Features Applications Typical Application Description Absolute Maximum Ratings Order Information DC Electrical Characteristics Pin Configuration AC Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit A Operation S Parameters Package Description Typical Application Related Parts
