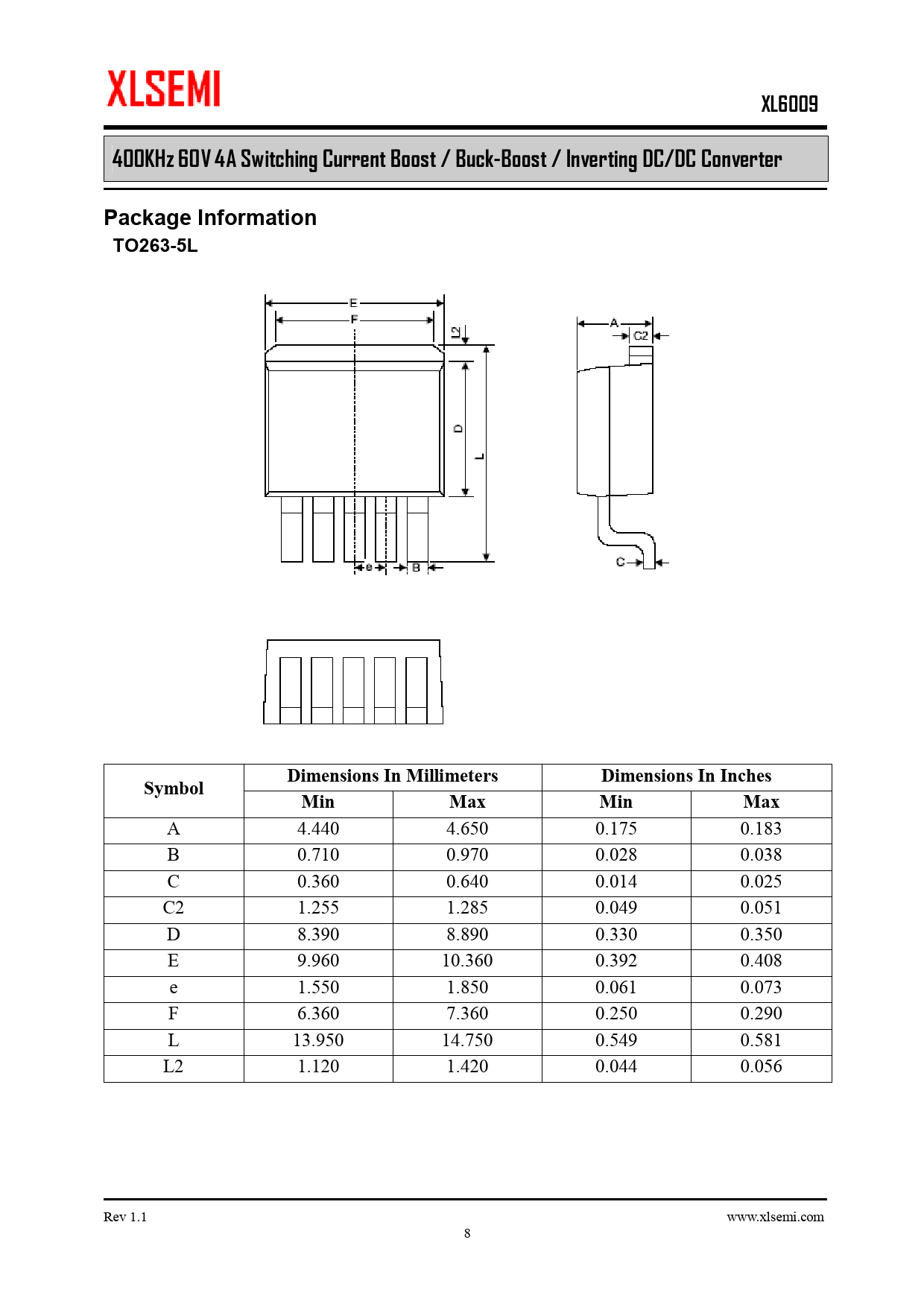

XL6009. 400KHz 60V 4A Switching Current Boost / Buck-Boost / Inverting DC/DC Converter. Package Information. TO263-5L
Versión de texto del documento
XL6009 400KHz 60V 4A Switching Current Boost / Buck-Boost / Inverting DC/DC Converter Package Information TO263-5L Dimensions In Millimeters Dimensions In Inches Symbol Min Max Min Max
A 4.440 4.650 0.175 0.183 B 0.710 0.970 0.028 0.038 C 0.360 0.640 0.014 0.025 C2 1.255 1.285 0.049 0.051 D 8.390 8.890 0.330 0.350 E 9.960 10.360 0.392 0.408 e 1.550 1.850 0.061 0.073 F 6.360 7.360 0.250 0.290 L 13.950 14.750 0.549 0.581 L2 1.120 1.420 0.044 0.056 Rev 1.1 www.xlsemi.com 8
A 4.440 4.650 0.175 0.183 B 0.710 0.970 0.028 0.038 C 0.360 0.640 0.014 0.025 C2 1.255 1.285 0.049 0.051 D 8.390 8.890 0.330 0.350 E 9.960 10.360 0.392 0.408 e 1.550 1.850 0.061 0.073 F 6.360 7.360 0.250 0.290 L 13.950 14.750 0.549 0.581 L2 1.120 1.420 0.044 0.056 Rev 1.1 www.xlsemi.com 8
