Datasheet XL6009 - 2
| Descripción | 400KHz 60V 4A Switching Current Boost / Buck-Boost / Inverting DC/DC Converter |
| Páginas / Página | 8 / 2 — XL6009. 400KHz 60V 4A Switching Current Boost / Buck-Boost / Inverting … |
| Formato / tamaño de archivo | PDF / 250 Kb |
| Idioma del documento | Inglés |
XL6009. 400KHz 60V 4A Switching Current Boost / Buck-Boost / Inverting DC/DC Converter. Pin Configurations. Pin Number
Versión de texto del documento

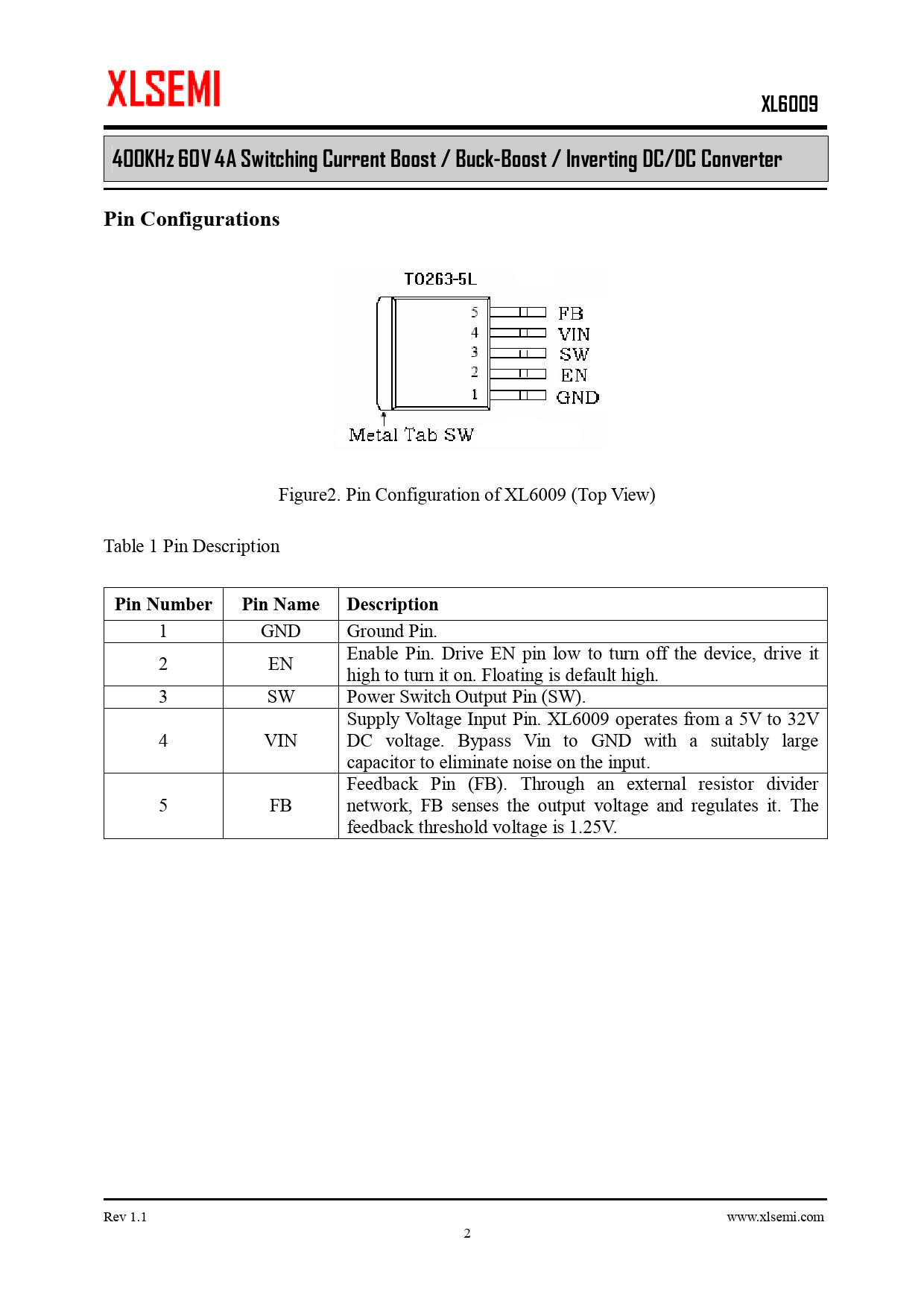

XL6009 400KHz 60V 4A Switching Current Boost / Buck-Boost / Inverting DC/DC Converter Pin Configurations
Figure2. Pin Configuration of XL6009 (Top View) Table 1 Pin Description
Pin Number Pin Name Description
1 GND Ground Pin. Enable Pin. Drive EN pin low to turn off the device, drive it 2 EN high to turn it on. Floating is default high. 3 SW Power Switch Output Pin (SW). Supply Voltage Input Pin. XL6009 operates from a 5V to 32V 4 VIN DC voltage. Bypass Vin to GND with a suitably large capacitor to eliminate noise on the input. Feedback Pin (FB). Through an external resistor divider 5 FB network, FB senses the output voltage and regulates it. The feedback threshold voltage is 1.25V. Rev 1.1 www.xlsemi.com 2
