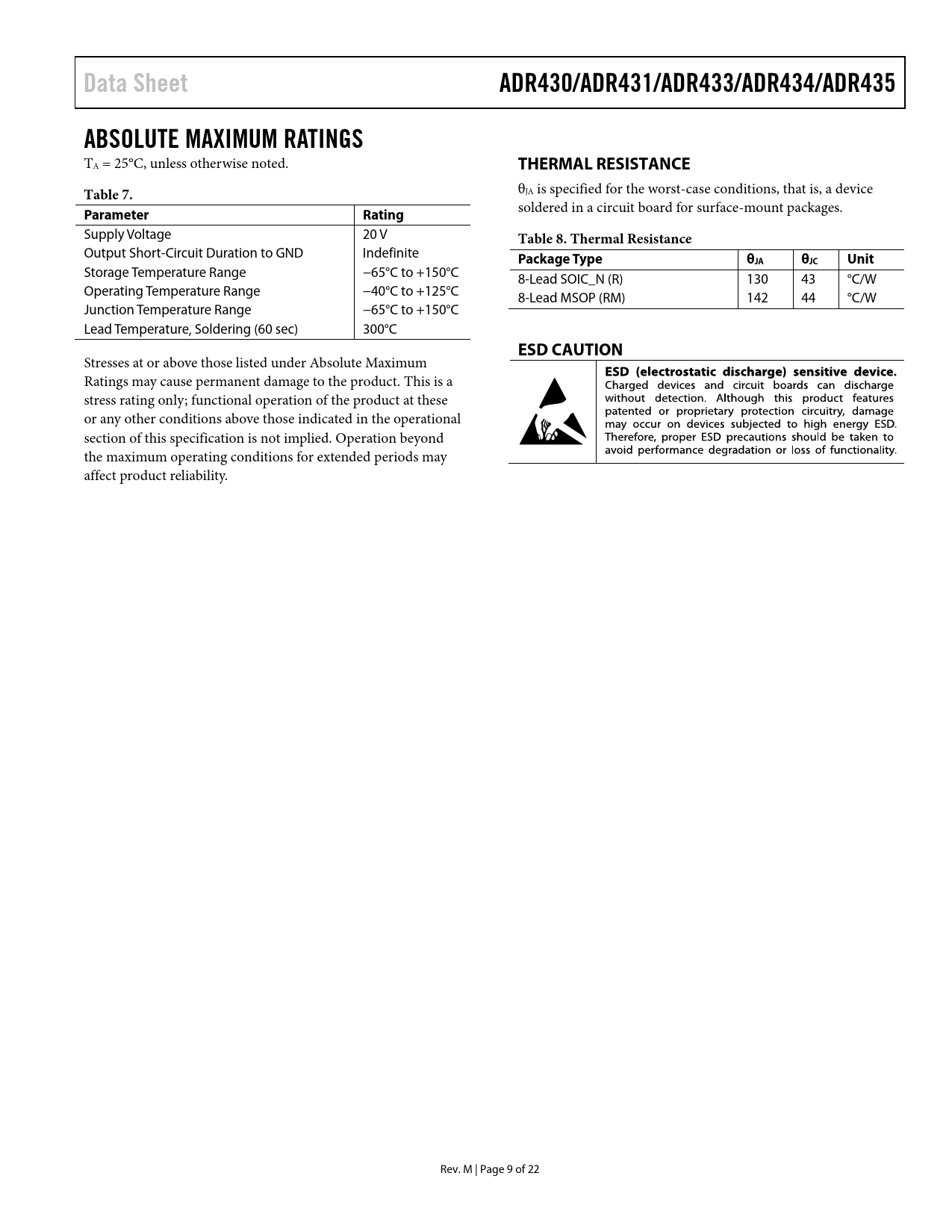

Data SheetADR430/ADR431/ADR433/ADR434/ADR435ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise noted. THERMAL RESISTANCETable 7. θJA is specified for the worst-case conditions, that is, a device soldered in a circuit board for surface-mount packages. Parameter Rating Supply Voltage 20 V Table 8. Thermal Resistance Output Short-Circuit Duration to GND Indefinite Package TypeθJAθJC Unit Storage Temperature Range −65°C to +150°C 8-Lead SOIC_N (R) 130 43 °C/W Operating Temperature Range −40°C to +125°C 8-Lead MSOP (RM) 142 44 °C/W Junction Temperature Range −65°C to +150°C Lead Temperature, Soldering (60 sec) 300°C ESD CAUTION Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. M | Page 9 of 22 Document Outline Features Applications Pin Configurations General Description Table of Contents Revision History Specifications ADR430 Electrical Characteristics ADR431 Electrical Characteristics ADR433 Electrical Characteristics ADR434 Electrical Characteristics ADR435 Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Theory of Operation Basic Voltage Reference Connections Noise Performance High Frequency Noise Turn-On Time Applications Information Output Adjustment Reference for Converters in Optical Network Control Circuits High Voltage Floating Current Source Kelvin Connection Dual Polarity References Programmable Current Source Programmable DAC Reference Voltage Precision Voltage Reference for Data Converters Precision Boosted Output Regulator Outline Dimensions Ordering Guide
