TLV431 , TLV431A, TLV431B
SLVS139W – JULY 1996 – REVISED MARCH 2018

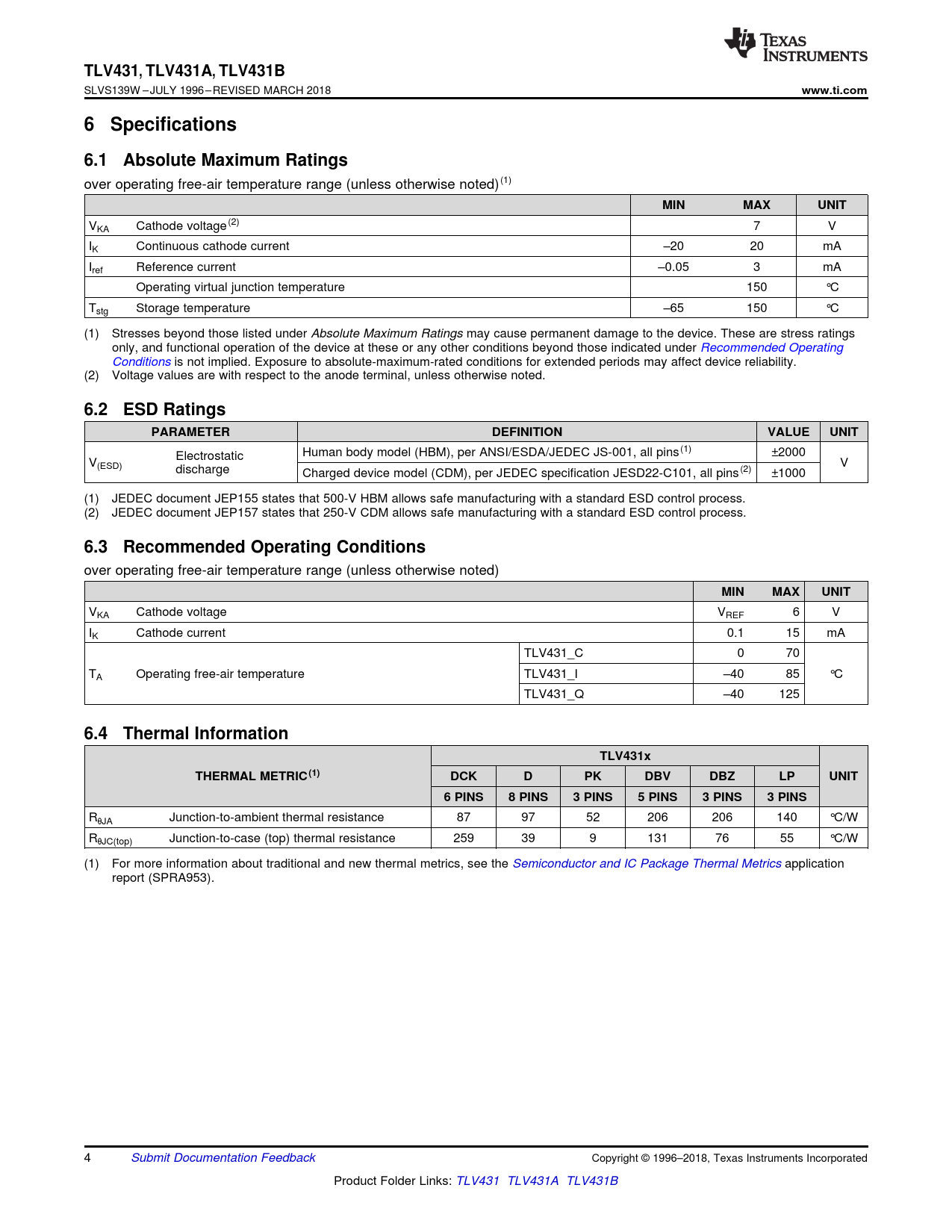

www.ti.com 6 Specifications 6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VKA Cathode voltage(2) 7 V IK Continuous cathode current –20 20 mA Iref Reference current –0.05 3 mA Operating virtual junction temperature 150 °C Tstg Storage temperature –65 150 °C (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. (2) Voltage values are with respect to the anode terminal, unless otherwise noted.
6.2 ESD Ratings PARAMETER DEFINITION VALUE UNIT
Electrostatic Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) ±2000 V(ESD) V discharge Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) ±1000 (1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. (2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
VKA Cathode voltage VREF 6 V IK Cathode current 0.1 15 mA TLV431_C 0 70 TA Operating free-air temperature TLV431_I –40 85 °C TLV431_Q –40 125
6.4 Thermal Information TLV431x THERMAL METRIC(1) DCK D PK DBV DBZ LP UNIT 6 PINS 8 PINS 3 PINS 5 PINS 3 PINS 3 PINS
RθJA Junction-to-ambient thermal resistance 87 97 52 206 206 140 °C/W RθJC(top) Junction-to-case (top) thermal resistance 259 39 9 131 76 55 °C/W (1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report (SPRA953). 4 Submit Documentation Feedback Copyright © 1996–2018, Texas Instruments Incorporated Product Folder Links: TLV431 TLV431A TLV431B Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information 6.5 Electrical Characteristics for TLV431 6.6 Electrical Characteristics for TLV431A 6.7 Electrical Characteristics for TLV431B 6.8 Typical Characteristics 7 Parameter Measurement Information 8 Detailed Description 8.1 Overview 8.2 Functional Block Diagram 8.3 Feature Description 8.4 Device Functional Modes 8.4.1 Open Loop (Comparator) 8.4.2 Closed Loop 9 Applications and Implementation 9.1 Application Information 9.2 Typical Applications 9.2.1 Comparator With Integrated Reference (Open Loop) 9.2.1.1 Design Requirements 9.2.1.2 Detailed Design Procedure 9.2.1.3 Application Curves 9.2.2 Shunt Regulator/Reference 9.2.2.1 Design Requirements 9.2.2.2 Detailed Design Procedure 9.2.2.3 Application Curve 10 Power Supply Recommendations 11 Layout 11.1 Layout Guidelines 11.2 Layout Example 12 Device and Documentation Support 12.1 Documentation Support 12.1.1 Related Documentation 12.2 Related Links 12.3 Receiving Notification of Documentation Updates 12.4 Community Resources 12.5 Trademarks 12.6 Electrostatic Discharge Caution 12.7 Glossary 13 Mechanical, Packaging, and Orderable Information
