Datasheet LM185-1.2, LM285-1.2, LM385-1.2 (Texas Instruments) - 4
| Fabricante | Texas Instruments |
| Descripción | Micropower Voltage Reference Diode |
| Páginas / Página | 28 / 4 — LM185-1.2-N,. LM285-1.2-N. , LM385-1.2-N. www.ti.com. TYPICAL PERFORMANCE … |
| Revisión | E |
| Formato / tamaño de archivo | PDF / 1.5 Mb |
| Idioma del documento | Inglés |
LM185-1.2-N,. LM285-1.2-N. , LM385-1.2-N. www.ti.com. TYPICAL PERFORMANCE CHARACTERISTICS. Reverse Characteristics. Figure 5
Línea de modelo para esta hoja de datos
Versión de texto del documento
LM185-1.2-N, LM285-1.2-N , LM385-1.2-N
SNVS742E – JANUARY 2000 – REVISED APRIL 2013

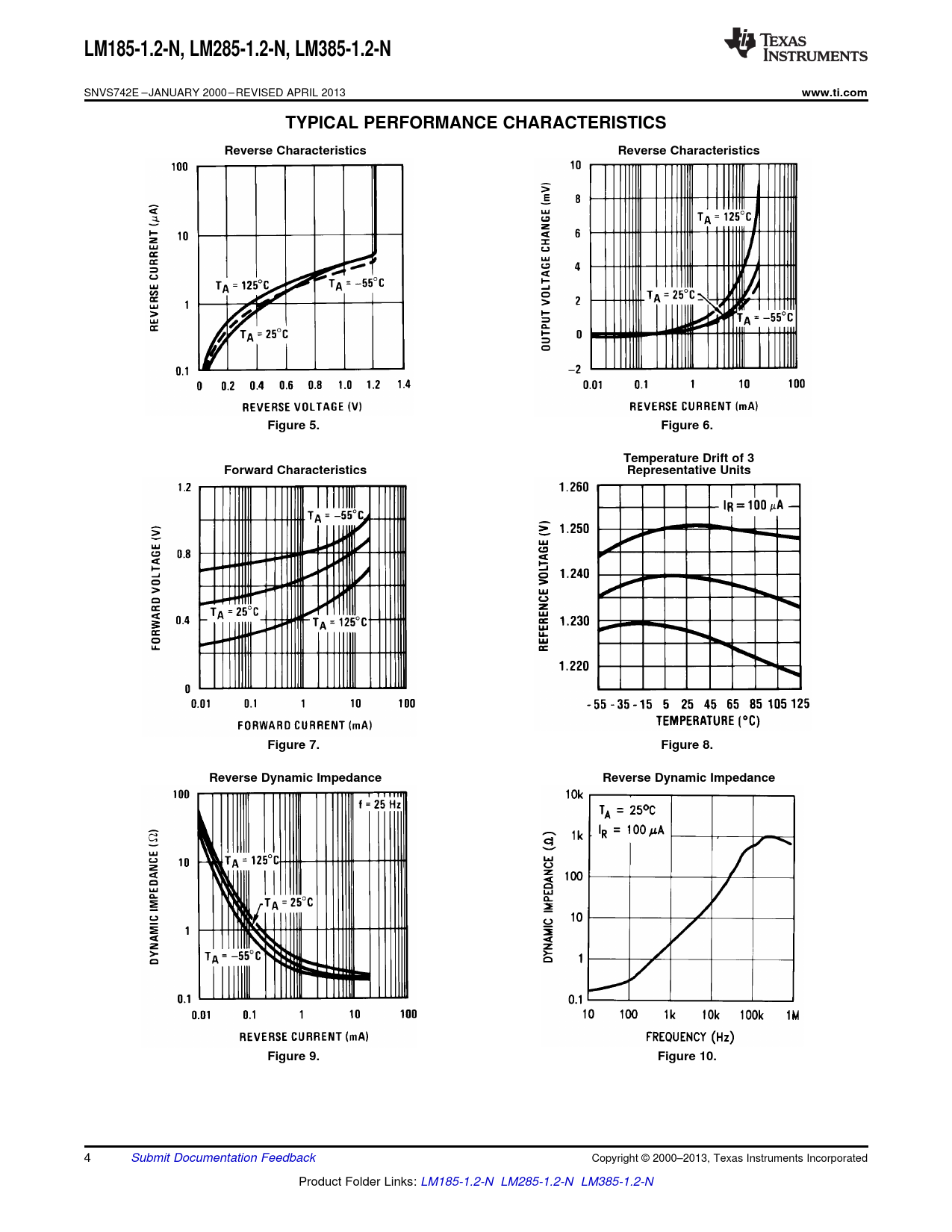

www.ti.com TYPICAL PERFORMANCE CHARACTERISTICS Reverse Characteristics Reverse Characteristics Figure 5. Figure 6. Temperature Drift of 3 Forward Characteristics Representative Units Figure 7. Figure 8. Reverse Dynamic Impedance Reverse Dynamic Impedance Figure 9. Figure 10.
4 Submit Documentation Feedback Copyright © 2000–2013, Texas Instruments Incorporated Product Folder Links: LM185-1.2-N LM285-1.2-N LM385-1.2-N Document Outline FEATURES DESCRIPTION CONNECTION DIAGRAM ABSOLUTE MAXIMUM RATINGS ELECTRICAL CHARACTERISTICS THERMAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS TYPICAL APPLICATIONS METER THERMOMETERS SCHEMATIC DIAGRAM Revision History
