Datasheet LM4780, LM4780TABD (Texas Instruments) - 3
| Fabricante | Texas Instruments |
| Descripción | Overture Audio Power Amplifier Series Stereo 60W, Mono 120W Audio Power Amplifier with Mute |
| Páginas / Página | 31 / 3 — LM4780. , LM4780TABD. www.ti.com. Connection Diagram. Figure 2. TO-220 … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 1.4 Mb |
| Idioma del documento | Inglés |
LM4780. , LM4780TABD. www.ti.com. Connection Diagram. Figure 2. TO-220 Plastic Package (Top View)(1). See Package Number NDM0027A
Línea de modelo para esta hoja de datos
Versión de texto del documento
LM4780 , LM4780TABD www.ti.com
SNAS193B – JULY 2003 – REVISED APRIL 2013

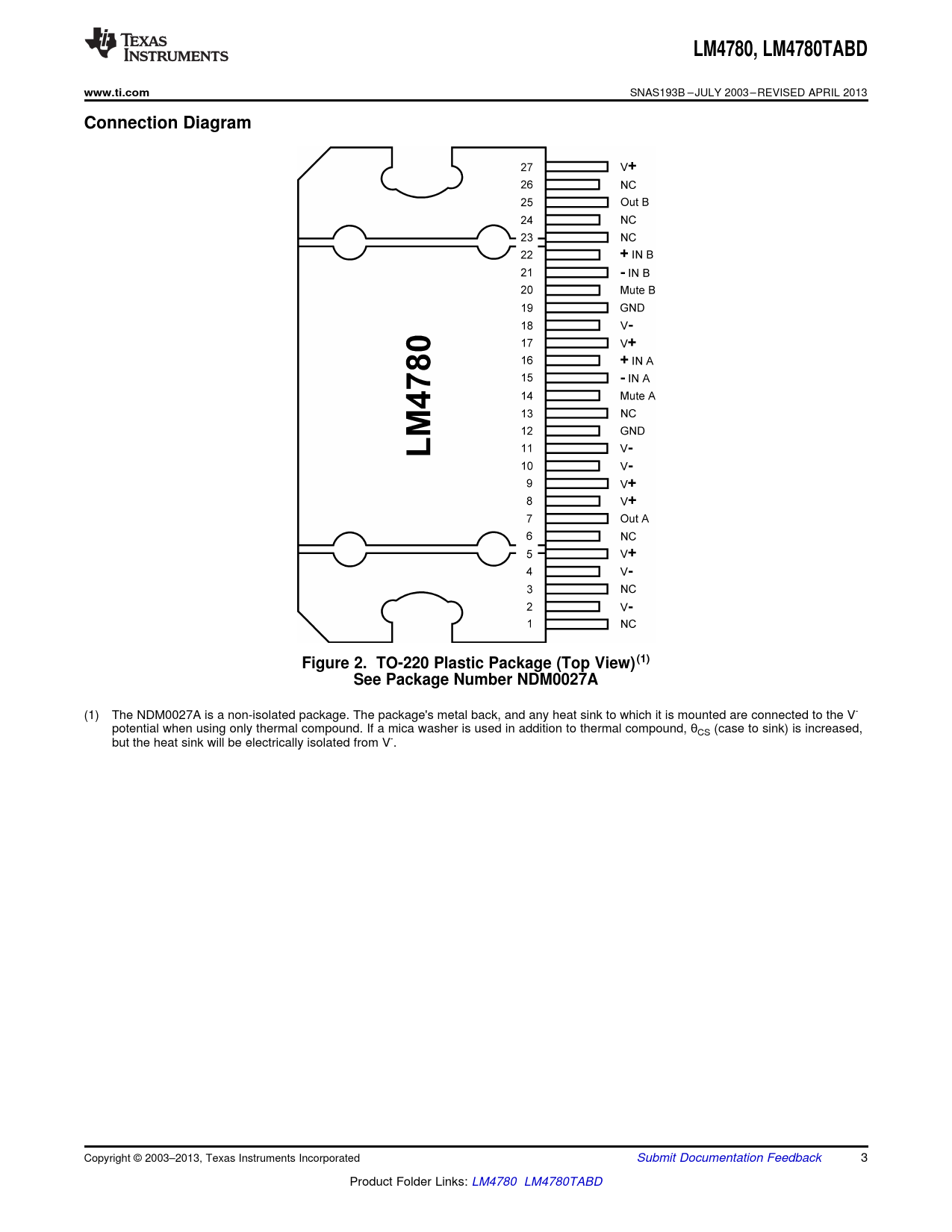

Connection Diagram Figure 2. TO-220 Plastic Package (Top View)(1) See Package Number NDM0027A
(1) The NDM0027A is a non-isolated package. The package's metal back, and any heat sink to which it is mounted are connected to the V- potential when using only thermal compound. If a mica washer is used in addition to thermal compound, θCS (case to sink) is increased, but the heat sink will be electrically isolated from V-. Copyright © 2003–2013, Texas Instruments Incorporated Submit Documentation Feedback 3 Product Folder Links: LM4780 LM4780TABD Document Outline Features Applications Key Specifications Description Typical Application Connection Diagram Absolute Maximum Ratings Operating Ratings Electrical Characteristics Bridged Amplifier Application Circuit Parallel Amplifier Application Circuit Single Supply Application Circuit Auxiliary Amplifier Application Circuit External Components Description Optional External Component Interaction Typical Performance Characteristics Application Information MUTE MODE UNDER-VOLTAGE PROTECTION OVER-VOLTAGE PROTECTION SPiKe PROTECTION THERMAL PROTECTION DETERMlNlNG MAXIMUM POWER DISSIPATION DETERMINING THE CORRECT HEAT SINK SUPPLY BYPASSING BRIDGED AMPLIFIER APPLICATION PARALLEL AMPLIFIER APPLICATION SINGLE-SUPPLY AMPLIFIER APPLICATION CLICKS AND POPS PROPER SELECTION OF EXTERNAL COMPONENTS HIGH PERFORMANCE CONSIDERATIONS SIGNAL-TO-NOISE RATIO LEAD INDUCTANCE PHYSICAL IC MOUNTING CONSIDERATIONS LAYOUT, GROUND LOOPS AND STABILITY REACTIVE LOADING INVERTING AMPLIFIER APPLICATION LM4780 REFERENCE BOARD ARTWORK Bill Of Materials For Reference Pcb Revision History Page 1
