Datasheet UPS140 (Microsemi) - 2
| Fabricante | Microsemi |
| Descripción | Surface Mount 1 A Schottky Rectifier |
| Páginas / Página | 2 / 2 — UPS140. Electrical Characteristics. Maximum Instantaneous Forward Voltage … |
| Formato / tamaño de archivo | PDF / 45 Kb |
| Idioma del documento | Inglés |

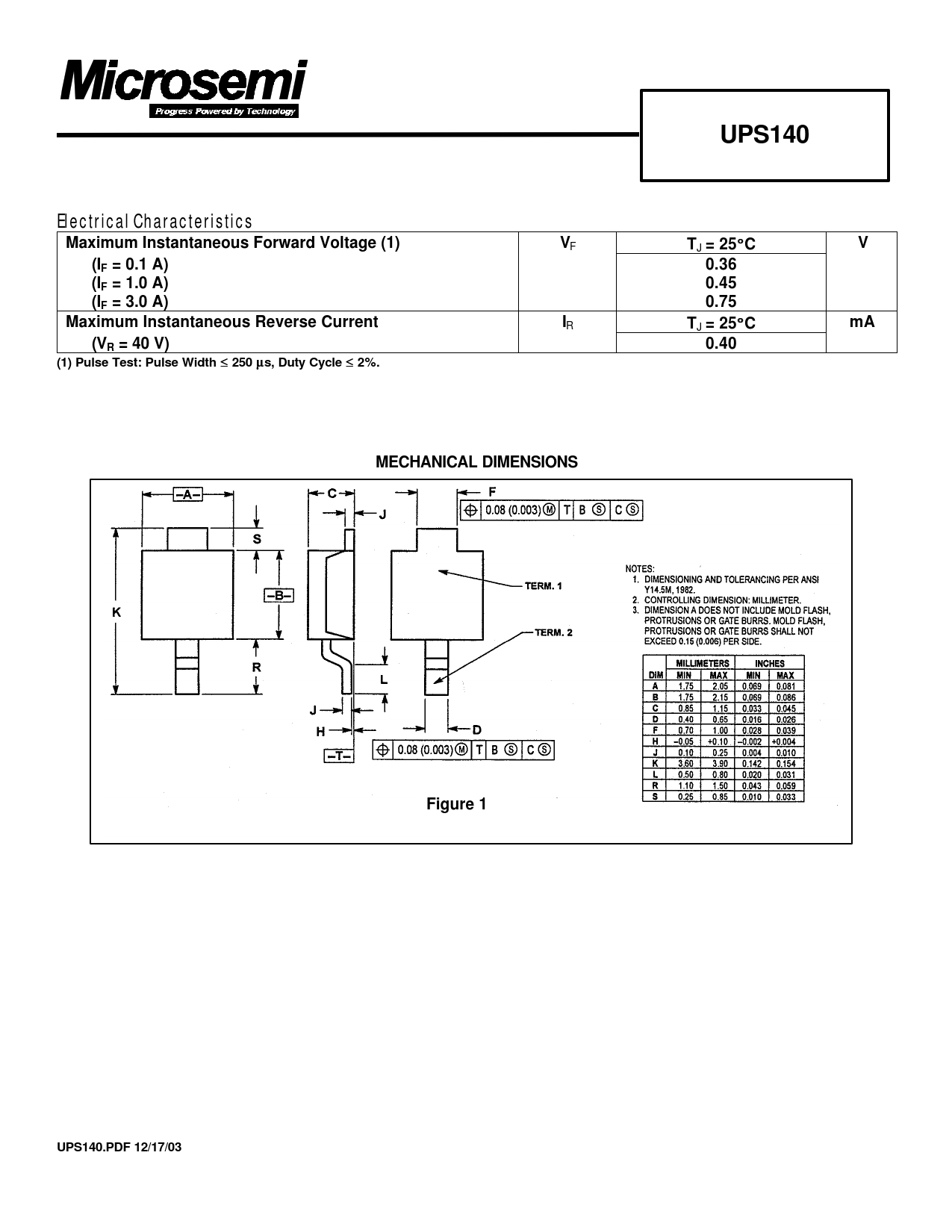

UPS140. Electrical Characteristics. Maximum Instantaneous Forward Voltage (1). (IF = 0.1 A). (IF = 1.0 A). (IF = 3.0 A)
Versión de texto del documento
UPS140
Electrical Characteristics
Maximum Instantaneous Forward Voltage (1)
(IF = 0.1 A)
(IF = 1.0 A)
(IF = 3.0 A)
Maximum Instantaneous Reverse Current
(VR = 40 V) VF IR (1) Pulse Test: Pulse Width ≤ 250 µ s, Duty Cycle ≤ 2%. MECHANICAL DIMENSIONS Figure 1 UPS140.PDF 12/17/03 TJ = 25°°C
0.36
0.45
0.75
TJ = 25°°C
0.40 V mA
