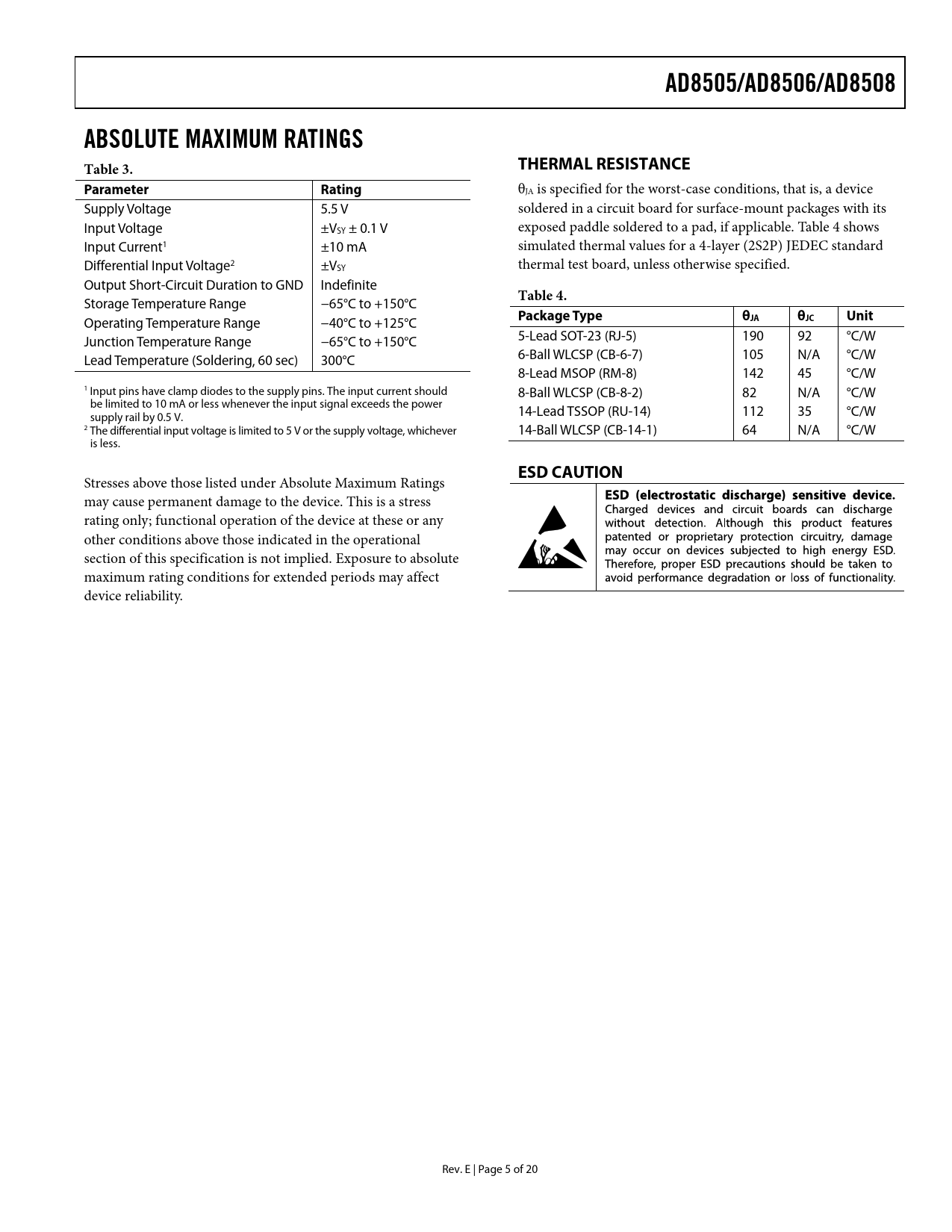

AD8505/AD8506/AD8508. ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE. Parameter Rating. Table 4. Package Type. θJC Unit
Versión de texto del documento
link to page 5 link to page 5 link to page 5
AD8505/AD8506/AD8508 ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Supply Voltage 5.5 V soldered in a circuit board for surface-mount packages with its Input Voltage ±VSY ± 0.1 V exposed paddle soldered to a pad, if applicable. Table 4 shows Input Current1 ±10 mA simulated thermal values for a 4-layer (2S2P) JEDEC standard Differential Input Voltage2 ±VSY thermal test board, unless otherwise specified. Output Short-Circuit Duration to GND Indefinite
Table 4.
Storage Temperature Range −65°C to +150°C
Package Type θ
Operating Temperature Range −40°C to +125°C
JA θJC Unit
Junction Temperature Range −65°C to +150°C 5-Lead SOT-23 (RJ-5) 190 92 °C/W Lead Temperature (Soldering, 60 sec) 300°C 6-Ball WLCSP (CB-6-7) 105 N/A °C/W 8-Lead MSOP (RM-8) 142 45 °C/W 1 Input pins have clamp diodes to the supply pins. The input current should 8-Ball WLCSP (CB-8-2) 82 N/A °C/W be limited to 10 mA or less whenever the input signal exceeds the power 14-Lead TSSOP (RU-14) 112 35 °C/W supply rail by 0.5 V. 2 The differential input voltage is limited to 5 V or the supply voltage, whichever 14-Ball WLCSP (CB-14-1) 64 N/A °C/W is less.
ESD CAUTION
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. E | Page 5 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—1.8 V OPERATION ELECTRICAL CHARACTERISTICS—5 V OPERATION ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION PULSE OXIMETER CURRENT SOURCE FOUR-POLE, LOW-PASS BUTTERWORTH FILTER FOR GLUCOSE MONITOR OUTLINE DIMENSIONS ORDERING GUIDE
