Páginas / Página20 / 4 — AD8505/AD8506/AD8508. ELECTRICAL CHARACTERISTICS—5 V OPERATION. Table 2. …
RevisiónF
Formato / tamaño de archivoPDF / 665 Kb
Idioma del documentoInglés

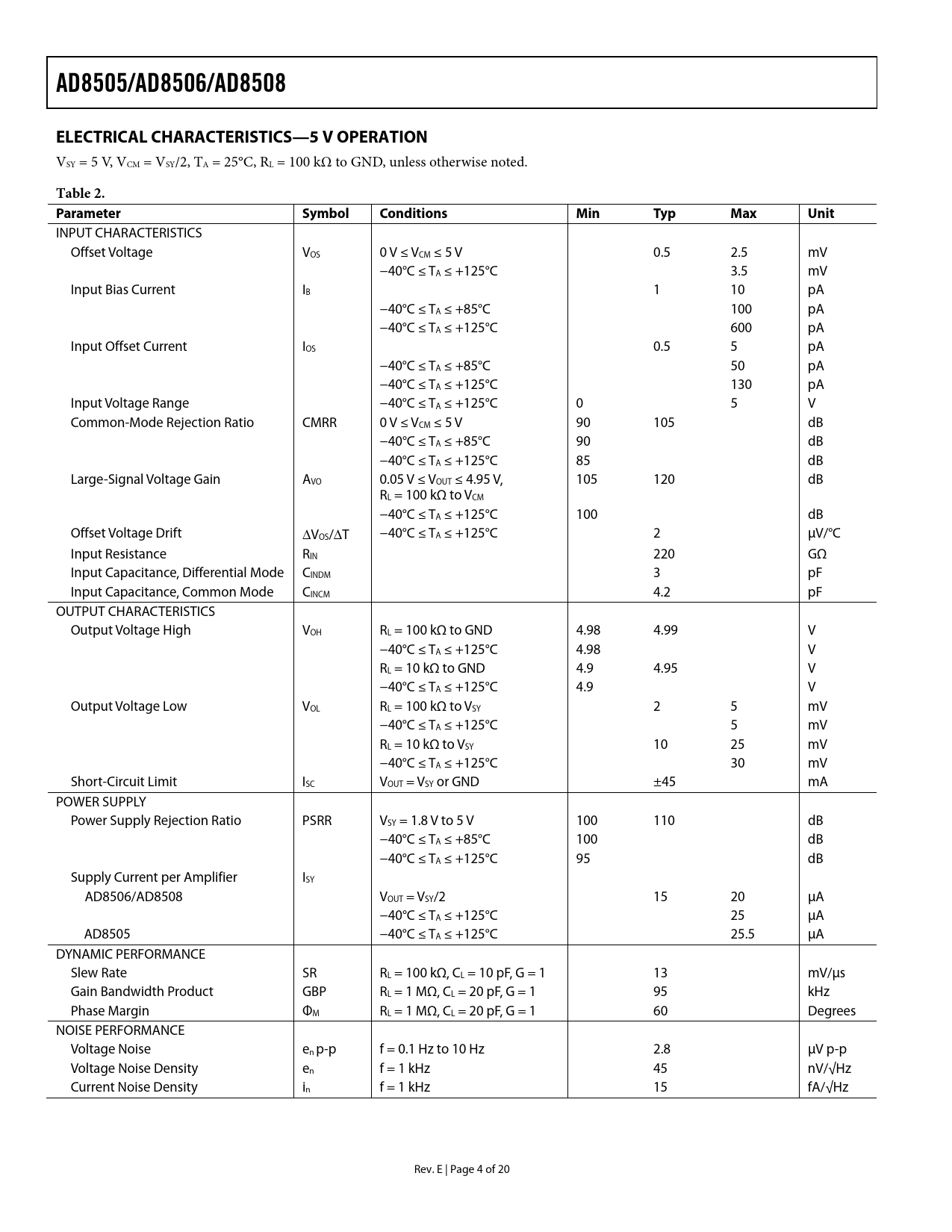

AD8505/AD8506/AD8508. ELECTRICAL CHARACTERISTICS—5 V OPERATION. Table 2. Parameter Symbol. Conditions. Min. Typ. Max. Unit

AD8505/AD8506/AD8508 ELECTRICAL CHARACTERISTICS—5 V OPERATION Table 2 Parameter Symbol Conditions Min Typ Max Unit

Versión de texto del documento

AD8505/AD8506/AD8508 ELECTRICAL CHARACTERISTICS—5 V OPERATION
VSY = 5 V, VCM = VSY/2, TA = 25°C, RL = 100 kΩ to GND, unless otherwise noted.
Table 2. Parameter Symbol Conditions Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS 0 V ≤ VCM ≤ 5 V 0.5 2.5 mV −40°C ≤ TA ≤ +125°C 3.5 mV Input Bias Current IB 1 10 pA −40°C ≤ TA ≤ +85°C 100 pA −40°C ≤ TA ≤ +125°C 600 pA Input Offset Current IOS 0.5 5 pA −40°C ≤ TA ≤ +85°C 50 pA −40°C ≤ TA ≤ +125°C 130 pA Input Voltage Range −40°C ≤ TA ≤ +125°C 0 5 V Common-Mode Rejection Ratio CMRR 0 V ≤ VCM ≤ 5 V 90 105 dB −40°C ≤ TA ≤ +85°C 90 dB −40°C ≤ TA ≤ +125°C 85 dB Large-Signal Voltage Gain AVO 0.05 V ≤ VOUT ≤ 4.95 V, 105 120 dB RL = 100 kΩ to VCM −40°C ≤ TA ≤ +125°C 100 dB Offset Voltage Drift ΔVOS/ΔT −40°C ≤ TA ≤ +125°C 2 μV/°C Input Resistance RIN 220 GΩ Input Capacitance, Differential Mode CINDM 3 pF Input Capacitance, Common Mode CINCM 4.2 pF OUTPUT CHARACTERISTICS Output Voltage High VOH RL = 100 kΩ to GND 4.98 4.99 V −40°C ≤ TA ≤ +125°C 4.98 V RL = 10 kΩ to GND 4.9 4.95 V −40°C ≤ TA ≤ +125°C 4.9 V Output Voltage Low VOL RL = 100 kΩ to VSY 2 5 mV −40°C ≤ TA ≤ +125°C 5 mV RL = 10 kΩ to VSY 10 25 mV −40°C ≤ TA ≤ +125°C 30 mV Short-Circuit Limit ISC VOUT = VSY or GND ±45 mA POWER SUPPLY Power Supply Rejection Ratio PSRR VSY = 1.8 V to 5 V 100 110 dB −40°C ≤ TA ≤ +85°C 100 dB −40°C ≤ TA ≤ +125°C 95 dB Supply Current per Amplifier ISY AD8506/AD8508 VOUT = VSY/2 15 20 μA −40°C ≤ TA ≤ +125°C 25 μA AD8505 −40°C ≤ TA ≤ +125°C 25.5 μA DYNAMIC PERFORMANCE Slew Rate SR RL = 100 kΩ, CL = 10 pF, G = 1 13 mV/μs Gain Bandwidth Product GBP RL = 1 MΩ, CL = 20 pF, G = 1 95 kHz Phase Margin ΦM RL = 1 MΩ, CL = 20 pF, G = 1 60 Degrees NOISE PERFORMANCE Voltage Noise en p-p f = 0.1 Hz to 10 Hz 2.8 μV p-p Voltage Noise Density en f = 1 kHz 45 nV/√Hz Current Noise Density in f = 1 kHz 15 fA/√Hz Rev. E | Page 4 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—1.8 V OPERATION ELECTRICAL CHARACTERISTICS—5 V OPERATION ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION PULSE OXIMETER CURRENT SOURCE FOUR-POLE, LOW-PASS BUTTERWORTH FILTER FOR GLUCOSE MONITOR OUTLINE DIMENSIONS ORDERING GUIDE
