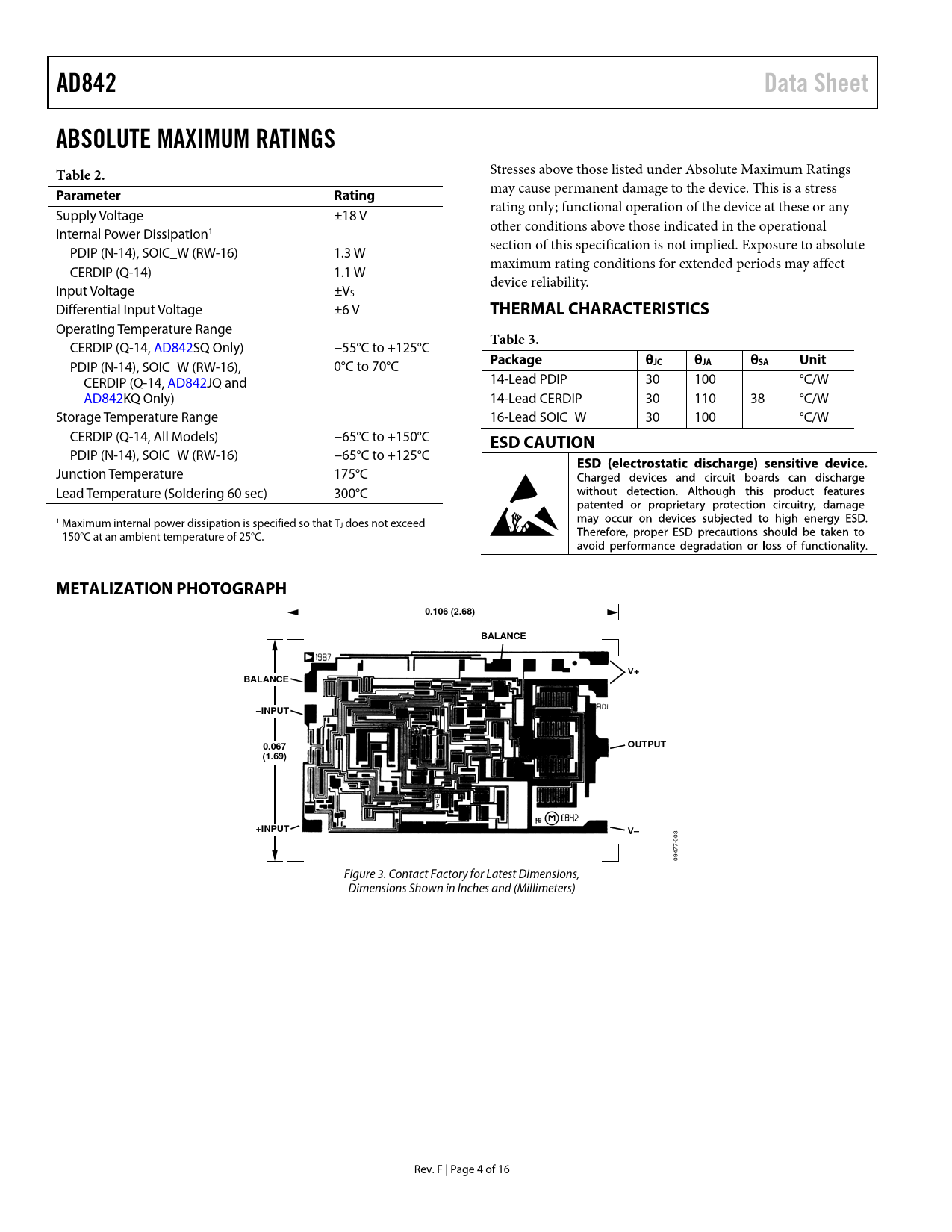

AD842 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage ±18 V rating only; functional operation of the device at these or any other conditions above those indicated in the operational Internal Power Dissipation1 section of this specification is not implied. Exposure to absolute PDIP (N-14), SOIC_W (RW-16) 1.3 W maximum rating conditions for extended periods may affect CERDIP (Q-14) 1.1 W device reliability. Input Voltage ±VS Differential Input Voltage ±6 V
THERMAL CHARACTERISTICS
Operating Temperature Range CERDIP (Q-14, AD842SQ Only) −55°C to +125°C
Table 3.
PDIP (N-14), SOIC_W (RW-16), 0°C to 70°C
Package θJC θJA θSA Unit
CERDIP (Q-14, AD842JQ and 14-Lead PDIP 30 100 °C/W AD842KQ Only) 14-Lead CERDIP 30 110 38 °C/W Storage Temperature Range 16-Lead SOIC_W 30 100 °C/W CERDIP (Q-14, All Models) −65°C to +150°C
ESD CAUTION
PDIP (N-14), SOIC_W (RW-16) −65°C to +125°C Junction Temperature 175°C Lead Temperature (Soldering 60 sec) 300°C 1 Maximum internal power dissipation is specified so that TJ does not exceed 150°C at an ambient temperature of 25°C.
METALIZATION PHOTOGRAPH 0.106 (2.68) BALANCE V+ BALANCE –INPUT OUTPUT 0.067 (1.69) +INPUT V–
003 09477- Figure 3. Contact Factory for Latest Dimensions, Dimensions Shown in Inches and (Millimeters) Rev. F | Page 4 of 16 Document Outline Features Applications Connection Diagrams General Description Product Highlights Table of Contents Revision History Specifications Electrical Characteristics—±15 V Operation Absolute Maximum Ratings Thermal Characteristics ESD Caution Metalization Photograph Typical Performance Characteristics Theory of Operation Offset Nulling Settling Time Grounding and Bypassing Capacitive Load Driving Ability Using a Heat Sink Terminated Line Driver Overdrive Recovery Outline Dimensions Ordering Guide
