Datasheet Si7611DN (Vishay) - 7
| Fabricante | Vishay |
| Descripción | P-Channel 40-V (D-S) MOSFET |
| Páginas / Página | 13 / 7 — Package Information. PowerPAK® 1212, (Single/Dual). MILLIMETERS. INCHES. … |
| Formato / tamaño de archivo | PDF / 579 Kb |
| Idioma del documento | Inglés |
Package Information. PowerPAK® 1212, (Single/Dual). MILLIMETERS. INCHES. DIM. MIN. MAX
Línea de modelo para esta hoja de datos
Versión de texto del documento

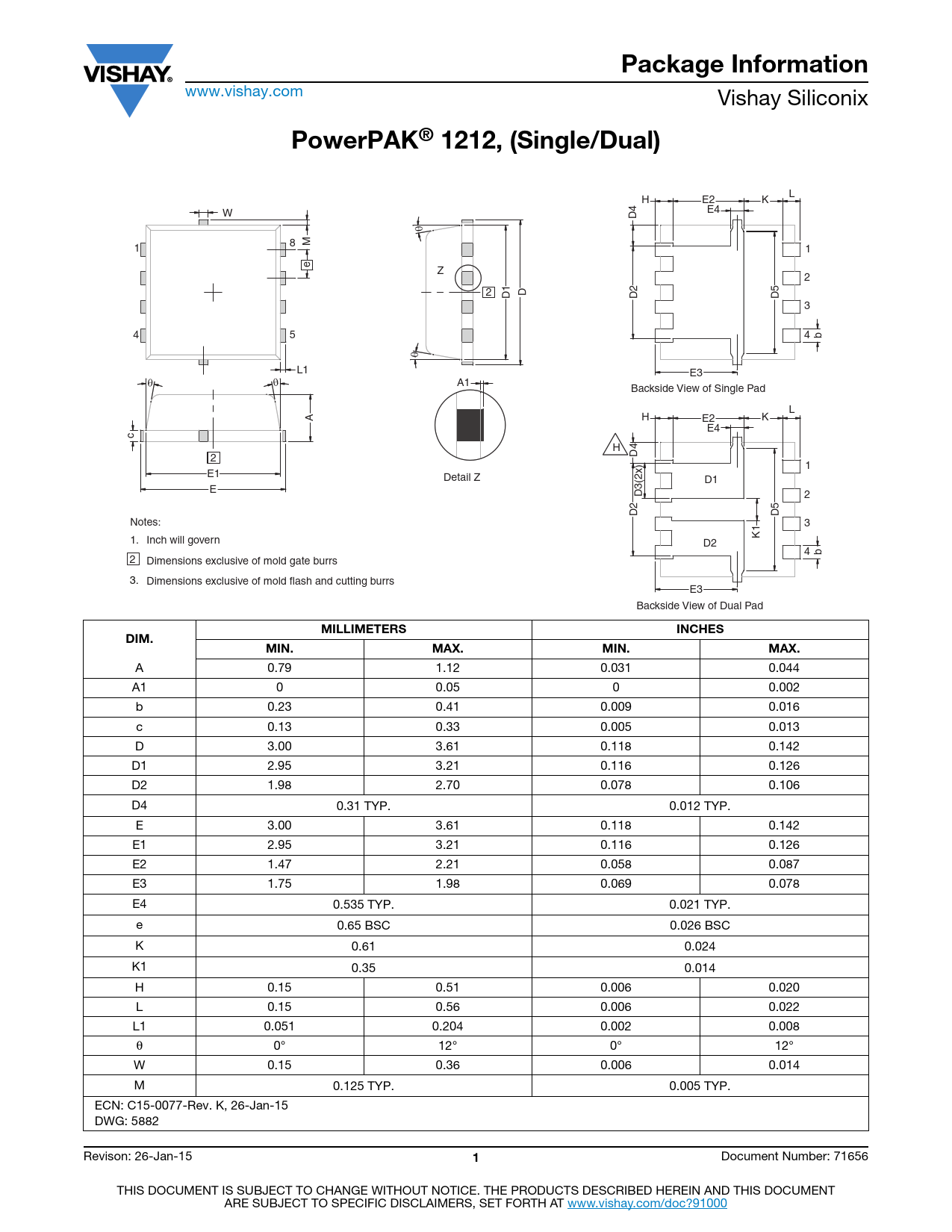

Package Information
www.vishay.com Vishay Siliconix
PowerPAK® 1212, (Single/Dual)
L H E2 K W E4 θ D4 8 M 1 1 e Z 2 2 D1 D D2 D5 3 4 5 4 b θ L1 E3 θ θ A1 Backside View of Single Pad L A H E2 K E4 c H D4 2 1 E1 Detail Z D1 E D3(2x) 2 D2 D5 Notes: 3 K1 1. Inch will govern D2 4 b 2 Dimensions exclusive of mold gate burrs 3. Dimensions exclusive of mold flash and cutting burrs E3 Backside View of Dual Pad
MILLIMETERS INCHES DIM. MIN. MAX. MIN. MAX.
A 0.79 1.12 0.031 0.044 A1 0 0.05 0 0.002 b 0.23 0.41 0.009 0.016 c 0.13 0.33 0.005 0.013 D 3.00 3.61 0.118 0.142 D1 2.95 3.21 0.116 0.126 D2 1.98 2.70 0.078 0.106 D4 0.31 TYP. 0.012 TYP. E 3.00 3.61 0.118 0.142 E1 2.95 3.21 0.116 0.126 E2 1.47 2.21 0.058 0.087 E3 1.75 1.98 0.069 0.078 E4 0.535 TYP. 0.021 TYP. e 0.65 BSC 0.026 BSC K 0.61 0.024 K1 0.35 0.014 H 0.15 0.51 0.006 0.020 L 0.15 0.56 0.006 0.022 L1 0.051 0.204 0.002 0.008 θ 0° 12° 0° 12° W 0.15 0.36 0.006 0.014 M 0.125 TYP. 0.005 TYP. ECN: C15-0077-Rev. K, 26-Jan-15 DWG: 5882 Revison: 26-Jan-15
1
Document Number: 71656 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
