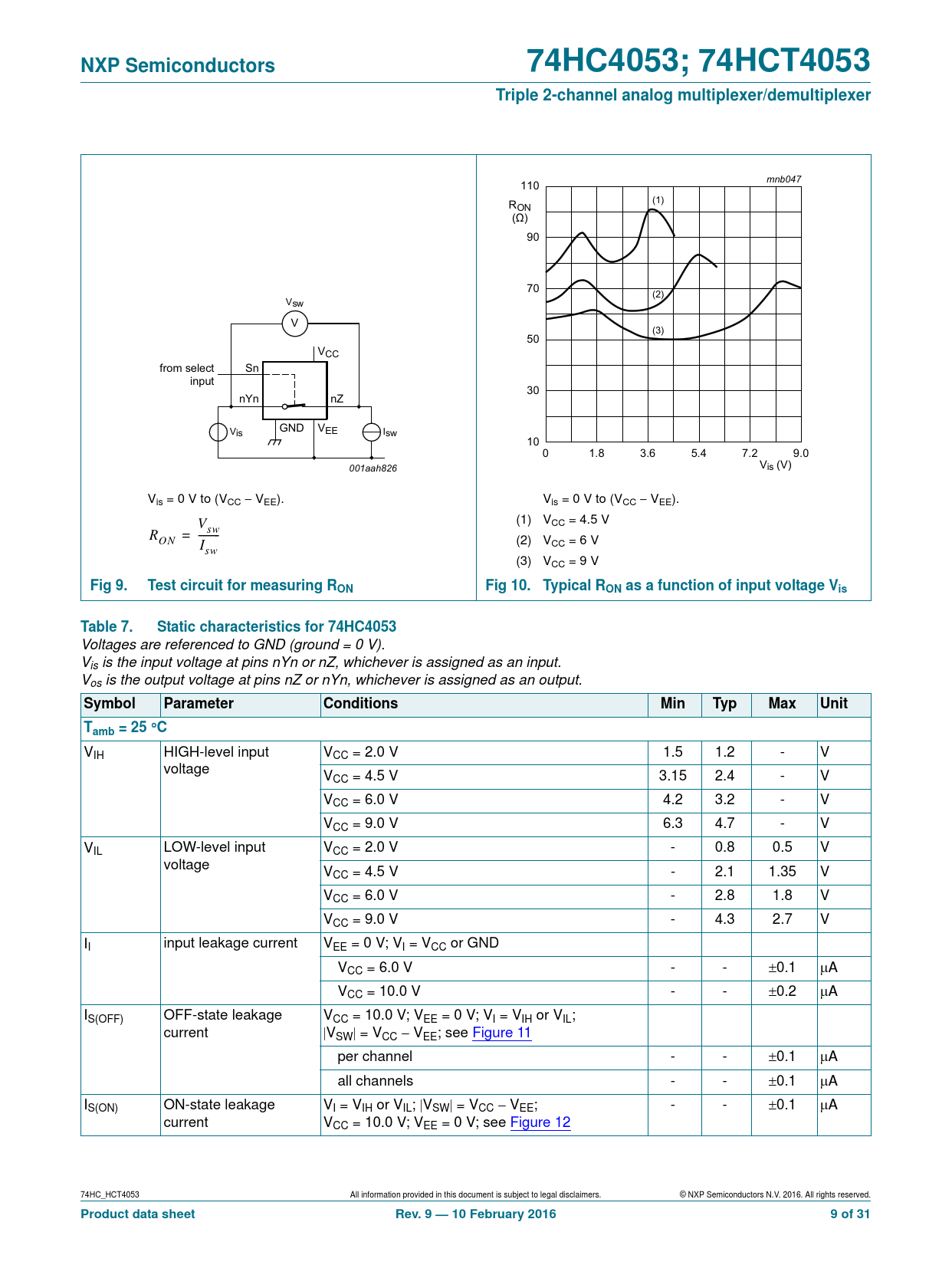

NXP Semiconductors 74HC4053; 74HCT4053 Triple 2-channel analog multiplexer/demultiplexer
PQE 5 21 ȍ 9VZ 9 9&& IURPVHOHFW 6Q LQSXW Q<Q Q= *1' 9 9 (( LV ,VZ DDK 9LV9 V is = 0 V to (VCC VEE). Vis = 0 V to (VCC VEE). (1) VCC = 4.5 V V R sw = ----- ON (2) VCC = 6 V Isw (3) VCC = 9 V
Fig 9. Test circuit for measuring RON Fig 10. Typical RON as a function of input voltage Vis Table 7. Static characteristics for 74HC4053
Voltages are referenced to GND (ground = 0 V). Vis is the input voltage at pins nYn or nZ, whichever is assigned as an input. Vos is the output voltage at pins nZ or nYn, whichever is assigned as an output.
Symbol Parameter Conditions Min Typ Max Unit Tamb = 25 C
VIH HIGH-level input VCC = 2.0 V 1.5 1.2 - V voltage VCC = 4.5 V 3.15 2.4 - V VCC = 6.0 V 4.2 3.2 - V VCC = 9.0 V 6.3 4.7 - V VIL LOW-level input VCC = 2.0 V - 0.8 0.5 V voltage VCC = 4.5 V - 2.1 1.35 V VCC = 6.0 V - 2.8 1.8 V VCC = 9.0 V - 4.3 2.7 V II input leakage current VEE = 0 V; VI = VCC or GND VCC = 6.0 V - - 0.1 A VCC = 10.0 V - - 0.2 A IS(OFF) OFF-state leakage VCC = 10.0 V; VEE = 0 V; VI = VIH or VIL; current V SW = VCC VEE; see Figure 11 per channel - - 0.1 A all channels - - 0.1 A I S(ON) ON-state leakage VI = VIH or VIL; VSW = VCC VEE; - - 0.1 A current VCC = 10.0 V; VEE = 0 V; see Figure 12 74HC_HCT4053 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet Rev. 9 — 10 February 2016 9 of 31
