Datasheet UF5400, UF5401, UF5402, UF5403, UF5404, UF5405, UF5406, UF5407, UF5408 (Vishay) - 2

FabricanteVishay
DescripciónSoft Recovery Ultrafast Plastic Rectifier
Páginas / Página4 / 2 — UF5400, UF5401, UF5402, UF5403, UF5404, UF5405, UF5406, UF5407, UF5408. …
Formato / tamaño de archivoPDF / 71 Kb
Idioma del documentoInglés

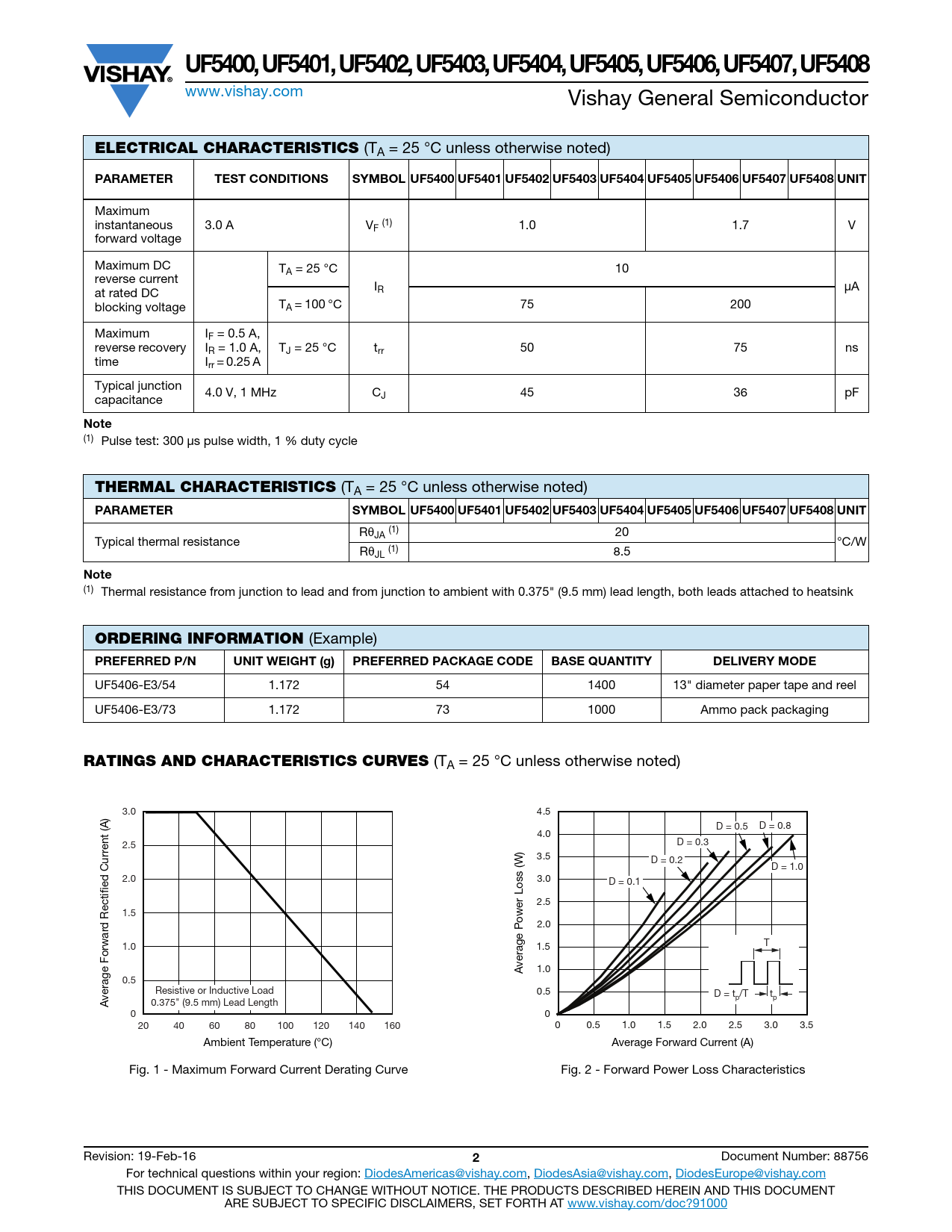

UF5400, UF5401, UF5402, UF5403, UF5404, UF5405, UF5406, UF5407, UF5408. ELECTRICAL CHARACTERISTICS. PARAMETER TEST

UF5400, UF5401, UF5402, UF5403, UF5404, UF5405, UF5406, UF5407, UF5408 ELECTRICAL CHARACTERISTICS PARAMETER TEST

Línea de modelo para esta hoja de datos

Versión de texto del documento

UF5400, UF5401, UF5402, UF5403, UF5404, UF5405, UF5406, UF5407, UF5408
www.vishay.com Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted)
PARAMETER TEST CONDITIONS SYMBOL UF5400 UF5401 UF5402 UF5403 UF5404 UF5405 UF5406 UF5407 UF5408 UNIT
Maximum instantaneous 3.0 A VF (1) 1.0 1.7 V forward voltage Maximum DC TA = 25 °C 10 reverse current I μA at rated DC R blocking voltage TA = 100 °C 75 200 Maximum IF = 0.5 A, reverse recovery IR = 1.0 A, TJ = 25 °C trr 50 75 ns time Irr = 0.25 A Typical junction 4.0 V, 1 MHz C capacitance J 45 36 pF
Note
(1) Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted)
PARAMETER SYMBOL UF5400 UF5401 UF5402 UF5403 UF5404 UF5405 UF5406 UF5407 UF5408 UNIT
RJA (1) 20 Typical thermal resistance °C/W RJL (1) 8.5
Note
(1) Thermal resistance from junction to lead and from junction to ambient with 0.375" (9.5 mm) lead length, both leads attached to heatsink
ORDERING INFORMATION
(Example)
PREFERRED P/N UNIT WEIGHT (g) PREFERRED PACKAGE CODE BASE QUANTITY DELIVERY MODE
UF5406-E3/54 1.172 54 1400 13" diameter paper tape and reel UF5406-E3/73 1.172 73 1000 Ammo pack packaging
RATINGS AND CHARACTERISTICS CURVES
(TA = 25 °C unless otherwise noted) 3.0 4.5 D = 0.5 D = 0.8 4.0 ent (A) 2.5 D = 0.3 3.5 D = 0.2 Curr (W) D = 1.0 2.0 ss 3.0 D = 0.1 2.5 1.5 d Rectified 2.0 1.0 1.5 T erage Power Lo v A 1.0 0.5 erage Forwar Resistive or Inductive Load v 0.5 D = t /T t p p A 0.375" (9.5 mm) Lead Length 0 0 20 40 60 80 100 120 140 160 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 Ambient Temperature (°C) Average Forward Current (A) Fig. 1 - Maximum Forward Current Derating Curve Fig. 2 - Forward Power Loss Characteristics Revision: 19-Feb-16
