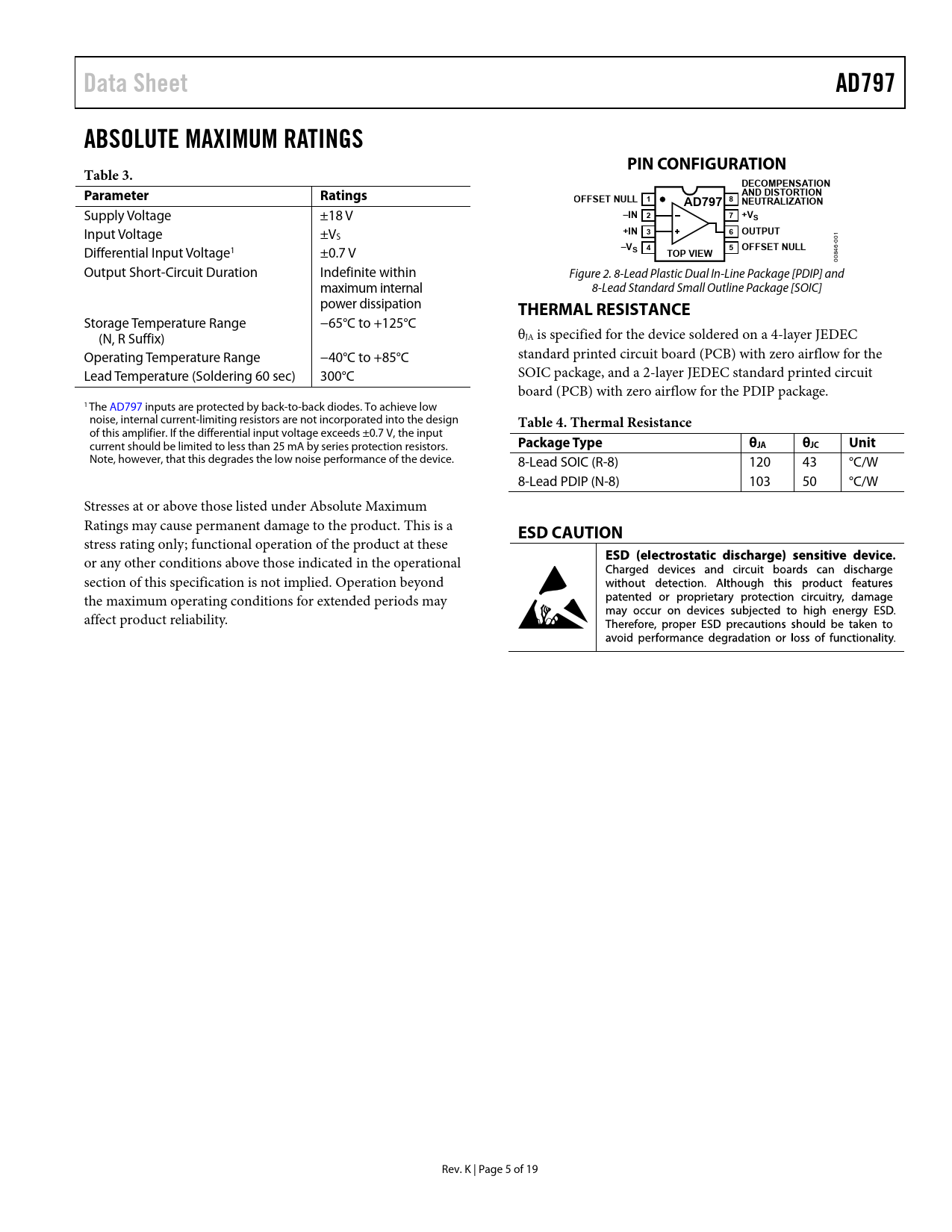

Data Sheet AD797 ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION Table 3. DECOMPENSATION Parameter Ratings AND DISTORTION OFFSET NULL 1 AD797 8 NEUTRALIZATION
Supply Voltage ±18 V
–IN 2 7 +VS
Input Voltage ±V
+IN 3 6 OUTPUT
S 1
–V
-00
5 OFFSET NULL
Differential Input Voltage1
S 4
±0.7 V
TOP VIEW
846 00 Output Short-Circuit Duration Indefinite within Figure 2. 8-Lead Plastic Dual In-Line Package [PDIP] and maximum internal 8-Lead Standard Small Outline Package [SOIC] power dissipation
THERMAL RESISTANCE
Storage Temperature Range −65°C to +125°C (N, R Suffix) θJA is specified for the device soldered on a 4-layer JEDEC Operating Temperature Range −40°C to +85°C standard printed circuit board (PCB) with zero airflow for the Lead Temperature (Soldering 60 sec) 300°C SOIC package, and a 2-layer JEDEC standard printed circuit board (PCB) with zero airflow for the PDIP package. 1 The AD797 inputs are protected by back-to-back diodes. To achieve low noise, internal current-limiting resistors are not incorporated into the design
Table 4. Thermal Resistance
of this amplifier. If the differential input voltage exceeds ±0.7 V, the input current should be limited to less than 25 mA by series protection resistors.
Package Type θJA θJC Unit
Note, however, that this degrades the low noise performance of the device. 8-Lead SOIC (R-8) 120 43 °C/W 8-Lead PDIP (N-8) 103 50 °C/W Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
ESD CAUTION
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. K | Page 5 of 19 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION NOISE AND SOURCE IMPEDANCE CONSIDERATIONS LOW FREQUENCY NOISE WIDEBAND NOISE BYPASSING CONSIDERATIONS THE NONINVERTING CONFIGURATION THE INVERTING CONFIGURATION DRIVING CAPACITIVE LOADS SETTLING TIME DISTORTION REDUCTION Differential Line Receiver A General-Purpose ATE/Instrumentation I/O Driver Ultrasound/Sonar Imaging Preamp Amorphous (Photodiode) Detector Professional Audio Signal Processing—DAC Buffers OUTLINE DIMENSIONS ORDERING GUIDE
