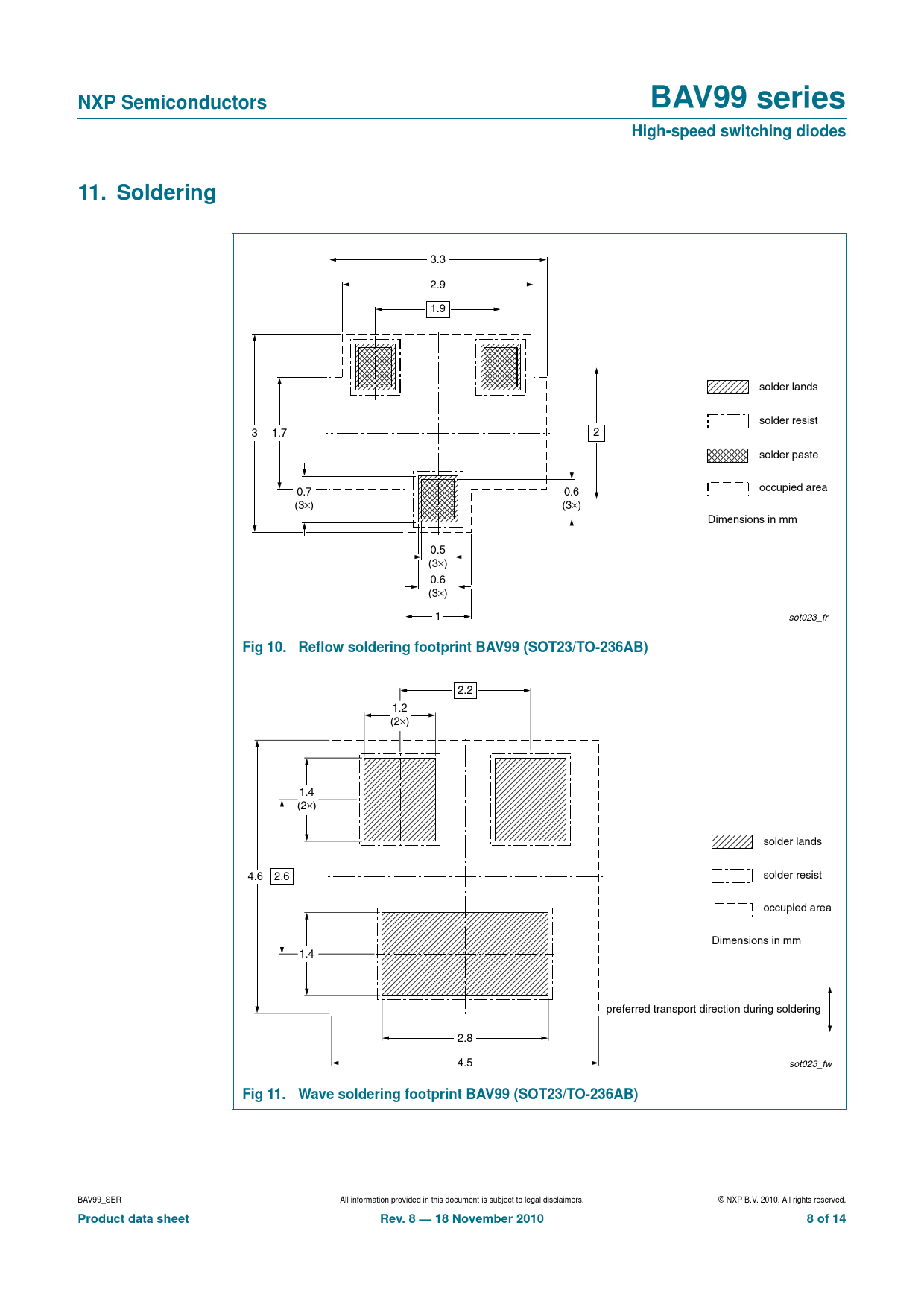

NXP Semiconductors BAV99 series High-speed switching diodes 11. Soldering
3.3 2.9 1.9 solder lands solder resist 3 1.7 2 solder paste occupied area 0.7 0.6 (3×) (3×) Dimensions in mm 0.5 (3×) 0.6 (3×) 1 sot023_fr
Fig 10. Reflow soldering footprint BAV99 (SOT23/TO-236AB)
2.2 1.2 (2×) 1.4 (2×) solder lands 4.6 2.6 solder resist occupied area Dimensions in mm 1.4 preferred transport direction during soldering 2.8 4.5 sot023_fw
Fig 11. Wave soldering footprint BAV99 (SOT23/TO-236AB)
BAV99_SER All information provided in this document is subject to legal disclaimers. © NXP B.V. 2010. All rights reserved.
Product data sheet Rev. 8 — 18 November 2010 8 of 14
