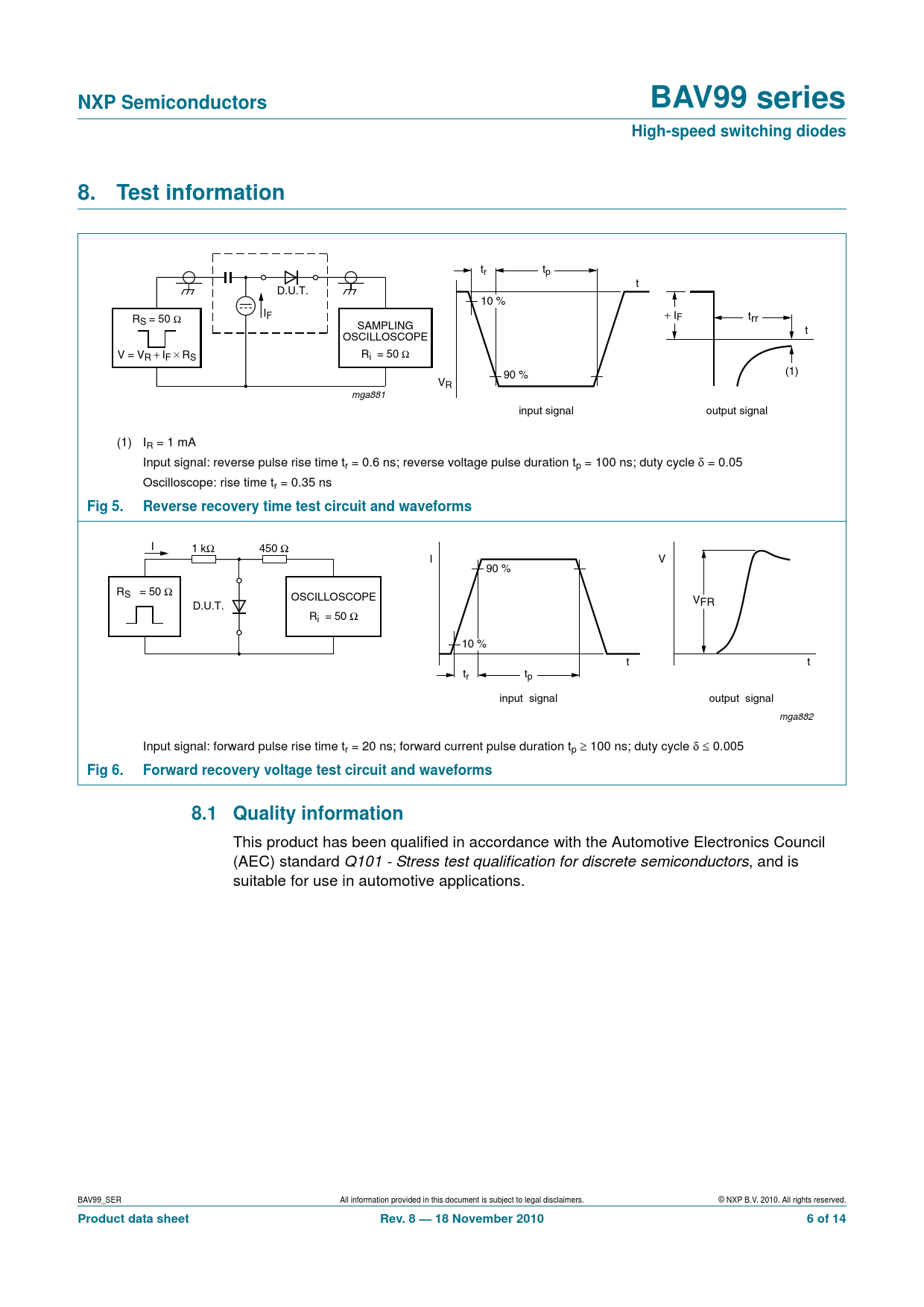

NXP Semiconductors BAV99 series High-speed switching diodes 8. Test information
tr tp t D.U.T. 10 % + IF t R rr S = 50 Ω IF SAMPLING t OSCILLOSCOPE V = VR + IF × RS Ri = 50 Ω (1) 90 % VR mga881 input signal output signal (1) IR = 1 mA Input signal: reverse pulse rise time tr = 0.6 ns; reverse voltage pulse duration tp = 100 ns; duty cycle δ = 0.05 Oscilloscope: rise time tr = 0.35 ns
Fig 5. Reverse recovery time test circuit and waveforms
I 1 kΩ 450 Ω I V 90 % RS = 50 Ω OSCILLOSCOPE V D.U.T. FR Ri = 50 Ω 10 % t t tr tp input signal output signal mga882 Input signal: forward pulse rise time t ≥ r = 20 ns; forward current pulse duration tp 100 ns; duty cycle δ ≤ 0.005
Fig 6. Forward recovery voltage test circuit and waveforms 8.1 Quality information
This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in automotive applications. BAV99_SER All information provided in this document is subject to legal disclaimers. © NXP B.V. 2010. All rights reserved.
