Datasheet AD8330 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | Low Cost, DC to 150 MHz, Variable Gain Amplifier |
| Páginas / Página | 32 / 5 — Data Sheet. AD8330. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. … |
| Revisión | H |
| Formato / tamaño de archivo | PDF / 1.4 Mb |
| Idioma del documento | Inglés |

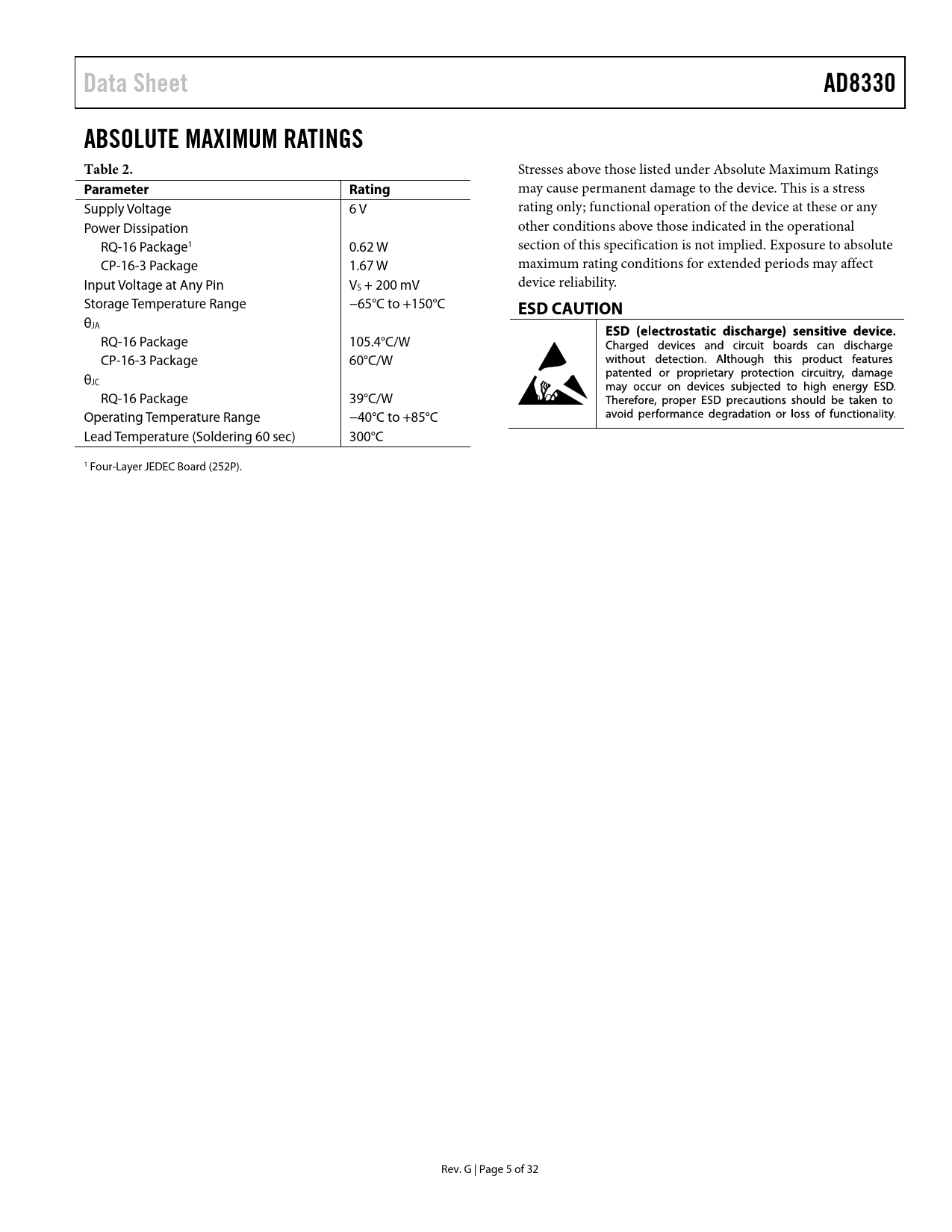

Data Sheet. AD8330. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet AD8330 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage 6 V rating only; functional operation of the device at these or any Power Dissipation other conditions above those indicated in the operational RQ-16 Package1 0.62 W section of this specification is not implied. Exposure to absolute CP-16-3 Package 1.67 W maximum rating conditions for extended periods may affect Input Voltage at Any Pin V device reliability. S + 200 mV Storage Temperature Range −65°C to +150°C
ESD CAUTION
θJA RQ-16 Package 105.4°C/W CP-16-3 Package 60°C/W θJC RQ-16 Package 39°C/W Operating Temperature Range −40°C to +85°C Lead Temperature (Soldering 60 sec) 300°C 1 Four-Layer JEDEC Board (252P). Rev. G | Page 5 of 32 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Theory of Operation Circuit Description Overall Structure Normal Operating Conditions Linear-in-dB Gain Control (VDBS) Inversion of the Gain Slope Gain Magnitude Control (VMAG) Two Classes of Variable Gain Amplifiers Amplitude/Phase Response Noise, Input Capacity, and Dynamic Range Dynamic Range Input Common-Mode Range and Rejection Ratio Output Noise and Peak Swing Offset Compensation Effects of Loading on Gain and AC Response Gain Errors Due to On-Chip Resistor Tolerances Output (Input) Common-Mode Control Using the AD8330 Gain and Swing Adjustments When Loaded Input Coupling DC-Coupled Signal Path Using Single-Sided Sources and Loads Pulse Operation Preserving Absolute Gain Calculation of Noise Figure Noise as a Function of VDBS Distortion Considerations P1dB and V1dB Applications Information ADC Driving Simple AGC Amplifier Wide Range True RMS Voltmeter Evaluation Board General Description Basic Operation Options Measurement Setup AD8330-EVALZ Board Design Outline Dimensions Ordering Guide
