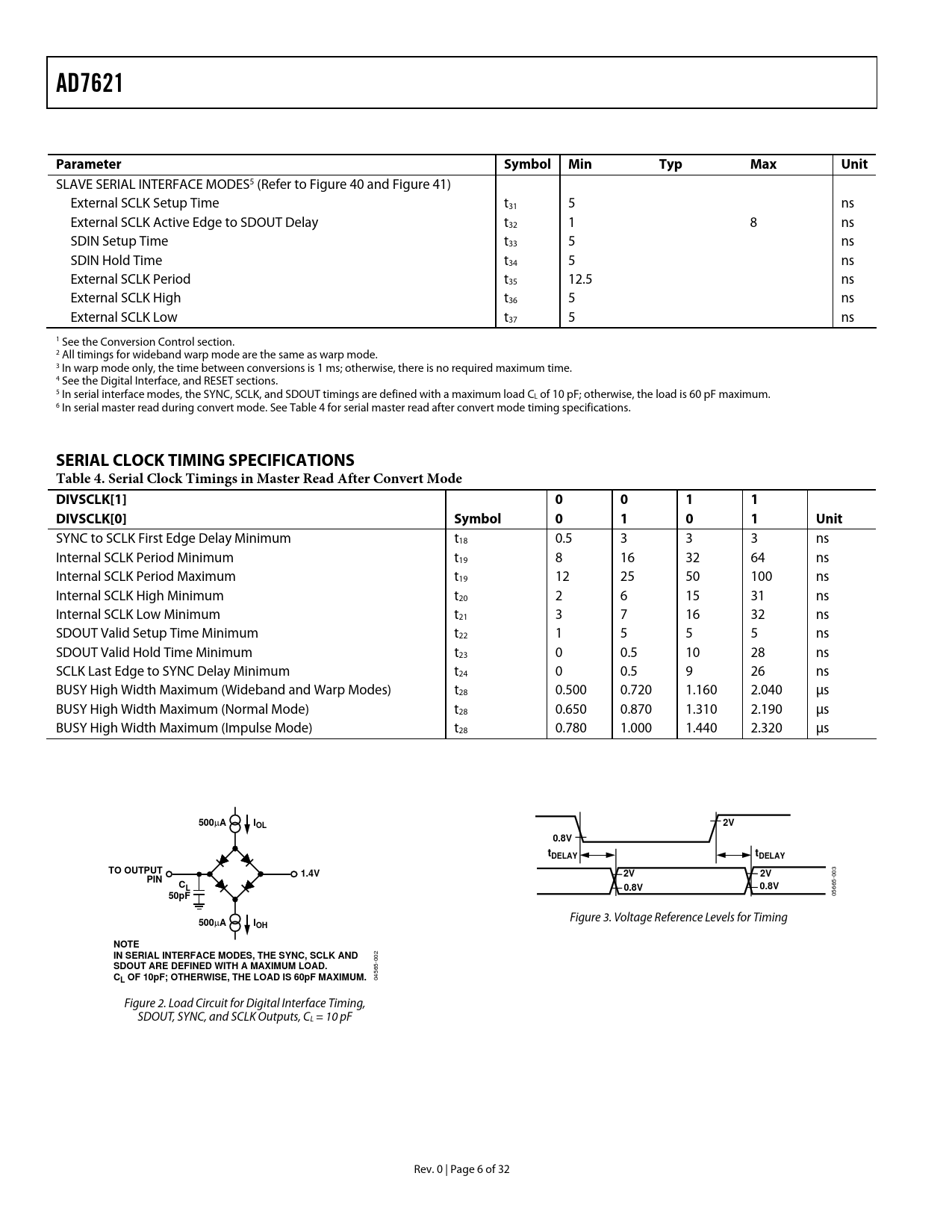

AD7621 Parameter Symbol Min Typ Max Unit
SLAVE SERIAL INTERFACE MODES5 (Refer to Figure 40 and Figure 41) External SCLK Setup Time t31 5 ns External SCLK Active Edge to SDOUT Delay t32 1 8 ns SDIN Setup Time t33 5 ns SDIN Hold Time t34 5 ns External SCLK Period t35 12.5 ns External SCLK High t36 5 ns External SCLK Low t37 5 ns 1 See the Conversion Control section. 2 All timings for wideband warp mode are the same as warp mode. 3 In warp mode only, the time between conversions is 1 ms; otherwise, there is no required maximum time. 4 See the Digital Interface, and RESET sections. 5 In serial interface modes, the SYNC, SCLK, and SDOUT timings are defined with a maximum load CL of 10 pF; otherwise, the load is 60 pF maximum. 6 In serial master read during convert mode. See Table 4 for serial master read after convert mode timing specifications.
SERIAL CLOCK TIMING SPECIFICATIONS Table 4. Serial Clock Timings in Master Read After Convert Mode DIVSCLK[1] 0 0 1 1 DIVSCLK[0] Symbol 0 1 0 1 Unit
SYNC to SCLK First Edge Delay Minimum t18 0.5 3 3 3 ns Internal SCLK Period Minimum t19 8 16 32 64 ns Internal SCLK Period Maximum t19 12 25 50 100 ns Internal SCLK High Minimum t20 2 6 15 31 ns Internal SCLK Low Minimum t21 3 7 16 32 ns SDOUT Valid Setup Time Minimum t22 1 5 5 5 ns SDOUT Valid Hold Time Minimum t23 0 0.5 10 28 ns SCLK Last Edge to SYNC Delay Minimum t24 0 0.5 9 26 ns BUSY High Width Maximum (Wideband and Warp Modes) t28 0.500 0.720 1.160 2.040 μs BUSY High Width Maximum (Normal Mode) t28 0.650 0.870 1.310 2.190 μs BUSY High Width Maximum (Impulse Mode) t28 0.780 1.000 1.440 2.320 μs
500
μ
A IOL 2V 0.8V t t DELAY DELAY TO OUTPUT 1.4V 2V 2V PIN CL 0.8V 0.8V 50pF
05665-003 Figure 3. Voltage Reference Levels for Timing
500
μ
A IOH NOTE IN SERIAL INTERFACE MODES, THE SYNC, SCLK AND SDOUT ARE DEFINED WITH A MAXIMUM LOAD. C
04565-002
L OF 10pF; OTHERWISE, THE LOAD IS 60pF MAXIMUM.
Figure 2. Load Circuit for Digital Interface Timing, SDOUT, SYNC, and SCLK Outputs, CL = 10 pF Rev. 0 | Page 6 of 32 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS SPECIFICATIONS TIMING SPECIFICATIONS SERIAL CLOCK TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION CIRCUIT INFORMATION CONVERTER OPERATION MODES OF OPERATION TRANSFER FUNCTIONS TYPICAL CONNECTION DIAGRAM ANALOG INPUTS DRIVER AMPLIFIER CHOICE Single-to-Differential Driver VOLTAGE REFERENCE INPUT Internal Reference External 1.2 V Reference and Internal Buffer External Reference Reference Decoupling Temperature Sensor POWER SUPPLY Power Sequencing Power-Up POWER DISSIPATION VS. THROUGHPUT CONVERSION CONTROL INTERFACES DIGITAL INTERFACE RESET PARALLEL INTERFACE Master Parallel Interface Slave Parallel Interface 8-Bit Interface (Master or Slave) SERIAL INTERFACE MASTER SERIAL INTERFACE Internal Clock SLAVE SERIAL INTERFACE External Clock External Discontinuous Clock Data Read After Conversion External Clock Data Read During Previous Conversion MICROPROCESSOR INTERFACING SPI Interface (ADSP-219x) APPLICATION LAYOUT EVALUATING THE AD7621 PERFORMANCE OUTLINE DIMENSIONS ORDERING GUIDE
