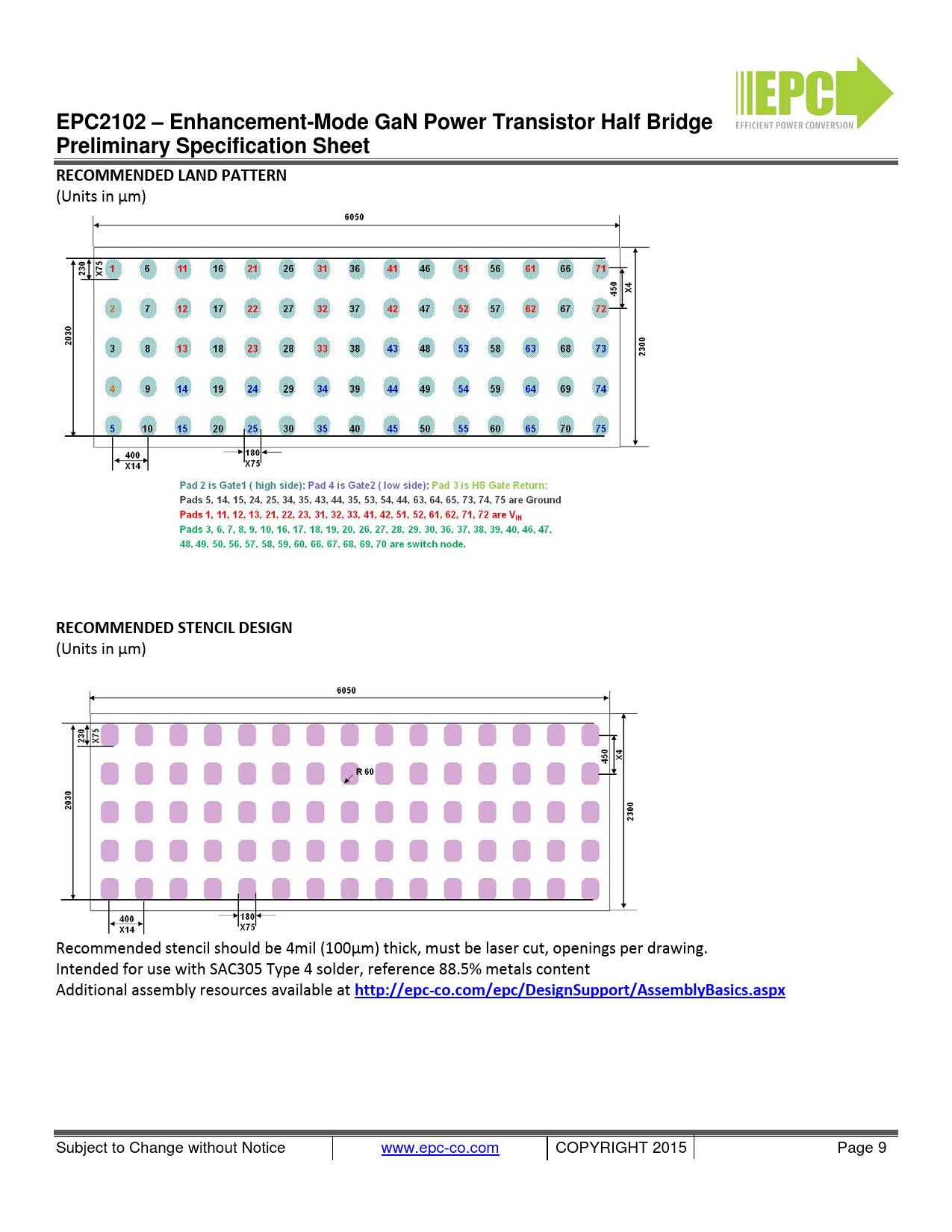

EPC2102 – Enhancement-Mode GaN Power Transistor Half Bridge. Preliminary Specification Sheet. RECOMMENDED LAND PATTERN
Línea de modelo para esta hoja de datos
EPC2102
Versión de texto del documento
EPC2102 – Enhancement-Mode GaN Power Transistor Half Bridge Preliminary Specification Sheet RECOMMENDED LAND PATTERN
(Units in µm)
RECOMMENDED STENCIL DESIGN
(Units in µm) Recommended stencil should be 4mil (100µm) thick, must be laser cut, openings per drawing. Intended for use with SAC305 Type 4 solder, reference 88.5% metals content Additional assembly resources available at
http://epc-co.com/epc/DesignSupport/AssemblyBasics.aspx
Subject to Change without Notice www.epc-co.com COPYRIGHT 2015 Page 9
(Units in µm)
RECOMMENDED STENCIL DESIGN
(Units in µm) Recommended stencil should be 4mil (100µm) thick, must be laser cut, openings per drawing. Intended for use with SAC305 Type 4 solder, reference 88.5% metals content Additional assembly resources available at
http://epc-co.com/epc/DesignSupport/AssemblyBasics.aspx
Subject to Change without Notice www.epc-co.com COPYRIGHT 2015 Page 9
