Datasheet nRF51822

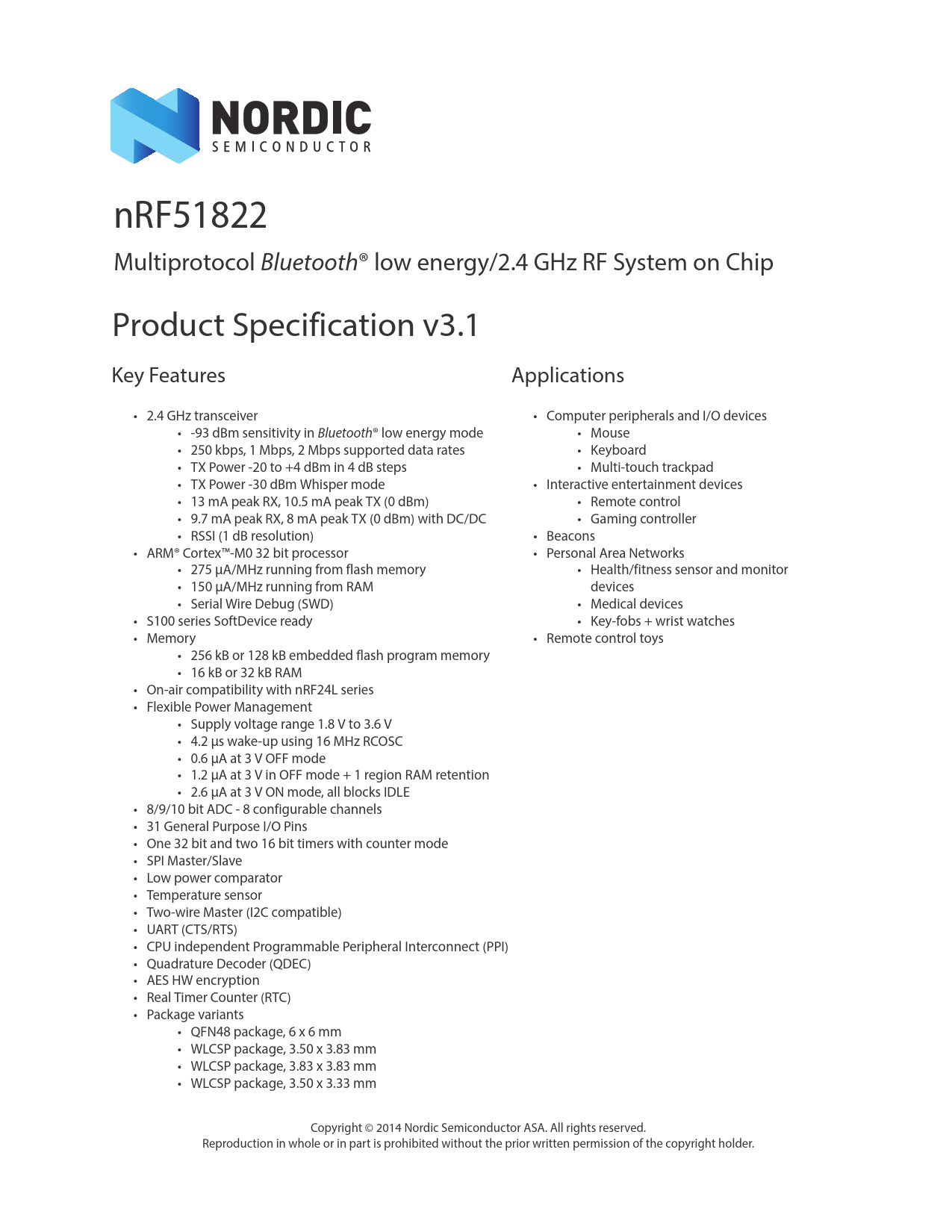

nRF51822 Multiprotocol Bluetooth® low energy/2.4 GHz RF System on Chip Product Specification v3.1 Key Features Applications • 2.4 GH z transceiver • Computer peripherals and I/O devices • -93 dBm sensitivity in Bluetooth® low energy mode • Mouse • 250 kbps, 1 Mbps, 2 Mbps supported data rates • Keyboard • TX Power -20 to +4 dBm in 4 dB steps • Multi-touch trackpad • TX Power -30 dBm Whisper mode • Interactive entertainment devices • 13 mA peak RX, 10.5 mA peak TX (0 dBm) • Remote control • 9.7 mA peak RX, 8 mA peak TX (0 dBm) with DC/DC • Gaming controller • RSSI (1 dB resolution) • Beacons • ARM® Cortex™-M0 32 bit processor • Personal Area Networks • 275 μA/MHz running from flash memory • Health/fitness sensor and monitor • 150 μA/MHz running from RAM devices • Serial Wire Debug (SWD) • Medical devices • S100 series SoftDevice ready • Key-fobs + wrist watches • Memory • Remote control toys • 256 kB or 128 kB embedded flash program memory • 16 kB or 32 kB RAM • On-air compatibility with nRF24L series • Flexible Power Management • Supply voltage range 1.8 V to 3.6 V • 4.2 μs wake-up using 16 MHz RCOSC • 0.6 μA at 3 V OFF mode • 1.2 μA at 3 V in OFF mode + 1 region RAM retention • 2.6 μA at 3 V ON mode, all blocks IDLE • 8/9/10 bit ADC - 8 configurable channels • 31 General Purpose I/O Pins • One 32 bit and two 16 bit timers with counter mode • SP I Master/Slave • Low power comparator • Temperature sensor • Two-wire Master (I2C compatible) • UART (CTS/RTS ) • CPU independent Programmable Peripheral Interconnect (PPI) • Quadrature Decoder (QDEC) • AES HW encryption • Real Timer Counter (RTC) • Package variants • QFN48 package, 6 x 6 mm • WLCSP package, 3.50 x 3.83 mm • WLCSP package, 3.83 x 3.83 mm • WLCSP package, 3.50 x 3.33 mm Copyright © 2014 Nordic Semiconductor ASA. All rights reserved. Reproduction in whole or in part is prohibited without the prior written permission of the copyright holder. Document Outline 1 Introduction 1.1 Required reading 1.2 Writing conventions 2 Product overview 2.1 Block diagram 2.2 Pin assignments and functions 2.2.1 Pin assignment QFN48 2.2.2 CDAB WLCSP ball assignment and functions 2.2.3 CEAA and CFAC WLCSP ball assignment and functions 3 System blocks 3.1 CPU 3.2 Memory 3.2.1 Code organization 3.2.2 RAM organization 3.3 Memory Protection Unit (MPU) 3.4 Power management (POWER) 3.4.1 Power supply 3.4.2 Power management 3.5 Programmable Peripheral Interconnect (PPI) 3.6 Clock management (CLOCK) 3.6.1 16/32 MHz crystal oscillator 3.6.2 32.768 kHz crystal oscillator 3.6.3 32.768 kHz RC oscillator 3.6.4 Synthesized 32.768 kHz clock 3.7 GPIO 3.8 Debugger support 4 Peripheral blocks 4.1 2.4 GHz radio (RADIO) 4.2 Timer/counters (TIMER) 4.3 Real Time Counter (RTC) 4.4 AES Electronic Codebook Mode Encryption (ECB) 4.5 AES CCM Mode Encryption (CCM) 4.6 Accelerated Address Resolver (AAR) 4.7 Random Number Generator (RNG) 4.8 Watchdog Timer (WDT) 4.9 Temperature sensor (TEMP) 4.10 Serial Peripheral Interface (SPI/SPIS) 4.11 Two-wire interface (TWI) 4.12 Universal Asynchronous Receiver/Transmitter (UART) 4.13 Quadrature Decoder (QDEC) 4.14 Analog to Digital Converter (ADC) 4.15 GPIO Task Event blocks (GPIOTE) 4.16 Low Power Comparator (LPCOMP) 5 Instance table 6 Absolute maximum ratings 7 Operating conditions 7.1 WLCSP light sensitivity 8 Electrical specifications 8.1 Clock sources 8.1.1 16/32 MHz crystal startup 8.1.2 16 MHz crystal oscillator (16M XOSC) 8.1.3 32 MHz crystal oscillator (32M XOSC) 8.1.4 16 MHz RC oscillator (16M RCOSC) 8.1.5 32.768 kHz crystal oscillator (32k XOSC) 8.1.6 32.768 kHz RC oscillator (32k RCOSC) 8.1.7 32.768 kHz Synthesized oscillator (32k SYNT) 8.2 Power management 8.3 Block resource requirements 8.4 CPU 8.5 Radio transceiver 8.5.1 General radio characteristics 8.5.2 Radio current consumption with DC/DC disabled 8.5.3 Radio current consumption with DC/DC enabled 8.5.4 Transmitter specifications 8.5.5 Receiver specifications 8.5.6 Radio timing parameters 8.5.7 Antenna matching network requirements 8.6 Received Signal Strength Indicator (RSSI) specifications 8.7 Universal Asynchronous Receiver/Transmitter (UART) specifications 8.8 Serial Peripheral Interface Slave (SPIS) specifications 8.9 Serial Peripheral Interface (SPI) Master specifications 8.10 I2C compatible Two Wire Interface (TWI) specifications 8.11 GPIO Tasks and Events (GPIOTE) specifications 8.12 Analog to Digital Converter (ADC) specifications 8.13 Timer (TIMER) specifications 8.14 Real Time Counter (RTC) 8.15 Temperature sensor (TEMP) 8.16 Random Number Generator (RNG) specifications 8.17 AES Electronic Codebook Mode Encryption (ECB) specifications 8.18 AES CCM Mode Encryption (CCM) specifications 8.19 Accelerated Address Resolver (AAR) specifications 8.20 Watchdog Timer (WDT) specifications 8.21 Quadrature Decoder (QDEC) specifications 8.22 Non-Volatile Memory Controller (NVMC) specifications 8.23 General Purpose I/O (GPIO) specifications 8.24 Low Power Comparator (LPCOMP) specifications 9 Mechanical specifications 9.1 QFN48 package 9.2 CDAB WLCSP package 9.3 CEAA WLCSP package 9.4 CFAC WLCSP package 10 Ordering information 10.1 Chip marking 10.2 Inner box label 10.3 Outer box label 10.4 Order code 10.5 Abbreviations 10.6 Code ranges and values 10.7 Product options 10.7.1 nRF ICs 10.7.2 Development tools 11 Reference circuitry 11.1 PCB guidelines 11.1.1 PCB layout example 11.2 Reference design schematics 11.3 QFAA QFN48 package 11.3.1 QFAA QFN48 schematic with internal LDO setup 11.3.2 QFAA QFN48 schematic with low voltage mode setup 11.3.3 QFAA QFN48 schematic with DC/DC converter setup 11.4 QFAB QFN48 package 11.4.1 QFAB QFN48 schematic with internal LDO setup 11.4.2 QFAB QFN48 schematic with low voltage mode setup 11.4.3 QFAB QFN48 schematic with DC/DC converter setup 11.5 QFAC QFN48 package 11.5.1 QFAC QFN48 schematic with internal LDO setup 11.5.2 QFAC QFN48 schematic with low voltage mode setup 11.5.3 QFAC QFN48 schematic with DC/DC converter setup 11.6 CDAB WLCSP package 11.6.1 CDAB WLCSP schematic with internal LDO setup 11.6.2 CDAB WLCSP schematic with low voltage mode setup 11.6.3 CDAB WLCSP schematic with DC/DC converter setup 11.7 CEAA WLCSP package 11.7.1 CEAA WLCSP schematic with internal LDO setup 11.7.2 CEAA WLCSP schematic with low voltage mode setup 11.7.3 CEAA WLCSP schematic with DC/DC converter setup 11.8 CFAC WLCSP package 11.8.1 CFAC WLCSP schematic with internal LDO setup 11.8.2 CFAC WLCSP schematic with low voltage mode setup 11.8.3 CFAC WLCSP schematic with DC/DC converter setup 12 Glossary
