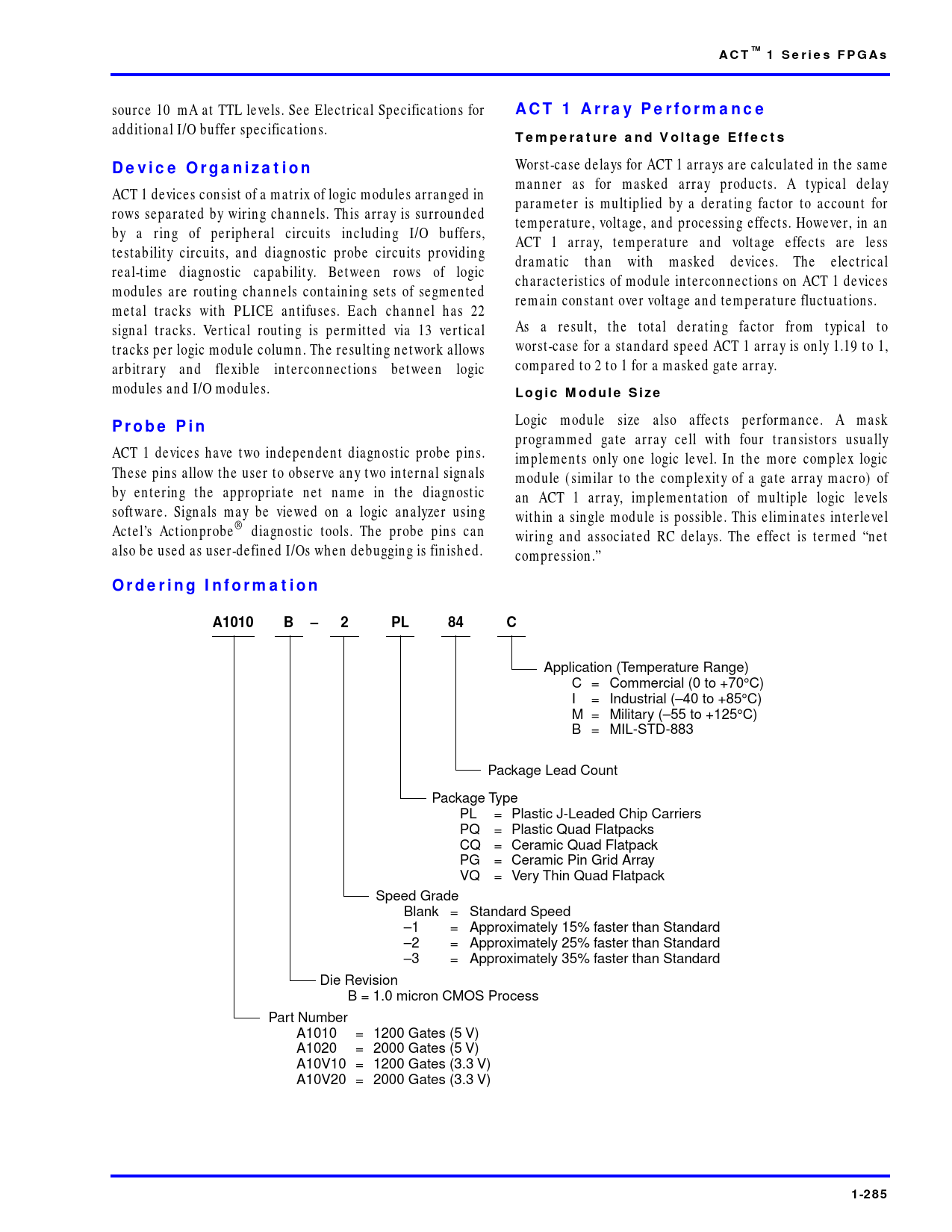

A C T ™ 1 S e r i e s F P G A s
source 10 mA at TTL levels. See Electrical Specifications for
A C T 1 A r r a y P e r f o r m a n c e
additional I/O buffer specifications.
Temperature and Voltage Effects D e v i c e O r g a n i z a t i o n
Worst-case delays for ACT 1 arrays are calculated in the same manner as for masked array products. A typical delay ACT 1 devices consist of a matrix of logic modules arranged in parameter is multiplied by a derating factor to account for rows separated by wiring channels. This array is surrounded temperature, voltage, and processing effects. However, in an by a ring of peripheral circuits including I/O buffers, ACT 1 array, temperature and voltage effects are less testability circuits, and diagnostic probe circuits providing dramatic than with masked devices. The electrical real-time diagnostic capability. Between rows of logic characteristics of module interconnections on ACT 1 devices modules are routing channels containing sets of segmented remain constant over voltage and temperature fluctuations. metal tracks with PLICE antifuses. Each channel has 22 signal tracks. Vertical routing is permitted via 13 vertical As a result, the total derating factor from typical to tracks per logic module column. The resulting network allows worst-case for a standard speed ACT 1 array is only 1.19 to 1, arbitrary and flexible interconnections between logic compared to 2 to 1 for a masked gate array. modules and I/O modules.
Logic Module Size
Logic module size also affects performance. A mask
P r o b e P i n
programmed gate array cell with four transistors usually ACT 1 devices have two independent diagnostic probe pins. implements only one logic level. In the more complex logic These pins allow the user to observe any two internal signals module (similar to the complexity of a gate array macro) of by entering the appropriate net name in the diagnostic an ACT 1 array, implementation of multiple logic levels software. Signals may be viewed on a logic analyzer using within a single module is possible. This eliminates interlevel Actel’s Actionprobe® diagnostic tools. The probe pins can wiring and associated RC delays. The effect is termed “net also be used as user-defined I/Os when debugging is finished. compression.”
O r d e r i n g I n f o r m a t i o n A1010 B – 2 PL 84 C
Application (Temperature Range) C = Commercial (0 to +70°C) I = Industrial (–40 to +85°C) M = Military (–55 to +125°C) B = MIL-STD-883 Package Lead Count Package Type PL = Plastic J-Leaded Chip Carriers PQ = Plastic Quad Flatpacks CQ = Ceramic Quad Flatpack PG = Ceramic Pin Grid Array VQ = Very Thin Quad Flatpack Speed Grade Blank = Standard Speed –1 = Approximately 15% faster than Standard –2 = Approximately 25% faster than Standard –3 = Approximately 35% faster than Standard Die Revision B = 1.0 micron CMOS Process Part Number A1010 = 1200 Gates (5 V) A1020 = 2000 Gates (5 V) A10V10 = 1200 Gates (3.3 V) A10V20 = 2000 Gates (3.3 V)
1-285
