Datasheet DMP3099L (Diodes)
| Fabricante | Diodes |
| Descripción | P-CHANNEL ENHANCEMENT MODE MOSFET |
| Páginas / Página | 7 / 1 — DMP3099L. P-CHANNEL ENHANCEMENT MODE MOSFET. Product Summary. Features … |
| Formato / tamaño de archivo | PDF / 417 Kb |
| Idioma del documento | Inglés |

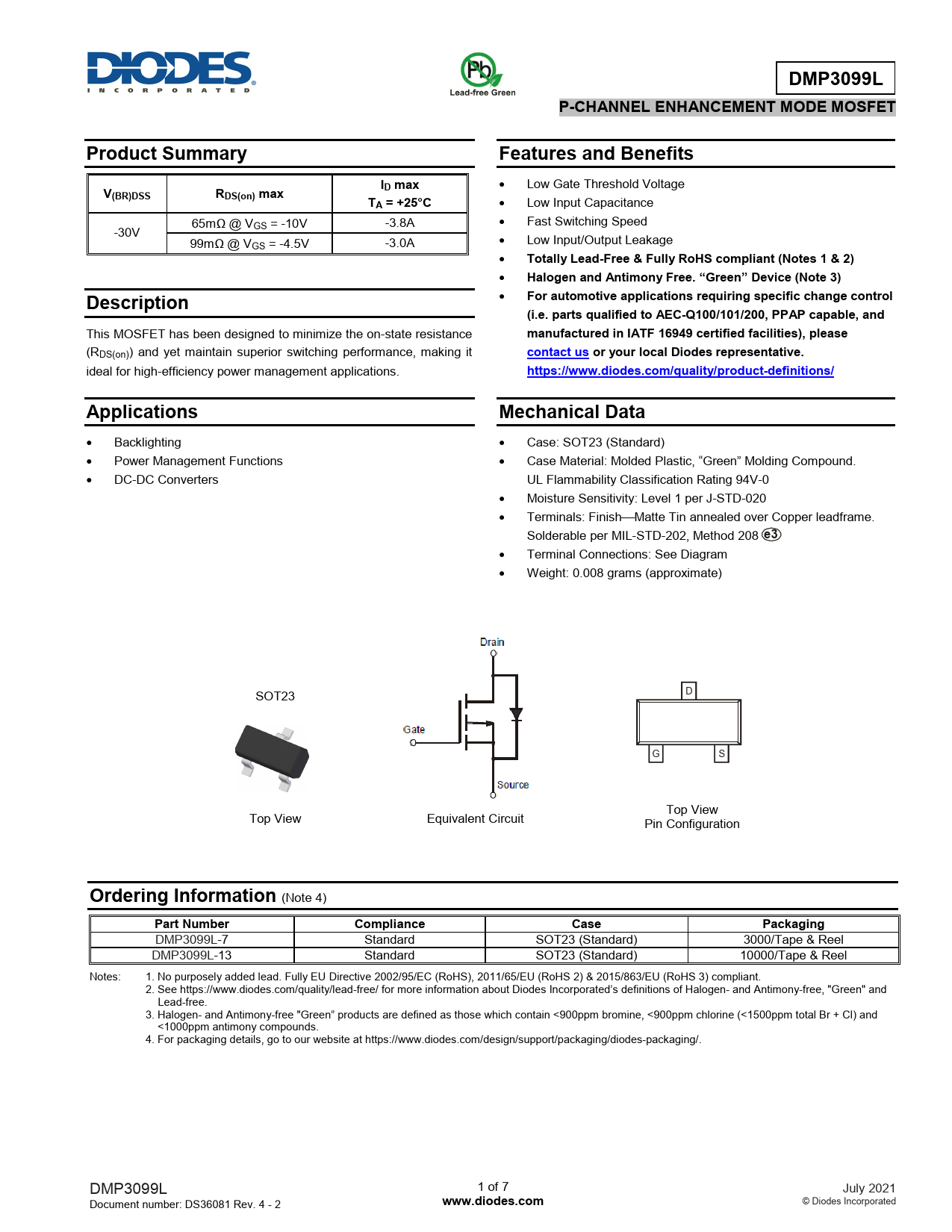

DMP3099L. P-CHANNEL ENHANCEMENT MODE MOSFET. Product Summary. Features and Benefits. D max. (BR)DSS. RDS(on) max. TA = +25°C
Línea de modelo para esta hoja de datos
Versión de texto del documento
DMP3099L P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features and Benefits I
• Low Gate Threshold Voltage
V D max (BR)DSS RDS(on) max TA = +25°C
• Low Input Capacitance 65mΩ @ V • Fast Switching Speed -30V GS = -10V -3.8A 99mΩ @ V • GS = -4.5V -3.0A Low Input/Output Leakage •
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3) Description
•
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and
This MOSFET has been designed to minimize the on-state resistance
manufactured in IATF 16949 certified facilities), please
(RDS(on)) and yet maintain superior switching performance, making it
contact us o r your local Diodes representative.
ideal for high-efficiency power management applications.
https:/ www.diodes.com/quality/product-definitions/ Applications Mechanical Data
• Backlighting • Case: SOT23 (Standard) • Power Management Functions • Case Material: Molded Plastic, “Green” Molding Compound. • DC-DC Converters UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: FinishMatte Tin annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208
e3
• Terminal Connections: See Diagram • Weight: 0.008 grams (approximate) D SOT23 G S Top View Top View Equivalent Circuit Pin Configuration
Ordering Information
(Note 4)
Part Number Compliance Case Packaging
DMP3099L-7 Standard SOT23 (Standard) 3000/Tape & Reel DMP3099L-13 Standard SOT23 (Standard) 10000/Tape & Reel Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/. DMP3099L 1 of 7 July 2021 Document number: DS36081 Rev. 4 - 2
www.diodes.com
© Diodes Incorporated Document Outline Marking Information Suggested Pad Layout
