Datasheet CAT102TDI-GT3 (ON Semiconductor) - 8
| Fabricante | ON Semiconductor |
| Descripción | Precision, Adjustable Shunt Regulator (600 mV Reference) |
| Páginas / Página | 9 / 8 — CAT102. EXAMPLE OF ORDERING INFORMATION 1. Prefix Device # Suffix. … |
| Formato / tamaño de archivo | PDF / 1.0 Mb |
| Idioma del documento | Inglés |

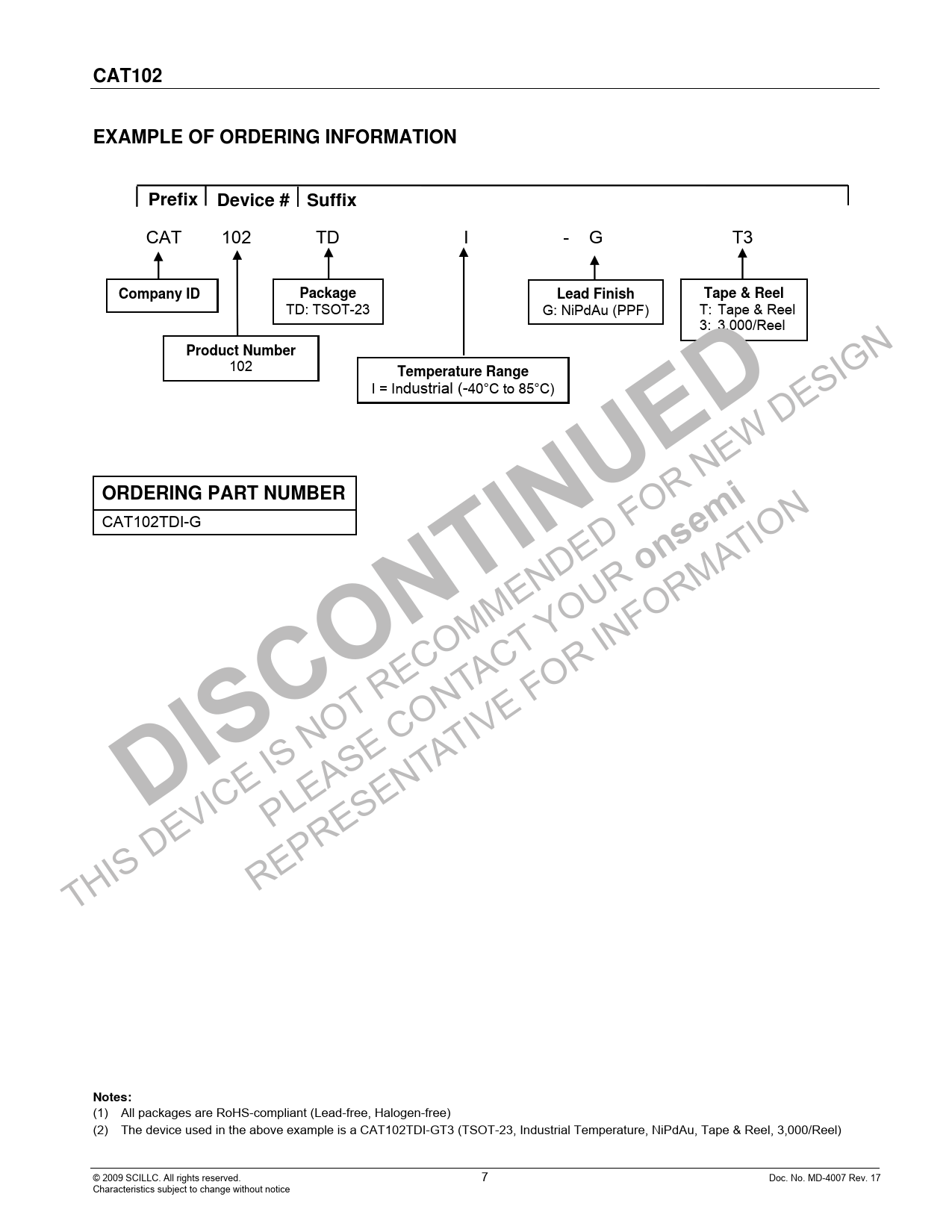

CAT102. EXAMPLE OF ORDERING INFORMATION 1. Prefix Device # Suffix. Company ID. Package. Lead Finish. Tape & Reel. Product Number
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8
CAT102 EXAMPLE OF ORDERING INFORMATION 1 Prefix Device # Suffix
CAT 102 TD I - G T3
Company ID Package Lead Finish Tape & Reel
TD: TSOT-23 G: NiPdAu (PPF) T: Tape & Reel 3: 3,000/Reel
Product Number
102
Temperature Range
I = Industrial (-40°C to 85°C)
ORDERING PART NUMBER
CAT102TDI-G
onsemi
TION YOUR R INFORMA RECOMMENDED FOR NEW DESIGN ACT
DISCONTINUED
CONT ATIVE FO PLEASE THIS DEVICE IS NOT REPRESENT
Notes:
(1) All packages are RoHS-compliant (Lead-free, Halogen-free) (2) The device used in the above example is a CAT102TDI-GT3 (TSOT-23, Industrial Temperature, NiPdAu, Tape & Reel, 3,000/Reel) © 2009 SCILLC. All rights reserved. 7 Doc. No. MD-4007 Rev. 17 Characteristics subject to change without notice Document Outline CAT102 Precision, Adjustable Shunt Regulator (600 mV Reference) FEATURES APPLICATION DESCRIPTION FUNCTIONAL DIAGRAM PIN CONFIGURATION ABSOLUTE MAXIMUM RATINGS ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION TYPICAL APPLICATION PACKAGE OUTLINE DRAWING EXAMPLE OF ORDERING INFORMATION ORDERING PART NUMBER REVISION HISTORY
