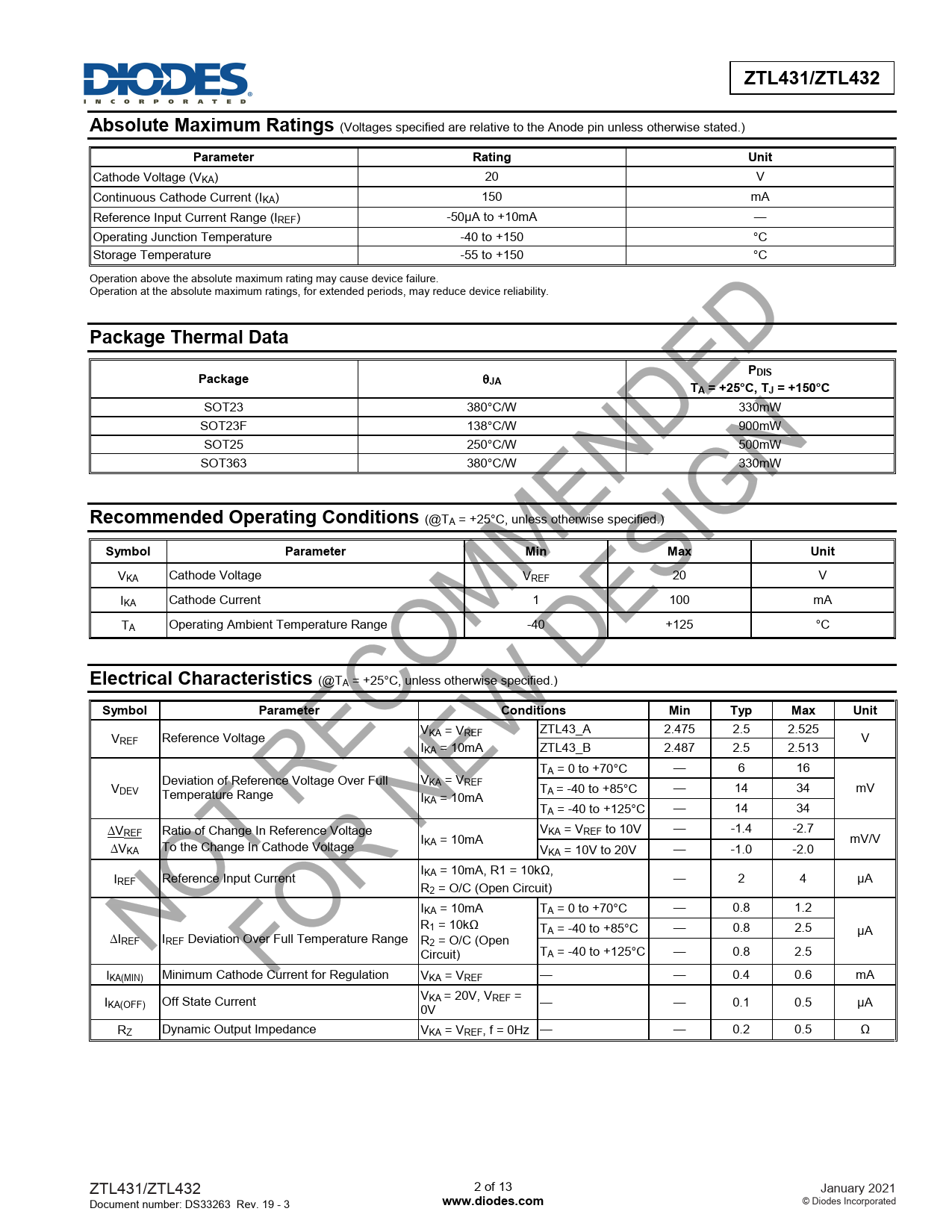

ZTL431/ZTL432 Absolute Maximum Ratings
(Voltages specified are relative to the Anode pin unless otherwise stated.)
Parameter Rating Unit
Cathode Voltage (VKA) 20 V Continuous Cathode Current (IKA) 150 mA Reference Input Current Range (IREF) -50µA to +10mA — Operating Junction Temperature -40 to +150 °C Storage Temperature -55 to +150 °C Operation above the absolute maximum rating may cause device failure. Operation at the absolute maximum ratings, for extended periods, may reduce device reliability.
Package Thermal Data Package P
θ
DIS JA TA = +25°C, TJ = +150°C
SOT23 380°C/W 330mW SOT23F 138°C/W 900mW SOT25 250°C/W 500mW SOT363 380°C/W 330mW
Recommended Operating Conditions
(@TA = +25°C, unless otherwise specified.)
Symbol Parameter Min Max Unit
VKA Cathode Voltage VREF 20 V IKA Cathode Current 1 100 mA TA Operating Ambient Temperature Range -40 +125 °C
Electrical Characteristics
(@TA = +25°C, unless otherwise specified.)
Symbol Parameter Conditions Min Typ Max Unit
ZTL43_A 2.475 2.5 2.525 VREF Reference Voltage VKA = VREF V IKA = 10mA ZTL43_B 2.487 2.5 2.513 TA = 0 to +70°C — 6 16 V V KA = VREF DEV Deviation of Reference Voltage Over Full Temperature Range TA = -40 to +85°C — 14 34 mV IKA = 10mA TA = -40 to +125°C — 14 34 ∆VREF Ratio of Change In Reference Voltage VKA = VREF to 10V — -1.4 -2.7 mV/V ∆VKA To the Change In Cathode Voltage IKA = 10mA VKA = 10V to 20V — -1.0 -2.0 IREF Reference Input Current IKA = 10mA, R1 = 10kΩ, — 2 4 µA R2 = O/C (Open Circuit) IKA = 10mA TA = 0 to +70°C — 0.8 1.2 R1 = 10kΩ T ∆I A = -40 to +85°C — 0.8 2.5 µA REF IREF Deviation Over Full Temperature Range R2 = O/C (Open Circuit) TA = -40 to +125°C — 0.8 2.5 IKA(MIN) Minimum Cathode Current for Regulation VKA = VREF — — 0.4 0.6 mA IKA(OFF) Off State Current VKA = 20V, VREF = 0V — — 0.1 0.5 µA RZ Dynamic Output Impedance VKA = VREF, f = 0Hz — — 0.2 0.5 Ω ZTL431/ZTL432 2 of 13 January 2021 Document number: DS33263 Rev. 19 - 3
www.diodes.com
