BYM13-xx, SGL41-xx www.vishay.com Vishay General Semiconductor

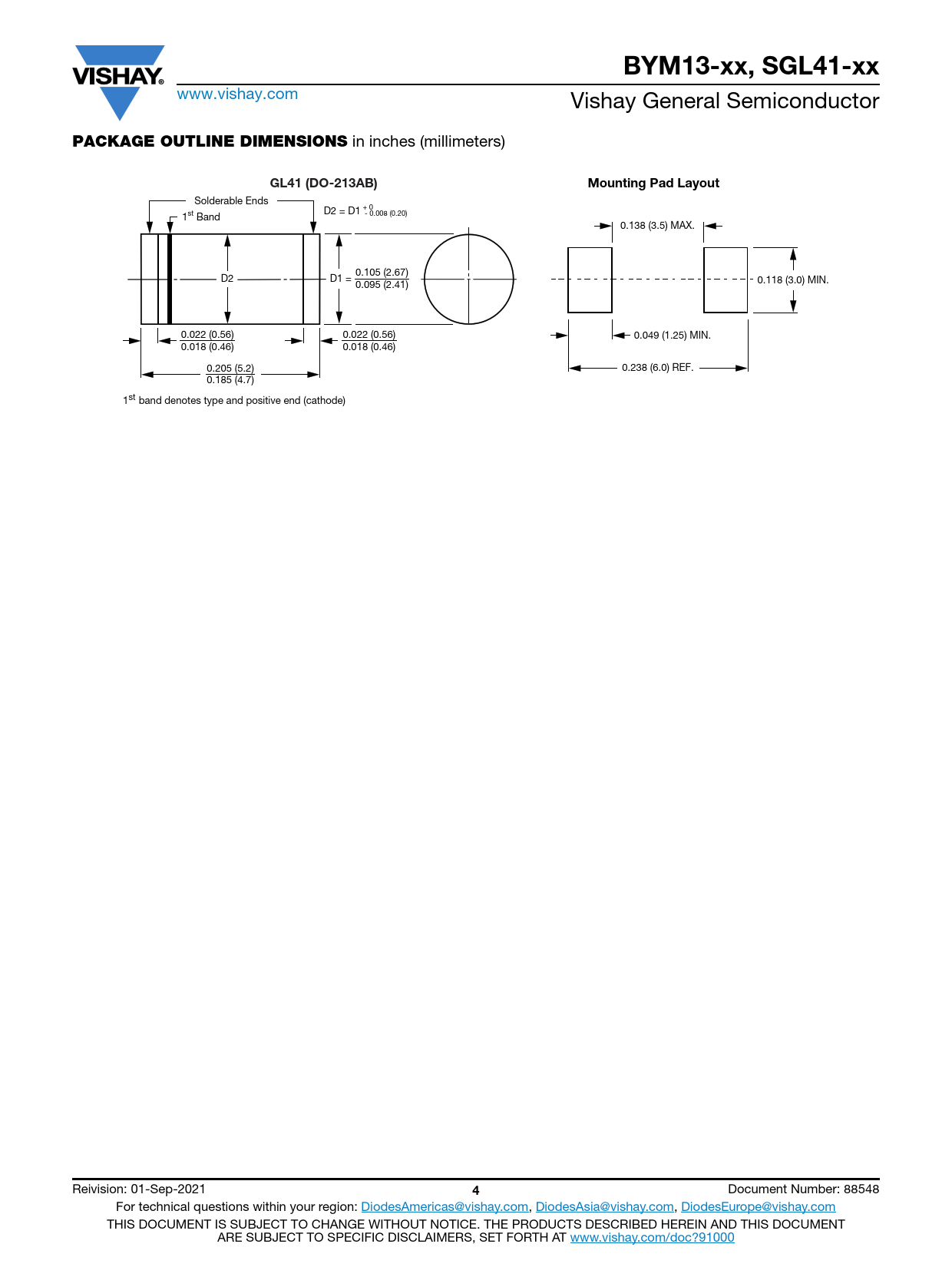

PACKAGE OUTLINE DIMENSIONS
in inches (millimeters) GL41 (DO-213AB) Mounting Pad Layout Solderable Ends D2 = D1 + 0 1st Band - 0.008 (0.20) 0.138 (3.5) MAX. 0.105 (2.67) D2 D1 = 0.118 (3.0) MIN. 0.095 (2.41) 0.022 (0.56) 0.022 (0.56) 0.049 (1.25) MIN. 0.018 (0.46) 0.018 (0.46) 0.205 (5.2) 0.238 (6.0) REF. 0.185 (4.7) 1st band denotes type and positive end (cathode) Reivision: 01-Sep-2021 4 Document Number: 88548 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
