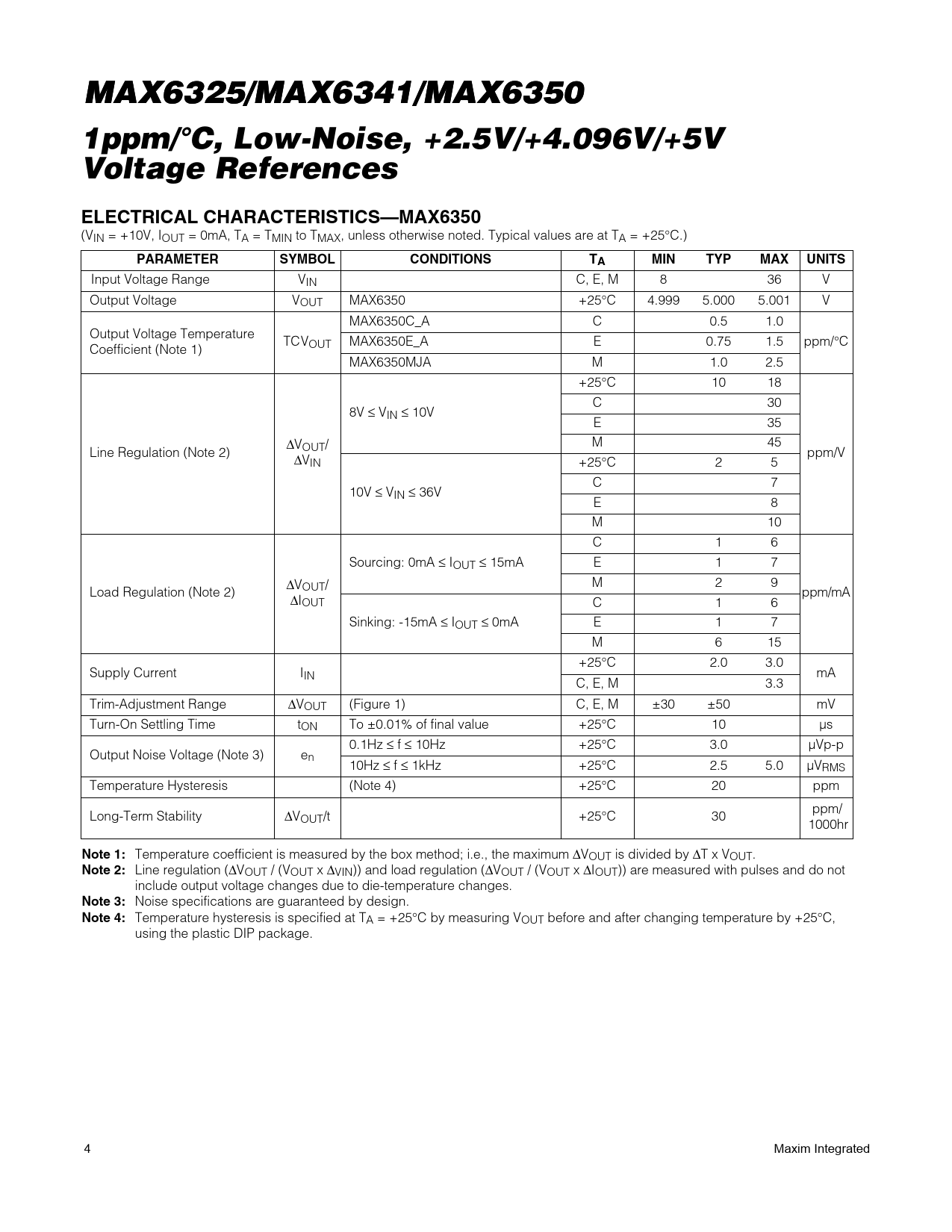

MAX6325/MAX6341/MAX6350 MAX6325/MAX6341/MAX6350
1ppm/°C, Low-Noise, +2.5V/+4.096V/+5V Voltage References ELECTRICAL CHARACTERISTICS—MAX6350
(VIN = +10V, IOUT = 0mA, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.)
PARAMETER SYMBOL CONDITIONS TA MIN TYP MAX UNITS
Input Voltage Range VIN C, E, M 8 36 V Output Voltage VOUT MAX6350 +25°C 4.999 5.000 5.001 V MAX6350C_A C 0.5 1.0 Output Voltage Temperature TCVOUT MAX6350E_A E 0.75 1.5 ppm/°C Coefficient (Note 1) MAX6350MJA M 1.0 2.5 +25°C 10 18 C 30 8V ≤ VIN ≤ 10V E 35 ∆V M 45 Line Regulation (Note 2) OUT/ ∆ ppm/V VIN +25°C 2 5 C 7 10V ≤ VIN ≤ 36V E 8 M 10 C 1 6 Sourcing: 0mA ≤ IOUT ≤ 15mA E 1 7 M 2 9 ∆VOUT/ Load Regulation (Note 2) ppm/mA ∆IOUT C 1 6 Sinking: -15mA ≤ IOUT ≤ 0mA E 1 7 M 6 15 +25°C 2.0 3.0 Supply Current IIN mA C, E, M 3.3 Trim-Adjustment Range ∆VOUT (Figure 1) C, E, M ±30 ±50 mV Turn-On Settling Time tON To ±0.01% of final value +25°C 10 µs 0.1Hz ≤ f ≤ 10Hz +25°C 3.0 µVp-p Output Noise Voltage (Note 3) en 10Hz ≤ f ≤ 1kHz +25°C 2.5 5.0 µVRMS Temperature Hysteresis (Note 4) +25°C 20 ppm ppm/ Long-Term Stability ∆VOUT/t +25°C 30 1000hr
Note 1:
Temperature coefficient is measured by the box method; i.e., the maximum ∆VOUT is divided by ∆T x VOUT.
Note 2:
Line regulation (∆VOUT / (VOUT x ∆VIN)) and load regulation (∆VOUT / (VOUT x ∆IOUT)) are measured with pulses and do not include output voltage changes due to die-temperature changes.
Note 3:
Noise specifications are guaranteed by design.
Note 4:
Temperature hysteresis is specified at TA = +25°C by measuring VOUT before and after changing temperature by +25°C, using the plastic DIP package. 4 Maxim Integrated
