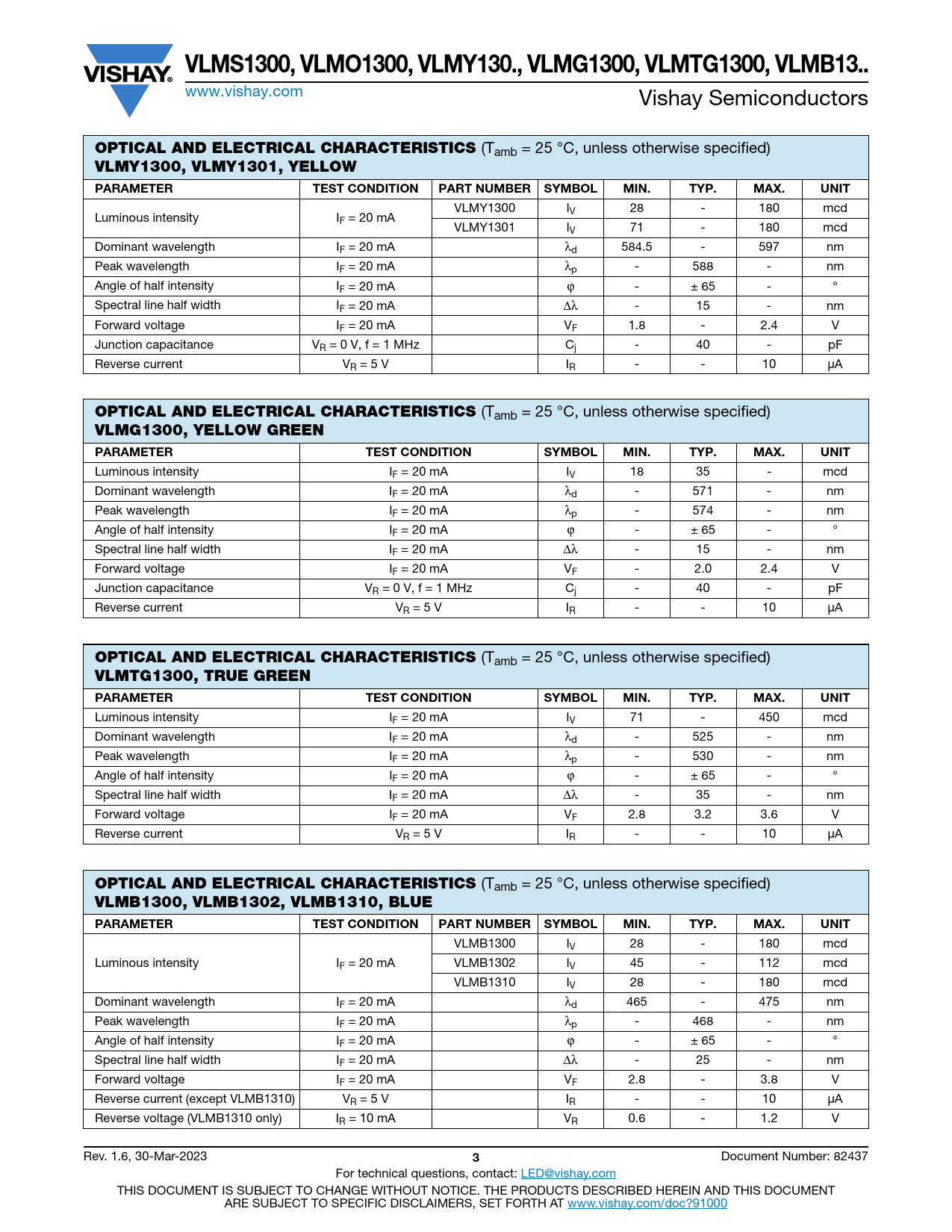

Datasheet VLMS1300 (Vishay) - 3
| Fabricante | Vishay |
| Descripción | Highbright 0603 ChipLED |
| Páginas / Página | 13 / 3 — VLMS1300, VLMO1300, VLMY130., VLMG1300, VLMTG1300, VLMB13.. OPTICAL AND … |
| Formato / tamaño de archivo | PDF / 264 Kb |
| Idioma del documento | Inglés |
VLMS1300, VLMO1300, VLMY130., VLMG1300, VLMTG1300, VLMB13.. OPTICAL AND ELECTRICAL CHARACTERISTICS
Línea de modelo para esta hoja de datos
Versión de texto del documento
VLMS1300, VLMO1300, VLMY130., VLMG1300, VLMTG1300, VLMB13..
www.vishay.com Vishay Semiconductors
OPTICAL AND ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
VLMY1300, VLMY1301, YELLOW PARAMETER TEST CONDITION PART NUMBER SYMBOL MIN. TYP. MAX. UNIT
VLMY1300 IV 28 - 180 mcd Luminous intensity IF = 20 mA VLMY1301 IV 71 - 180 mcd Dominant wavelength IF = 20 mA λd 584.5 - 597 nm Peak wavelength IF = 20 mA λp - 588 - nm Angle of half intensity IF = 20 mA ϕ - ± 65 - ° Spectral line half width IF = 20 mA Δλ - 15 - nm Forward voltage IF = 20 mA VF 1.8 - 2.4 V Junction capacitance VR = 0 V, f = 1 MHz Cj - 40 - pF Reverse current VR = 5 V IR - - 10 μA
OPTICAL AND ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
VLMG1300, YELLOW GREEN PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT
Luminous intensity IF = 20 mA IV 18 35 - mcd Dominant wavelength IF = 20 mA λd - 571 - nm Peak wavelength IF = 20 mA λp - 574 - nm Angle of half intensity IF = 20 mA ϕ - ± 65 - ° Spectral line half width IF = 20 mA Δλ - 15 - nm Forward voltage IF = 20 mA VF - 2.0 2.4 V Junction capacitance VR = 0 V, f = 1 MHz Cj - 40 - pF Reverse current VR = 5 V IR - - 10 μA
OPTICAL AND ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
VLMTG1300, TRUE GREEN PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT
Luminous intensity IF = 20 mA IV 71 - 450 mcd Dominant wavelength IF = 20 mA λd - 525 - nm Peak wavelength IF = 20 mA λp - 530 - nm Angle of half intensity IF = 20 mA ϕ - ± 65 - ° Spectral line half width IF = 20 mA Δλ - 35 - nm Forward voltage IF = 20 mA VF 2.8 3.2 3.6 V Reverse current VR = 5 V IR - - 10 μA
OPTICAL AND ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
VLMB1300, VLMB1302, VLMB1310, BLUE PARAMETER TEST CONDITION PART NUMBER SYMBOL MIN. TYP. MAX. UNIT
VLMB1300 IV 28 - 180 mcd Luminous intensity IF = 20 mA VLMB1302 IV 45 - 112 mcd VLMB1310 IV 28 - 180 mcd Dominant wavelength IF = 20 mA λd 465 - 475 nm Peak wavelength IF = 20 mA λp - 468 - nm Angle of half intensity IF = 20 mA ϕ - ± 65 - ° Spectral line half width IF = 20 mA Δλ - 25 - nm Forward voltage IF = 20 mA VF 2.8 - 3.8 V Reverse current (except VLMB1310) VR = 5 V IR - - 10 μA Reverse voltage (VLMB1310 only) IR = 10 mA VR 0.6 - 1.2 V Rev. 1.6, 30-Mar-2023
3
Document Number: 82437 For technical questions, contact: LED@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay Semiconductors
OPTICAL AND ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
VLMY1300, VLMY1301, YELLOW PARAMETER TEST CONDITION PART NUMBER SYMBOL MIN. TYP. MAX. UNIT
VLMY1300 IV 28 - 180 mcd Luminous intensity IF = 20 mA VLMY1301 IV 71 - 180 mcd Dominant wavelength IF = 20 mA λd 584.5 - 597 nm Peak wavelength IF = 20 mA λp - 588 - nm Angle of half intensity IF = 20 mA ϕ - ± 65 - ° Spectral line half width IF = 20 mA Δλ - 15 - nm Forward voltage IF = 20 mA VF 1.8 - 2.4 V Junction capacitance VR = 0 V, f = 1 MHz Cj - 40 - pF Reverse current VR = 5 V IR - - 10 μA
OPTICAL AND ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
VLMG1300, YELLOW GREEN PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT
Luminous intensity IF = 20 mA IV 18 35 - mcd Dominant wavelength IF = 20 mA λd - 571 - nm Peak wavelength IF = 20 mA λp - 574 - nm Angle of half intensity IF = 20 mA ϕ - ± 65 - ° Spectral line half width IF = 20 mA Δλ - 15 - nm Forward voltage IF = 20 mA VF - 2.0 2.4 V Junction capacitance VR = 0 V, f = 1 MHz Cj - 40 - pF Reverse current VR = 5 V IR - - 10 μA
OPTICAL AND ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
VLMTG1300, TRUE GREEN PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT
Luminous intensity IF = 20 mA IV 71 - 450 mcd Dominant wavelength IF = 20 mA λd - 525 - nm Peak wavelength IF = 20 mA λp - 530 - nm Angle of half intensity IF = 20 mA ϕ - ± 65 - ° Spectral line half width IF = 20 mA Δλ - 35 - nm Forward voltage IF = 20 mA VF 2.8 3.2 3.6 V Reverse current VR = 5 V IR - - 10 μA
OPTICAL AND ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
VLMB1300, VLMB1302, VLMB1310, BLUE PARAMETER TEST CONDITION PART NUMBER SYMBOL MIN. TYP. MAX. UNIT
VLMB1300 IV 28 - 180 mcd Luminous intensity IF = 20 mA VLMB1302 IV 45 - 112 mcd VLMB1310 IV 28 - 180 mcd Dominant wavelength IF = 20 mA λd 465 - 475 nm Peak wavelength IF = 20 mA λp - 468 - nm Angle of half intensity IF = 20 mA ϕ - ± 65 - ° Spectral line half width IF = 20 mA Δλ - 25 - nm Forward voltage IF = 20 mA VF 2.8 - 3.8 V Reverse current (except VLMB1310) VR = 5 V IR - - 10 μA Reverse voltage (VLMB1310 only) IR = 10 mA VR 0.6 - 1.2 V Rev. 1.6, 30-Mar-2023
3
Document Number: 82437 For technical questions, contact: LED@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
