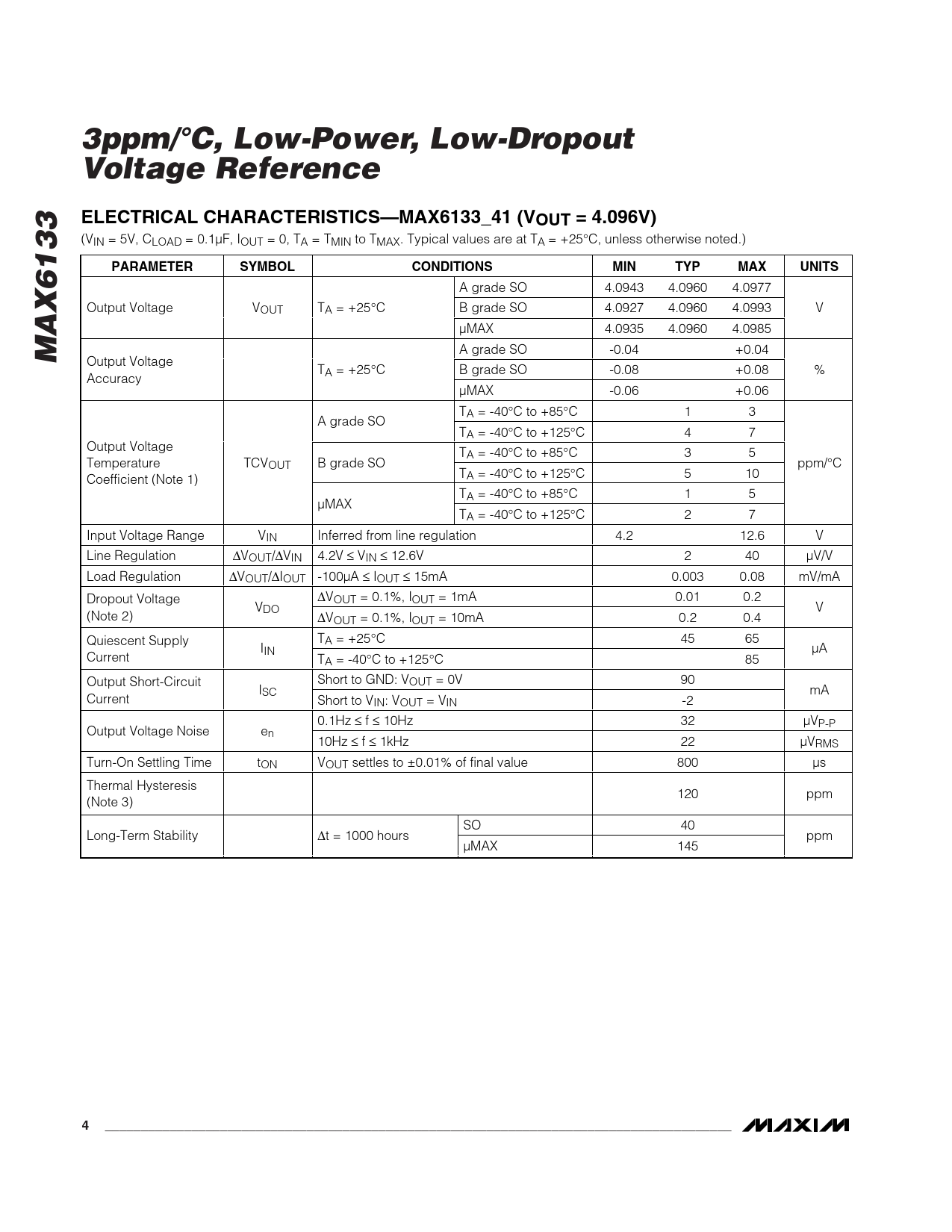

3ppm/°C, Low-Power, Low-Dropout Voltage Reference ELECTRICAL CHARACTERISTICS—MAX6133_41 (VOUT = 4.096V)
(VIN = 5V, CLOAD = 0.1µF, IOUT = 0, TA = TMIN to TMAX. Typical values are at TA = +25°C, unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
A grade SO 4.0943 4.0960 4.0977 Output Voltage VOUT TA = +25°C B grade SO 4.0927 4.0960 4.0993 V µMAX 4.0935 4.0960 4.0985
MAX6133
A grade SO -0.04 +0.04 Output Voltage TA = +25°C B grade SO -0.08 +0.08 % Accuracy µMAX -0.06 +0.06 TA = -40°C to +85°C 1 3 A grade SO TA = -40°C to +125°C 4 7 Output Voltage TA = -40°C to +85°C 3 5 Temperature TCVOUT B grade SO ppm/°C TA = -40°C to +125°C 5 10 Coefficient (Note 1) TA = -40°C to +85°C 1 5 µMAX TA = -40°C to +125°C 2 7 Input Voltage Range VIN Inferred from line regulation 4.2 12.6 V Line Regulation ∆VOUT/∆VIN 4.2V ≤ VIN ≤ 12.6V 2 40 µV/V Load Regulation ∆VOUT/∆IOUT -100µA ≤ IOUT ≤ 15mA 0.003 0.08 mV/mA Dropout Voltage ∆VOUT = 0.1%, IOUT = 1mA 0.01 0.2 VDO V (Note 2) ∆VOUT = 0.1%, IOUT = 10mA 0.2 0.4 Quiescent Supply TA = +25°C 45 65 IIN µA Current TA = -40°C to +125°C 85 Output Short-Circuit Short to GND: VOUT = 0V 90 ISC mA Current Short to VIN: VOUT = VIN -2 0.1Hz ≤ f ≤ 10Hz 32 µVP-P Output Voltage Noise en 10Hz ≤ f ≤ 1kHz 22 µVRMS Turn-On Settling Time tON VOUT settles to ±0.01% of final value 800 µs Thermal Hysteresis 120 ppm (Note 3) SO 40 Long-Term Stability ∆t = 1000 hours ppm µMAX 145
