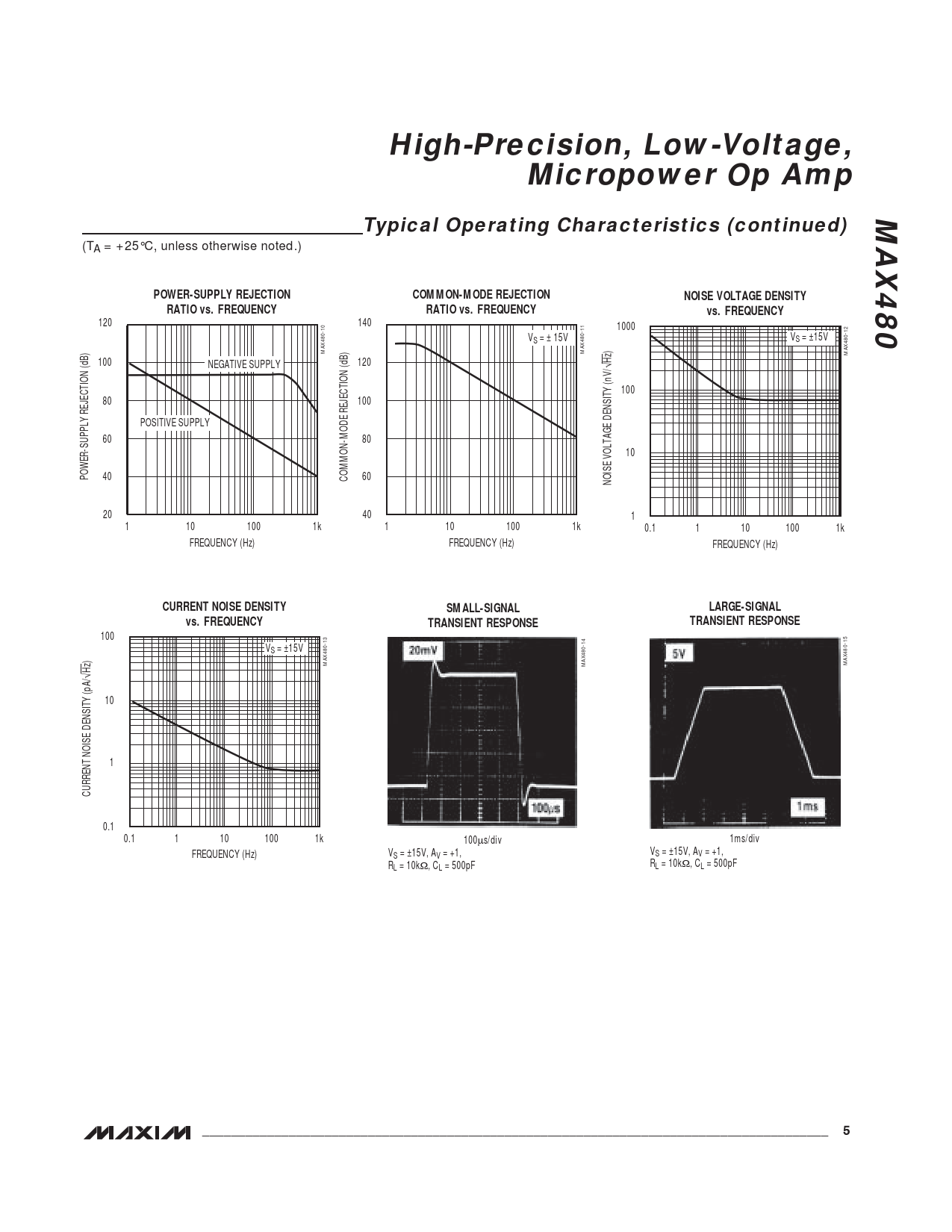

High-Precision, Low-Voltage,. Micropower Op Amp. MAX480. Typical Operating Characteristics (continued). POWER-SUPPLY REJECTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
High-Precision, Low-Voltage, Micropower Op Amp MAX480 Typical Operating Characteristics (continued)
(TA = +25°C, unless otherwise noted.)
POWER-SUPPLY REJECTION COMMON-MODE REJECTION NOISE VOLTAGE DENSITY RATIO vs. FREQUENCY RATIO vs. FREQUENCY vs. FREQUENCY
120 140 1000 VS = ± 15V VS = ±15V MAX480-10 MAX480-11 MAX480-12 100 NEGATIVE SUPPLY 120 √Hz) 100 80 100 POSITIVE SUPPLY 60 80 10 POWER-SUPPLY REJECTION (dB) 40 COMMON-MODE REJECTION (dB) 60 NOISE VOLTAGE DENSITY (nV/ 20 40 1 1 10 100 1k 1 10 100 1k 0.1 1 10 100 1k FREQUENCY (Hz) FREQUENCY (Hz) FREQUENCY (Hz)
CURRENT NOISE DENSITY SMALL-SIGNAL LARGE-SIGNAL vs. FREQUENCY TRANSIENT RESPONSE TRANSIENT RESPONSE
100 VS = ±15V MAX480-13 MAX480-14 MAX480-15 √Hz) 10 1 CURRENT NOISE DENSITY (pA/ 0.1 0.1 1 10 100 1k 100μs/div 1ms/div FREQUENCY (Hz) VS = ±15V, AV = +1, VS = ±15V, AV = +1, RL = 10kΩ, CL = 500pF RL = 10kΩ, CL = 500pF
_______________________________________________________________________________________ 5
(TA = +25°C, unless otherwise noted.)
POWER-SUPPLY REJECTION COMMON-MODE REJECTION NOISE VOLTAGE DENSITY RATIO vs. FREQUENCY RATIO vs. FREQUENCY vs. FREQUENCY
120 140 1000 VS = ± 15V VS = ±15V MAX480-10 MAX480-11 MAX480-12 100 NEGATIVE SUPPLY 120 √Hz) 100 80 100 POSITIVE SUPPLY 60 80 10 POWER-SUPPLY REJECTION (dB) 40 COMMON-MODE REJECTION (dB) 60 NOISE VOLTAGE DENSITY (nV/ 20 40 1 1 10 100 1k 1 10 100 1k 0.1 1 10 100 1k FREQUENCY (Hz) FREQUENCY (Hz) FREQUENCY (Hz)
CURRENT NOISE DENSITY SMALL-SIGNAL LARGE-SIGNAL vs. FREQUENCY TRANSIENT RESPONSE TRANSIENT RESPONSE
100 VS = ±15V MAX480-13 MAX480-14 MAX480-15 √Hz) 10 1 CURRENT NOISE DENSITY (pA/ 0.1 0.1 1 10 100 1k 100μs/div 1ms/div FREQUENCY (Hz) VS = ±15V, AV = +1, VS = ±15V, AV = +1, RL = 10kΩ, CL = 500pF RL = 10kΩ, CL = 500pF
_______________________________________________________________________________________ 5
