Datasheet TLV9152 (Texas Instruments) - 5
| Fabricante | Texas Instruments |
| Descripción | Dual, 16-v, 4.5-mhz, Low-power Operational Amplifier |
| Páginas / Página | 82 / 5 — TLV9151,. TLV9152, TL. V9154. www.ti.com. Figure 5-3. TLV9151S DBV … |
| Formato / tamaño de archivo | PDF / 6.5 Mb |
| Idioma del documento | Inglés |
TLV9151,. TLV9152, TL. V9154. www.ti.com. Figure 5-3. TLV9151S DBV Package. 6-Pin SOT-23. (Top View)
Línea de modelo para esta hoja de datos
Versión de texto del documento
TLV9151, TLV9152, TL V9154 www.ti.com
SBOS986E – OCTOBER 2019 – REVISED JANUARY 2022 OUT 1 6 V+ V– 2 5 SHDN +IN 3 4 –IN Not to scale

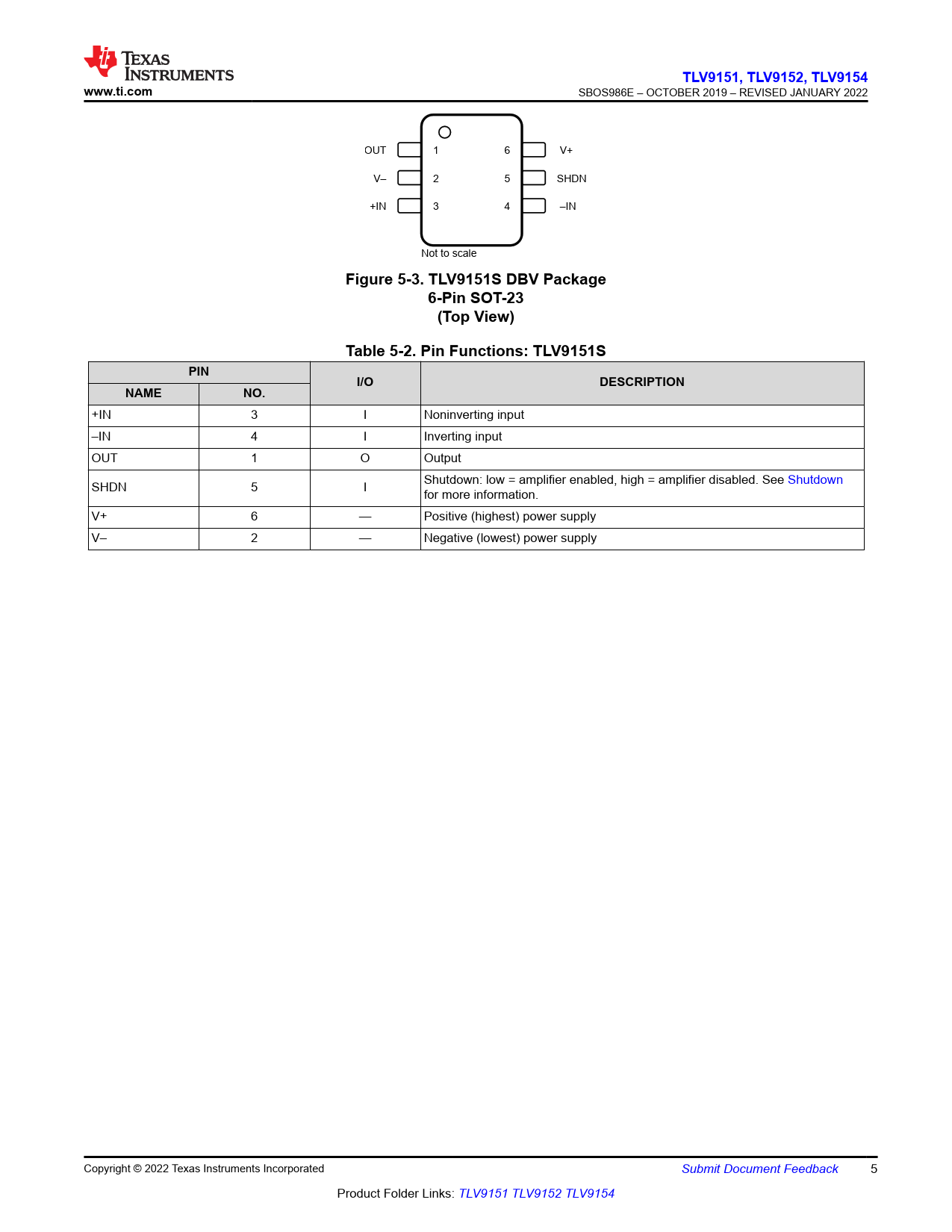

Figure 5-3. TLV9151S DBV Package 6-Pin SOT-23 (Top View) Table 5-2. Pin Functions: TLV9151S PIN I/O DESCRIPTION NAME NO.
+IN 3 I Noninverting input –IN 4 I Inverting input OUT 1 O Output Shutdown: low = amplifier enabled, high = amplifier disabled. See Shutdown SHDN 5 I for more information. V+ 6 — Positive (highest) power supply V– 2 — Negative (lowest) power supply Copyright © 2022 Texas Instruments Incorporated Submit Document Feedback 5 Product Folder Links: TLV9151 TLV9152 TLV9154 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information for Single Channel 6.5 Thermal Information for Dual Channel 6.6 Thermal Information for Quad Channel 6.7 Electrical Characteristics 6.8 Typical Characteristics 7 Detailed Description 7.1 Overview 7.2 Functional Block Diagram 7.3 Feature Description 7.3.1 EMI Rejection 7.3.2 Thermal Protection 7.3.3 Capacitive Load and Stability 7.3.4 Common-Mode Voltage Range 7.3.5 Phase Reversal Protection 7.3.6 Electrical Overstress 7.3.7 Overload Recovery 7.3.8 Typical Specifications and Distributions 7.3.9 Packages With an Exposed Thermal Pad 7.3.10 Shutdown 7.4 Device Functional Modes 8 Application and Implementation 8.1 Application Information 8.2 Typical Applications 8.2.1 Low-Side Current Measurement 8.2.1.1 Design Requirements 8.2.1.2 Detailed Design Procedure 8.2.1.3 Application Curves 9 Power Supply Recommendations 10 Layout 10.1 Layout Guidelines 10.2 Layout Example 11 Device and Documentation Support 11.1 Device Support 11.1.1 Development Support 11.1.1.1 TINA-TI™ (Free Software Download) 11.1.1.2 TI Precision Designs 11.2 Documentation Support 11.2.1 Related Documentation 11.3 Receiving Notification of Documentation Updates 11.4 Support Resources 11.5 Trademarks 11.6 Electrostatic Discharge Caution 11.7 Glossary 12 Mechanical, Packaging, and Orderable Information
