Electrical Characteristics—MAX6225 (continued). PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS
Línea de modelo para esta hoja de datos
- MAX6225ACPA+ MAX6225ACSA+ MAX6225ACSA+T MAX6225AESA+ MAX6225AESA+T MAX6225AMJA MAX6225BCPA+ MAX6225BCSA+ MAX6225BCSA+T MAX6225BEPA+ MAX6225BESA+ MAX6225BESA+T
Versión de texto del documento

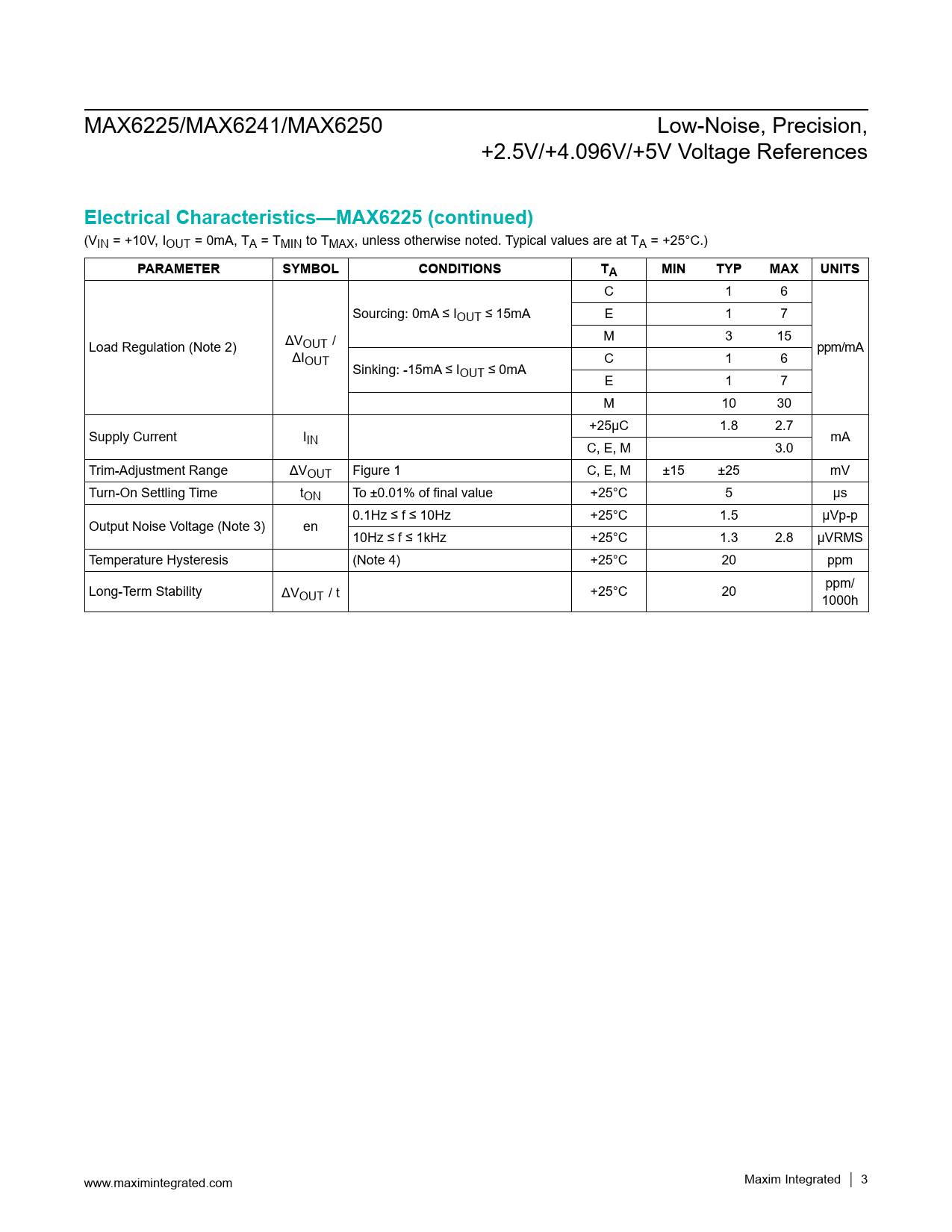

MAX6225/MAX6241/MAX6250 Low-Noise, Precision, +2.5V/+4.096V/+5V Voltage References
Electrical Characteristics—MAX6225 (continued)
(VIN = +10V, IOUT = 0mA, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.)
PARAMETER SYMBOL CONDITIONS TA MIN TYP MAX UNITS
C 1 6 Sourcing: 0mA ≤ IOUT ≤ 15mA E 1 7 M 3 15 Load Regulation (Note 2) ΔVOUT / ppm/mA ΔIOUT C 1 6 Sinking: -15mA ≤ IOUT ≤ 0mA E 1 7 M 10 30 +25µC 1.8 2.7 Supply Current IIN mA C, E, M 3.0 Trim-Adjustment Range ΔVOUT Figure 1 C, E, M ±15 ±25 mV Turn-On Settling Time tON To ±0.01% of final value +25°C 5 µs 0.1Hz ≤ f ≤ 10Hz +25°C 1.5 µVp-p Output Noise Voltage (Note 3) en 10Hz ≤ f ≤ 1kHz +25°C 1.3 2.8 µVRMS Temperature Hysteresis (Note 4) +25°C 20 ppm Long-Term Stability ΔVOUT / t +25°C 20 ppm/ 1000h www.maximintegrated.com Maxim Integrated │ 3
Electrical Characteristics—MAX6225 (continued)
(VIN = +10V, IOUT = 0mA, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.)
PARAMETER SYMBOL CONDITIONS TA MIN TYP MAX UNITS
C 1 6 Sourcing: 0mA ≤ IOUT ≤ 15mA E 1 7 M 3 15 Load Regulation (Note 2) ΔVOUT / ppm/mA ΔIOUT C 1 6 Sinking: -15mA ≤ IOUT ≤ 0mA E 1 7 M 10 30 +25µC 1.8 2.7 Supply Current IIN mA C, E, M 3.0 Trim-Adjustment Range ΔVOUT Figure 1 C, E, M ±15 ±25 mV Turn-On Settling Time tON To ±0.01% of final value +25°C 5 µs 0.1Hz ≤ f ≤ 10Hz +25°C 1.5 µVp-p Output Noise Voltage (Note 3) en 10Hz ≤ f ≤ 1kHz +25°C 1.3 2.8 µVRMS Temperature Hysteresis (Note 4) +25°C 20 ppm Long-Term Stability ΔVOUT / t +25°C 20 ppm/ 1000h www.maximintegrated.com Maxim Integrated │ 3
