| Fabricante | Analog Devices |
| Descripción | Silicon SPST Switch, NonReflective, 100 MHz to 55 GHz |
| Páginas / Página | 12 / 8 — ADRF5010. TYPICAL PERFORMANCE CHARACTERISTICS. INSERTION LOSS, RETURN … |
| Formato / tamaño de archivo | PDF / 665 Kb |
| Idioma del documento | Inglés |
ADRF5010. TYPICAL PERFORMANCE CHARACTERISTICS. INSERTION LOSS, RETURN LOSS, AND ISOLATION
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet
ADRF5010 TYPICAL PERFORMANCE CHARACTERISTICS INSERTION LOSS, RETURN LOSS, AND ISOLATION
VDD = 3.3 V, VSS = −3.3 V, VCTRL = 0 V or VDD, TCASE = 25°C, 50 Ω system, unless otherwise noted.

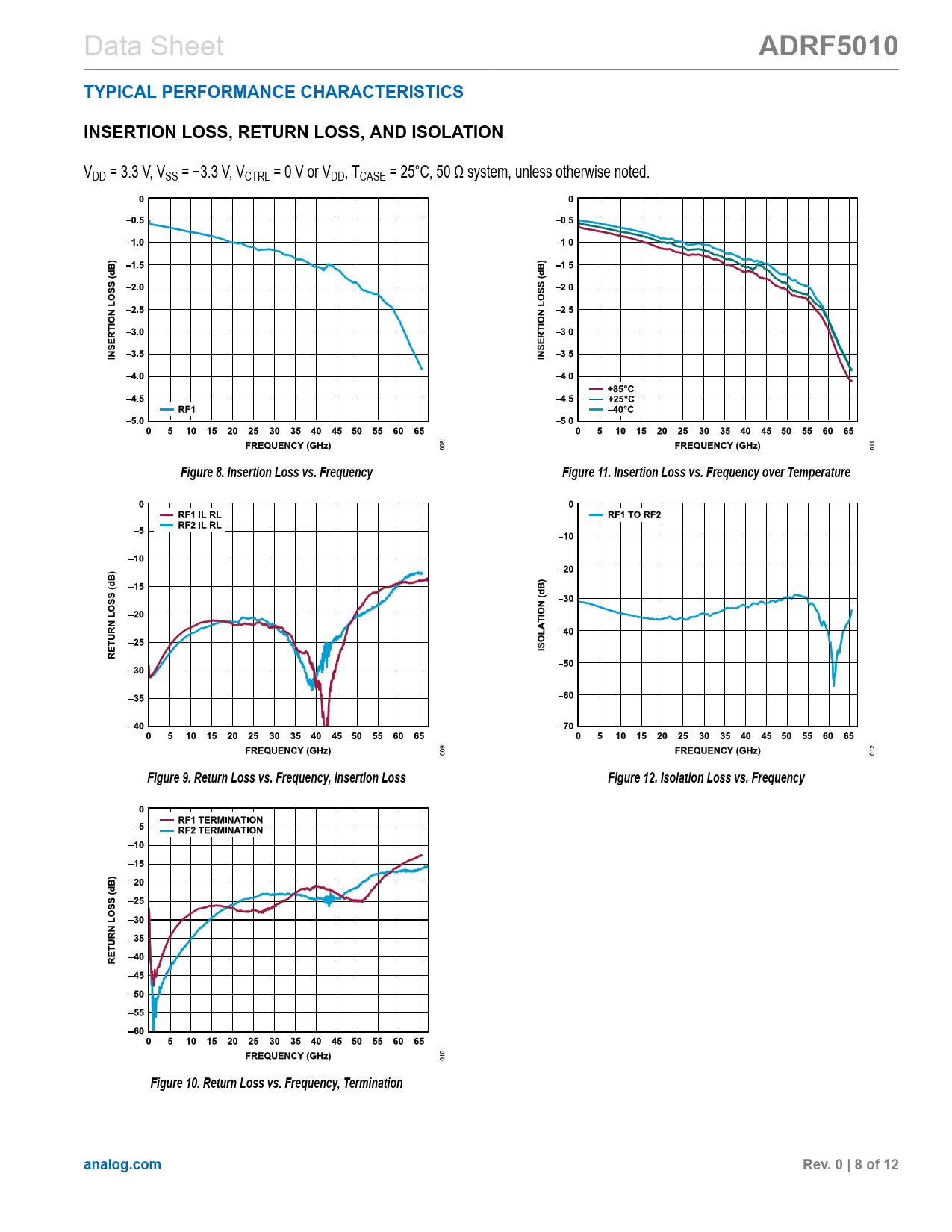

Figure 8. Insertion Loss vs. Frequency Figure 11. Insertion Loss vs. Frequency over Temperature Figure 9. Return Loss vs. Frequency, Insertion Loss Figure 12. Isolation Loss vs. Frequency Figure 10. Return Loss vs. Frequency, Termination analog.com Rev. 0 | 8 of 12
