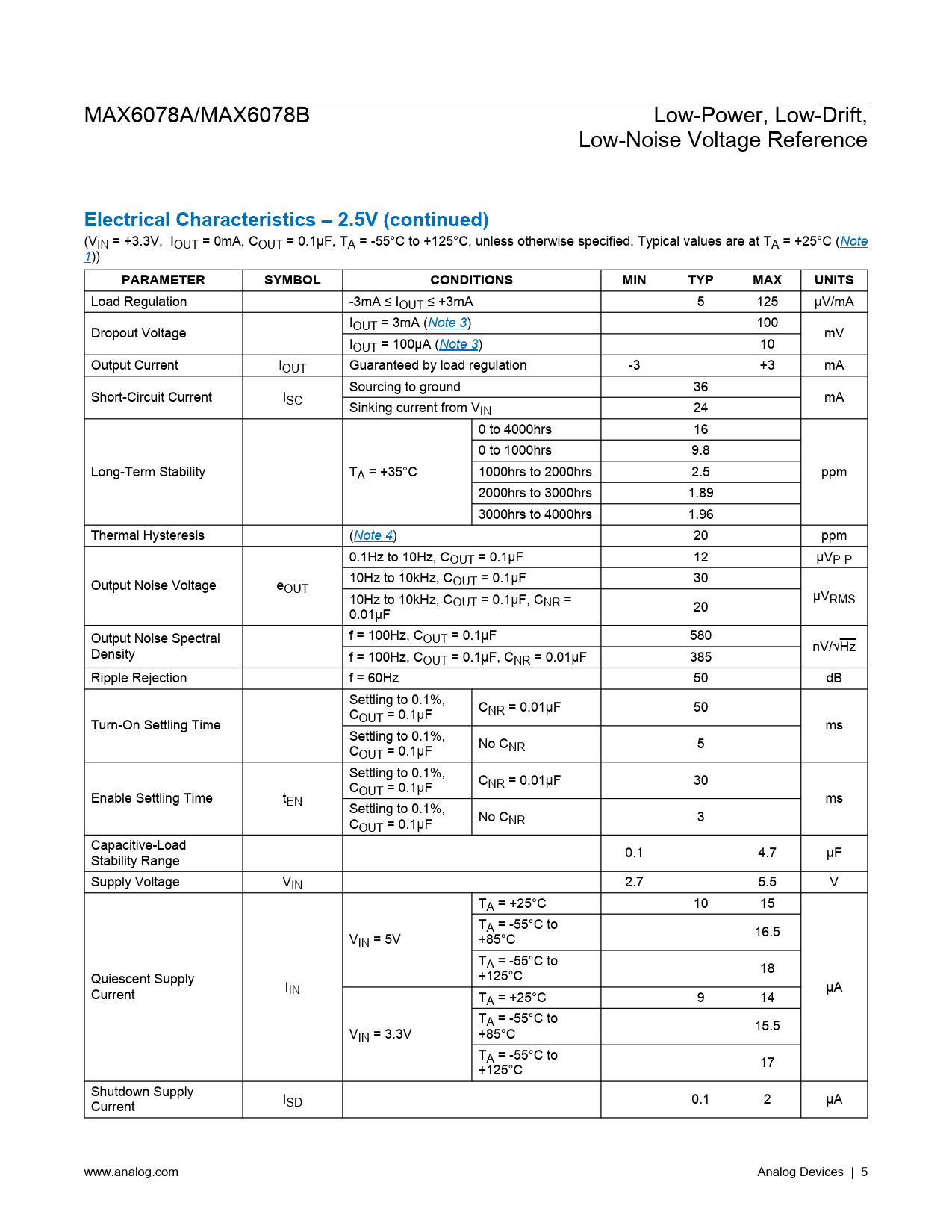

link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 MAX6078A/MAX6078B Low-Power, Low-Drift, Low-Noise Voltage Reference
Electrical Characteristics – 2.5V (continued)
(VIN = +3.3V, IOUT = 0mA, COUT = 0.1µF, TA = -55°C to +125°C, unless otherwise specified. Typical values are at TA = +25°C (Note 1))
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Load Regulation -3mA ≤ IOUT ≤ +3mA 5 125 µV/mA I Dropout Voltage OUT = 3mA (Note 3) 100 mV IOUT = 100µA (Note 3) 10 Output Current IOUT Guaranteed by load regulation -3 +3 mA Sourcing to ground 36 Short-Circuit Current ISC mA Sinking current from VIN 24 0 to 4000hrs 16 0 to 1000hrs 9.8 Long-Term Stability TA = +35°C 1000hrs to 2000hrs 2.5 ppm 2000hrs to 3000hrs 1.89 3000hrs to 4000hrs 1.96 Thermal Hysteresis (Note 4) 20 ppm 0.1Hz to 10Hz, COUT = 0.1µF 12 µVP-P 10Hz to 10kHz, C Output Noise Voltage e OUT = 0.1μF 30 OUT µV 10Hz to 10kHz, C RMS OUT = 0.1μF, CNR = 20 0.01µF Output Noise Spectral f = 100Hz, COUT = 0.1µF 580 nV/√Hz Density f = 100Hz, COUT = 0.1μF, CNR = 0.01μF 385 Ripple Rejection f = 60Hz 50 dB Settling to 0.1%, C C NR = 0.01μF 50 Turn-On Settling Time OUT = 0.1μF ms Settling to 0.1%, No C C NR 5 OUT = 0.1μF Settling to 0.1%, C C NR = 0.01μF 30 Enable Settling Time t OUT = 0.1μF EN ms Settling to 0.1%, No C C NR 3 OUT = 0.1µF Capacitive-Load 0.1 4.7 µF Stability Range Supply Voltage VIN 2.7 5.5 V TA = +25°C 10 15 TA = -55°C to 16.5 VIN = 5V +85°C TA = -55°C to 18 Quiescent Supply +125°C I μA Current IN TA = +25°C 9 14 TA = -55°C to 15.5 VIN = 3.3V +85°C TA = -55°C to 17 +125°C Shutdown Supply I Current SD 0.1 2 µA www.analog.com Analog Devices | 5 Document Outline General Description Applications Benefits and Features Simplified Block Diagram Absolute Maximum Ratings Package Information 8 TDFN 8 WLP Electrical Characteristics – 2.5V Electrical Characteristics – 2.5V (continued) Electrical Characteristics – 3.0V Electrical Characteristics – 3.0V (continued) Electrical Characteristics – 3.3V Electrical Characteristics – 3.3V (continued) Electrical Characteristics – 5.0V Electrical Characteristics – 5.0V (continued) Typical Operating Characteristics Typical Operating Characteristics (continued) Pin Configurations 6 WLP 8 TDFN-EP Pin Description Pin Description (continued) Typical Operating Circuit Detailed Description Wideband Noise Reduction (NR) Output Bypassing Turn-On Time Output Force and Sense Shutdown Thermal Hysteresis Applications Information Precision Current Source Ordering Information Revision History
