Datasheet MAX6120 (Analog Devices)

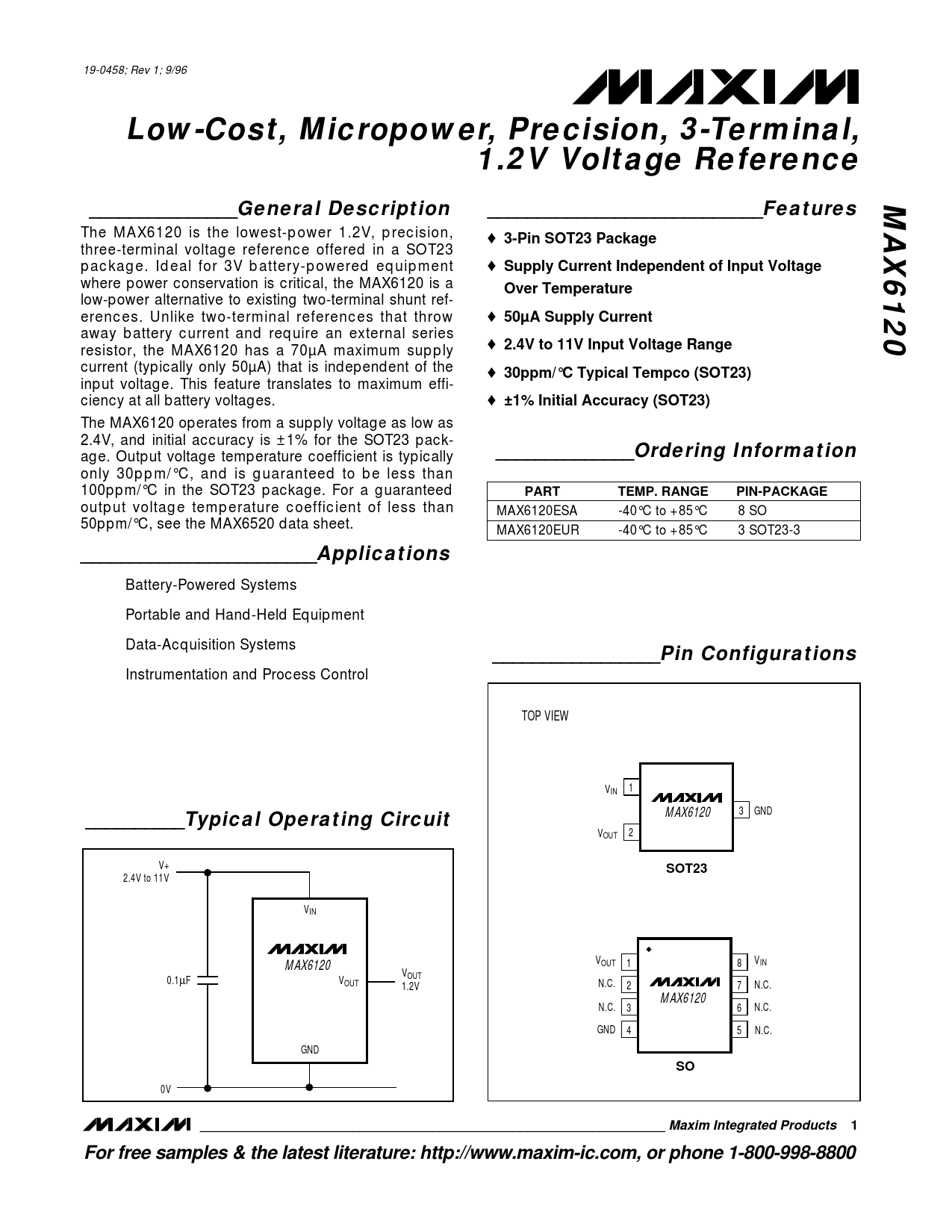

19-0458; Rev 1; 9/96
Low-Cost, Micropower, Precision, 3-Terminal, 1.2V Voltage Reference MAX6120 _______________General Description ____________________________Features
The MAX6120 is the lowest-power 1.2V, precision, ♦
3-Pin SOT23 Package
three-terminal voltage reference offered in a SOT23 package. Ideal for 3V battery-powered equipment ♦
Supply Current Independent of Input Voltage
where power conservation is critical, the MAX6120 is a
Over Temperature
low-power alternative to existing two-terminal shunt ref- erences. Unlike two-terminal references that throw ♦
50µA Supply Current
away battery current and require an external series resistor, the MAX6120 has a 70µA maximum supply ♦
2.4V to 11V Input Voltage Range
current (typically only 50µA) that is independent of the ♦
30ppm/°C Typical Tempco (SOT23)
input voltage. This feature translates to maximum effi- ciency at all battery voltages. ♦
±1% Initial Accuracy (SOT23)
The MAX6120 operates from a supply voltage as low as 2.4V, and initial accuracy is ±1% for the SOT23 pack- age. Output voltage temperature coefficient is typically
______________Ordering Information
only 30ppm/°C, and is guaranteed to be less than 100ppm/°C in the SOT23 package. For a guaranteed
PART TEMP. RANGE PIN-PACKAGE
output voltage temperature coefficient of less than MAX6120ESA -40°C to +85°C 8 SO 50ppm/°C, see the MAX6520 data sheet. MAX6120EUR -40°C to +85°C 3 SOT23-3
________________________Applications
Battery-Powered Systems Portable and Hand-Held Equipment Data-Acquisition Systems
_________________Pin Configurations
Instrumentation and Process Control TOP VIEW V 1 IN 3 GND MAX6120
__________Typical Operating Circuit
V 2 OUT V+
SOT23
2.4V to 11V VIN VOUT 1 8 VIN MAX6120 V 0.1µF V OUT OUT N.C. 1.2V 2 7 N.C. MAX6120 N.C. 3 6 N.C. GND 4 5 N.C. GND
SO
0V
________________________________________________________________ Maxim Integrated Products 1 For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800
