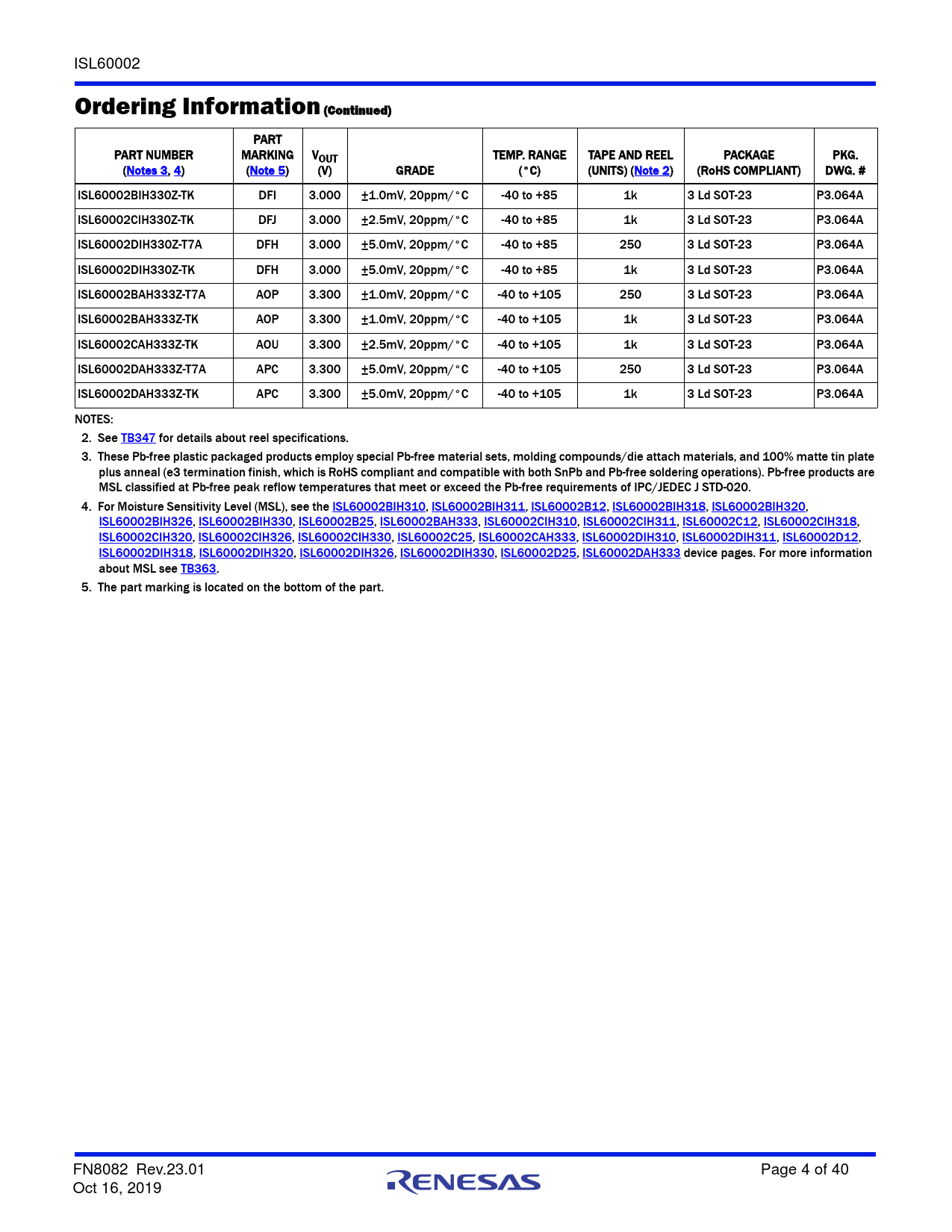

ISL60002 Ordering Information (Continued) PART PART NUMBER MARKING VOUT TEMP. RANGE TAPE AND REEL PACKAGE PKG. (Notes 3, 4) (Note 5) (V) GRADE (°C) (UNITS) (Note 2) (RoHS COMPLIANT) DWG. # ISL60002BIH330Z-TK DFI 3.000 ±1.0mV, 20ppm/°C -40 to +85 1k 3 Ld SOT-23 P3.064A ISL60002CIH330Z-TK DFJ 3.000 ±2.5mV, 20ppm/°C -40 to +85 1k 3 Ld SOT-23 P3.064A ISL60002DIH330Z-T7A DFH 3.000 ±5.0mV, 20ppm/°C -40 to +85 250 3 Ld SOT-23 P3.064A ISL60002DIH330Z-TK DFH 3.000 ±5.0mV, 20ppm/°C -40 to +85 1k 3 Ld SOT-23 P3.064A ISL60002BAH333Z-T7A AOP 3.300 ±1.0mV, 20ppm/°C -40 to +105 250 3 Ld SOT-23 P3.064A ISL60002BAH333Z-TK AOP 3.300 ±1.0mV, 20ppm/°C -40 to +105 1k 3 Ld SOT-23 P3.064A ISL60002CAH333Z-TK AOU 3.300 ±2.5mV, 20ppm/°C -40 to +105 1k 3 Ld SOT-23 P3.064A ISL60002DAH333Z-T7A APC 3.300 ±5.0mV, 20ppm/°C -40 to +105 250 3 Ld SOT-23 P3.064A ISL60002DAH333Z-TK APC 3.300 ±5.0mV, 20ppm/°C -40 to +105 1k 3 Ld SOT-23 P3.064A NOTES: 2. See TB347 for details about reel specifications. 3. These Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020. 4. For Moisture Sensitivity Level (MSL), see the ISL60002BIH310, ISL60002BIH311, ISL60002B12, ISL60002BIH318, ISL60002BIH320, ISL60002BIH326, ISL60002BIH330, ISL60002B25, ISL60002BAH333, ISL60002CIH310, ISL60002CIH311, ISL60002C12, ISL60002CIH318, ISL60002CIH320, ISL60002CIH326, ISL60002CIH330, ISL60002C25, ISL60002CAH333, ISL60002DIH310, ISL60002DIH311, ISL60002D12, ISL60002DIH318, ISL60002DIH320, ISL60002DIH326, ISL60002DIH330, ISL60002D25, ISL60002DAH333 device pages. For more information about MSL see TB363. 5. The part marking is located on the bottom of the part. FN8082 Rev.23.01 Page 4 of 40 Oct 16, 2019 Document Outline Applications Features Related Literature Table of Contents Pin Configuration Pin Descriptions Ordering Information Absolute Maximum Ratings Thermal Information Environmental Operating Conditions Recommended Operating Conditions Electrical Specifications ISL60002-10, VOUT = 1.024V Electrical Specifications ISL60002-11, VOUT = 1.200V Electrical Specifications ISL60002-12, VOUT = 1.250V Electrical Specifications ISL60002-18, VOUT = 1.800V Electrical Specifications ISL60002-20, VOUT = 2.048V Electrical Specifications ISL60002-25, VOUT = 2.500V Electrical Specifications ISL60002-26, VOUT = 2.600V Electrical Specifications ISL60002-30, VOUT = 3.000V Electrical Specifications ISL60002-33, VOUT = 3.300V Common Electrical Specifications ISL60002 -10, -11, -12, -18, -20, and -25 Typical Performance Characteristic Curves, VOUT = 1.024V Typical Performance Characteristic Curves, VOUT = 1.20V Typical Performance Characteristic Curves, VOUT = 1.25V Typical Performance Curves, VOUT = 1.8V Typical Performance Curves, VOUT = 2.048V Typical Performance Characteristic Curves, VOUT = 2.50V Typical Performance Characteristic Curves, VOUT = 3.0V Typical Performance Characteristic Curves, VOUT = 3.3V High Current Application Applications Information FGA Technology Nanopower Operation Board Mounting Considerations Board Assembly Considerations Special Applications Considerations Noise Performance and Reduction Turn-On Time Temperature Coefficient Typical Application Circuits Revision History Package Outline Drawing
