Datasheet ISL21080 (Renesas) - 5

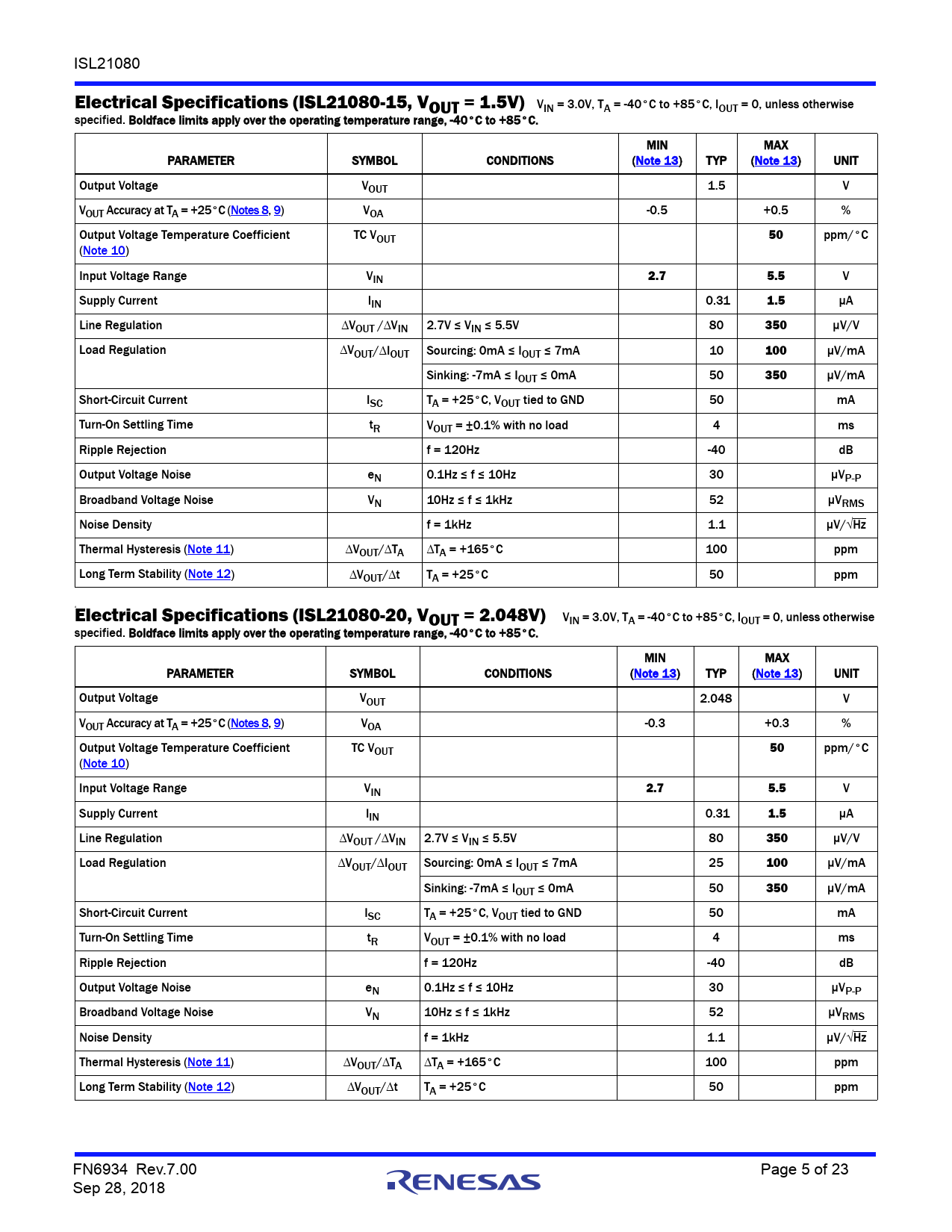

link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 ISL21080 Electrical Specifications (ISL21080-15, VOUT = 1.5V) VIN = 3.0V, TA = -40°C to +85°C, IOUT = 0, unless otherwise specified. Boldface limits apply over the operating temperature range, -40°C to +85°C. MIN MAX PARAMETER SYMBOL CONDITIONS (Note 13) TYP (Note 13) UNIT Output Voltage VOUT 1.5 V VOUT Accuracy at TA = +25°C (Notes 8, 9) VOA -0.5 +0.5 % Output Voltage Temperature Coefficient TC VOUT 50 ppm/°C (Note 10) Input Voltage Range VIN 2.7 5.5 V Supply Current IIN 0.31 1.5 µA Line Regulation VOUT /VIN 2.7V ≤ VIN ≤ 5.5V 80 350 µV/V Load Regulation VOUT/IOUT Sourcing: 0mA ≤ IOUT ≤ 7mA 10 100 µV/mA Sinking: -7mA ≤ IOUT≤ 0mA 50 350 µV/mA Short-Circuit Current ISC TA = +25°C, VOUT tied to GND 50 mA Turn-On Settling Time tR VOUT = ±0.1% with no load 4 ms Ripple Rejection f = 120Hz -40 dB Output Voltage Noise eN 0.1Hz ≤ f ≤10Hz 30 µVP-P Broadband Voltage Noise VN 10Hz ≤ f ≤1kHz 52 µVRMS Noise Density f = 1kHz 1.1 µV/Hz Thermal Hysteresis (Note 11) VOUT/TA TA = +165°C 100 ppm Long Term Stability (Note 12) VOUT/t TA = +25°C 50 ppm d Electrical Specifications (ISL21080-20, VOUT = 2.048V) VIN = 3.0V, TA = -40°C to +85°C, IOUT = 0, unless otherwise specified. Boldface limits apply over the operating temperature range, -40°C to +85°C. MIN MAX PARAMETER SYMBOL CONDITIONS (Note 13) TYP (Note 13) UNIT Output Voltage VOUT 2.048 V VOUT Accuracy at TA = +25°C (Notes 8, 9) VOA -0.3 +0.3 % Output Voltage Temperature Coefficient TC VOUT 50 ppm/°C (Note 10) Input Voltage Range VIN 2.7 5.5 V Supply Current IIN 0.31 1.5 µA Line Regulation VOUT /VIN 2.7V ≤ VIN ≤ 5.5V 80 350 µV/V Load Regulation VOUT/IOUT Sourcing: 0mA ≤ IOUT ≤ 7mA 25 100 µV/mA Sinking: -7mA ≤ IOUT≤ 0mA 50 350 µV/mA Short-Circuit Current ISC TA = +25°C, VOUT tied to GND 50 mA Turn-On Settling Time tR VOUT = ±0.1% with no load 4 ms Ripple Rejection f = 120Hz -40 dB Output Voltage Noise eN 0.1Hz ≤ f ≤10Hz 30 µVP-P Broadband Voltage Noise VN 10Hz ≤ f ≤1kHz 52 µVRMS Noise Density f = 1kHz 1.1 µV/Hz Thermal Hysteresis (Note 11) VOUT/TA TA = +165°C 100 ppm Long Term Stability (Note 12) VOUT/t TA = +25°C 50 ppm FN6934 Rev.7.00 Page 5 of 23 Sep 28, 2018 Document Outline Applications Features Related Literature Pin Configuration Pin Descriptions Ordering Information Absolute Maximum Ratings Thermal Information Environmental Operating Conditions Recommended Operating Conditions Electrical Specifications (ISL21080-09, VOUT = 0.9V) Electrical Specifications (ISL21080-10, VOUT = 1.024V) Electrical Specifications (ISL21080-12, VOUT = 1.25V) Electrical Specifications (ISL21080-15, VOUT = 1.5V) Electrical Specifications (ISL21080-20, VOUT = 2.048V) Electrical Specifications (ISL21080-25, VOUT = 2.5V) Electrical Specifications (ISL21080-30, VOUT = 3.0V) Electrical Specifications (ISL21080-33, VOUT = 3.3V) Electrical Specifications (ISL21080-41 VOUT = 4.096V) Electrical Specifications (ISL21080-50 VOUT = 5.0V) Typical Performance Characteristics Curves VOUT = 0.9V Typical Performance Characteristics Curves VOUT = 1.5V Typical Performance Characteristics Curves High Current Application Applications Information FGA Technology Board Assembly Considerations Special Applications Considerations Nanopower Operation ISL21080 Used as a Low Cost Precision Current Source Output Impedance vs Load Current Board Mounting Considerations Noise Performance and Reduction Turn-On Time Temperature Coefficient Typical Application Circuits Revision History Package Outline Drawing
