Improved Precision Micropower. Shunt Voltage Reference. LM4041. ELECTRICAL CHARACTERISTICS (continued). PARAMETER. SYMBOL
Línea de modelo para esta hoja de datos
- LM4041AEM3-1.2+ LM4041AEM3-1.2+T LM4041AIM3-1.2+ LM4041AIM3-1.2+T LM4041BEM3-1.2+ LM4041BEM3-1.2+T LM4041BEX3-1.2+ LM4041BEX3-1.2+T LM4041BIM3-1.2+ LM4041BIM3-1.2+T LM4041BIX3-1.2+ LM4041BIX3-1.2+T LM4041CEX3-1.2+ LM4041CEX3-1.2+T LM4041CIM3-1.2+ LM4041CIM3-1.2+T LM4041CIX3-1.2+ LM4041CIX3-1.2+T LM4041DEX3-1.2+ LM4041DEX3-1.2+T LM4041DIM3-1.2+ LM4041DIM3-1.2+T LM4041DIX3-1.2+ LM4041DIX3-1.2+T
Versión de texto del documento

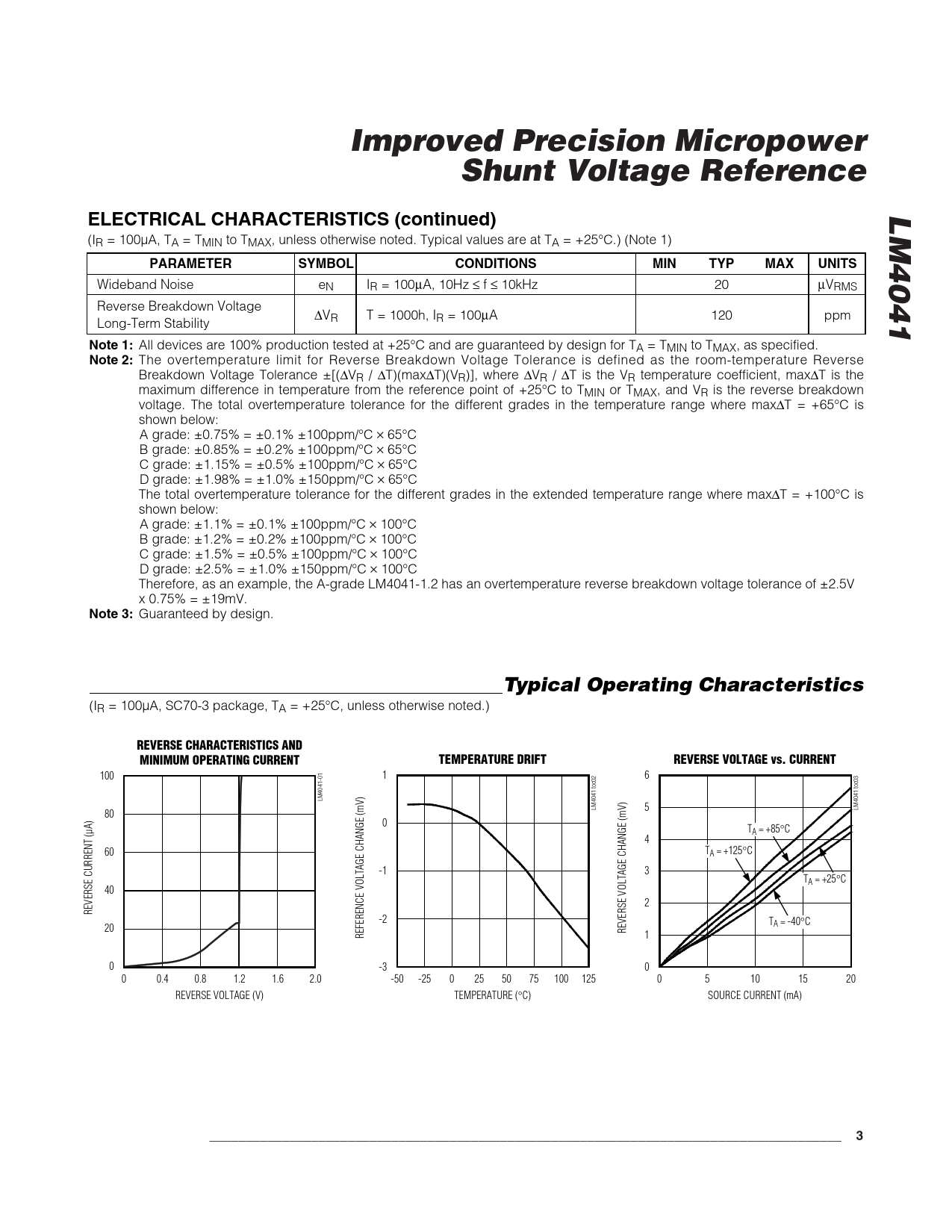

Improved Precision Micropower Shunt Voltage Reference LM4041 ELECTRICAL CHARACTERISTICS (continued)
(IR = 100µA, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Wideband Noise eN IR = 100μA, 10Hz ≤ f ≤ 10kHz 20 μVRMS Reverse Breakdown Voltage ΔV Long-Term Stability R T = 1000h, IR = 100μA 120 ppm
Note 1:
All devices are 100% production tested at +25°C and are guaranteed by design for TA = TMIN to TMAX, as specified.
Note 2:
The overtemperature limit for Reverse Breakdown Voltage Tolerance is defined as the room-temperature Reverse Breakdown Voltage Tolerance ±[(ΔVR / ΔT)(maxΔT)(VR)], where ΔVR / ΔT is the VR temperature coefficient, maxΔT is the maximum difference in temperature from the reference point of +25°C to TMIN or TMAX, and VR is the reverse breakdown voltage. The total overtemperature tolerance for the different grades in the temperature range where maxΔT = +65°C is shown below: A grade: ±0.75% = ±0.1% ±100ppm/°C ✕ 65°C B grade: ±0.85% = ±0.2% ±100ppm/°C ✕ 65°C C grade: ±1.15% = ±0.5% ±100ppm/°C ✕ 65°C D grade: ±1.98% = ±1.0% ±150ppm/°C ✕ 65°C The total overtemperature tolerance for the different grades in the extended temperature range where maxΔT = +100°C is shown below: A grade: ±1.1% = ±0.1% ±100ppm/°C ✕ 100°C B grade: ±1.2% = ±0.2% ±100ppm/°C ✕ 100°C C grade: ±1.5% = ±0.5% ±100ppm/°C ✕ 100°C D grade: ±2.5% = ±1.0% ±150ppm/°C ✕ 100°C Therefore, as an example, the A-grade LM4041-1.2 has an overtemperature reverse breakdown voltage tolerance of ±2.5V x 0.75% = ±19mV.
Note 3:
Guaranteed by design.
Typical Operating Characteristics
(IR = 100µA, SC70-3 package, TA = +25°C, unless otherwise noted.)
REVERSE CHARACTERISTICS AND MINIMUM OPERATING CURRENT TEMPERATURE DRIFT REVERSE VOLTAGE vs. CURRENT
100 1 6 LM4041-01 LM4041 toc02 5 LM4041 toc03 80 0 TA = +85°C 4 60 TA = +125°C -1 3 TA = +25°C 40 2 REVERSE CURRENT (µA) -2 TA = -40°C 20 REVERSE VOLTAGE CHANGE (mV) REFERENCE VOLTAGE CHANGE (mV) 1 0 -3 0 0 0.4 0.8 1.2 1.6 2.0 -50 -25 0 25 50 75 100 125 0 5 10 15 20 REVERSE VOLTAGE (V) TEMPERATURE (°C) SOURCE CURRENT (mA)
_______________________________________________________________________________________ 3
