LM4040 Improved Precision Micropower Shunt Voltage Reference with Multiple Reverse Breakdown Voltages

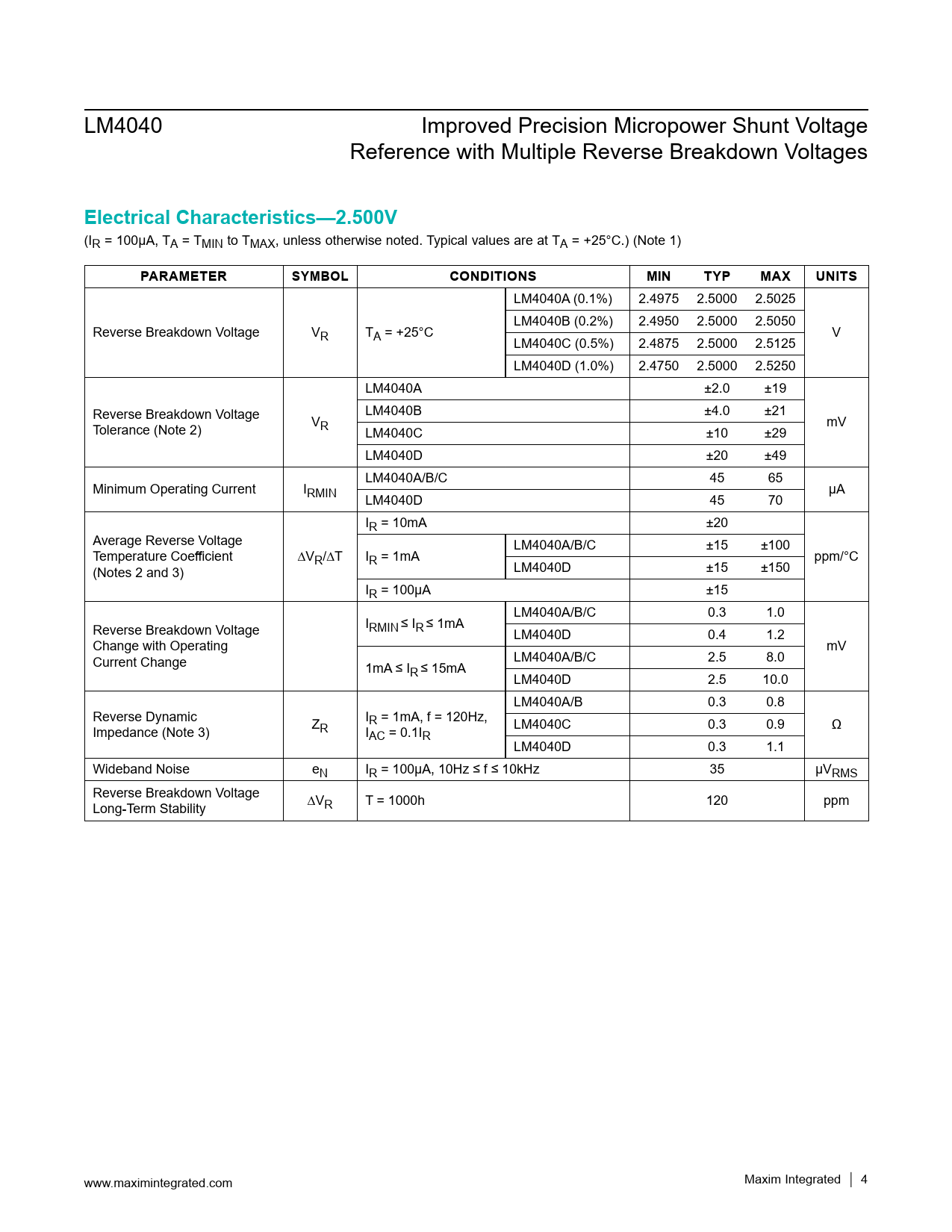

Electrical Characteristics—2.500V
(IR = 100μA, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
LM4040A (0.1%) 2.4975 2.5000 2.5025 LM4040B (0.2%) 2.4950 2.5000 2.5050 Reverse Breakdown Voltage VR TA = +25°C V LM4040C (0.5%) 2.4875 2.5000 2.5125 LM4040D (1.0%) 2.4750 2.5000 2.5250 LM4040A ±2.0 ±19 Reverse Breakdown Voltage LM4040B ±4.0 ±21 Tolerance (Note 2) VR mV LM4040C ±10 ±29 LM4040D ±20 ±49 LM4040A/B/C 45 65 Minimum Operating Current IRMIN µA LM4040D 45 70 IR = 10mA ±20 Average Reverse Voltage LM4040A/B/C ±15 ±100 Temperature Coefficient ∆VR/∆T IR = 1mA ppm/°C (Notes 2 and 3) LM4040D ±15 ±150 IR = 100µA ±15 LM4040A/B/C 0.3 1.0 Reverse Breakdown Voltage IRMIN ≤ I ≤ 1mA R LM4040D 0.4 1.2 Change with Operating mV Current Change LM4040A/B/C 2.5 8.0 1mA ≤ IR ≤ 15mA LM4040D 2.5 10.0 LM4040A/B 0.3 0.8 Reverse Dynamic IR = 1mA, f = 120Hz, Impedance (Note 3) ZR I LM4040C 0.3 0.9 Ω AC = 0.1IR LM4040D 0.3 1.1 Wideband Noise eN IR = 100µA, 10Hz ≤ f ≤ 10kHz 35 µVRMS Reverse Breakdown Voltage Long-Term Stability ∆VR T = 1000h 120 ppm www.maximintegrated.com Maxim Integrated │ 4
