here. LM4040. Improved Precision Micropower Shunt Voltage. Reference with Multiple Reverse Breakdown Voltages
Línea de modelo para esta hoja de datos
- LM4040AEM3-2.1+ LM4040AEM3-2.1+T LM4040AEM3-2.5+ LM4040AEM3-2.5+T LM4040AEM3-3.0+ LM4040AEM3-3.0+T LM4040AEM3-3.0/V+ LM4040AEM3-3.0/V+T LM4040AEM3-4.1+T LM4040AEM3-5.0+ LM4040AEM3-5.0+T LM4040AEM3-5.0/V+ LM4040AEM3-5.0/V+T LM4040AEX3-2.5+ LM4040AEX3-2.5+T LM4040AEX3-3.0+ LM4040AEX3-3.0+T LM4040AEX3-3.0/V+ LM4040AEX3-3.0/V+T LM4040AEX3-3.3+ LM4040AEX3-3.3+T LM4040AEX3-4.1+ LM4040AEX3-4.1+T LM4040AEX3-5.0+ LM4040AEX3-5.0+T LM4040AIM3-2.1+ LM4040AIM3-2.1+T LM4040AIM3-2.5+ LM4040AIM3-2.5+T LM4040AIM3-3.0+ LM4040AIM3-3.0+T LM4040AIM3-4.1+ LM4040AIM3-4.1+T LM4040AIM3-5.0+ LM4040AIM3-5.0+T LM4040AIX3-2.1+ LM4040AIX3-2.1+T LM4040AIX3-2.5+ LM4040AIX3-2.5+T LM4040AIX3-3.0+ LM4040AIX3-3.0+T LM4040AIX3-4.1+ LM4040AIX3-4.1+T LM4040AIX3-5.0+ LM4040AIX3-5.0+T LM4040BEM3-2.1+ LM4040BEM3-2.1+T LM4040BEM3-3.0+ LM4040BEM3-3.0+T LM4040BEM3-4.1+ LM4040BEM3-4.1+T LM4040BEM3-4.1/V+ LM4040BEM3-4.1/V+T LM4040BEM3-5.0+ LM4040BEM3-5.0+T LM4040BEX3-2.5+ LM4040BEX3-2.5+T LM4040BEX3-4.1+ LM4040BEX3-4.1+T LM4040BEX3-5.0+ LM4040BEX3-5.0+T LM4040BIM3-2.1+ LM4040BIM3-2.1+T LM4040BIM3-2.5+ LM4040BIM3-2.5+T LM4040BIM3-2.5/V+ LM4040BIM3-2.5/V+T LM4040BIM3-3.0+ LM4040BIM3-3.0+T LM4040BIM3-4.1+ LM4040BIM3-4.1+T LM4040BIM3-5.0+ LM4040BIM3-5.0+T LM4040BIX3-2.5+ LM4040BIX3-2.5+T LM4040BIX3-3.0+ LM4040BIX3-3.0+T LM4040BIX3-5.0+ LM4040BIX3-5.0+T LM4040CEM3-2.1+ LM4040CEM3-2.1+T LM4040CEM3-2.5+ LM4040CEM3-2.5+T LM4040CEM3-3.0+ LM4040CEM3-3.0+T LM4040CEM3-4.1+ LM4040CEM3-4.1+T LM4040CEM3-5.0+ LM4040CEM3-5.0+T LM4040CEM3-5.0/V+ LM4040CEM3-5.0/V+T LM4040CEX3-2.5+ LM4040CEX3-2.5+T LM4040CEX3-3.0+ LM4040CEX3-3.0+T LM4040CEX3-3.3+ LM4040CEX3-3.3+T LM4040CEX3-4.1+ LM4040CEX3-4.1+T LM4040CEX3-5.0+ LM4040CEX3-5.0+T LM4040CIM3-2.1+ LM4040CIM3-2.1+T LM4040CIM3-2.5+ LM4040CIM3-2.5+T LM4040CIM3-3.0+ LM4040CIM3-3.0+T LM4040CIM3-4.1+ LM4040CIM3-4.1+T LM4040CIM3-5.0+ LM4040CIM3-5.0+T LM4040CIX3-2.1+ LM4040CIX3-2.1+T LM4040CIX3-2.5+ LM4040CIX3-2.5+T LM4040CIX3-4.1+ LM4040CIX3-4.1+T LM4040CIX3-5.0+ LM4040CIX3-5.0+T LM4040DEM3-2.5+ LM4040DEM3-2.5+T LM4040DEM3-3.0+ LM4040DEM3-3.0+T LM4040DEM3-4.1+ LM4040DEM3-4.1+T LM4040DEM3-5.0+ LM4040DEM3-5.0+T LM4040DEX3-2.1+ LM4040DEX3-2.1+T LM4040DEX3-2.5+T LM4040DEX3-3.0+T LM4040DEX3-3.3+ LM4040DEX3-3.3+T LM4040DIM3-2.5+ LM4040DIM3-2.5+T LM4040DIM3-3.0+ LM4040DIM3-3.0+T LM4040DIM3-4.1+ LM4040DIM3-4.1+T LM4040DIM3-5.0+ LM4040DIM3-5.0+T LM4040DIX3-2.1+ LM4040DIX3-2.1+T LM4040DIX3-2.5+ LM4040DIX3-2.5+T LM4040DIX3-3.0+ LM4040DIX3-3.0+T LM4040DIX3-5.0+ LM4040DIX3-5.0+T
Versión de texto del documento
link to page 14 link to page 14 Click
here
for production status of specific part numbers.

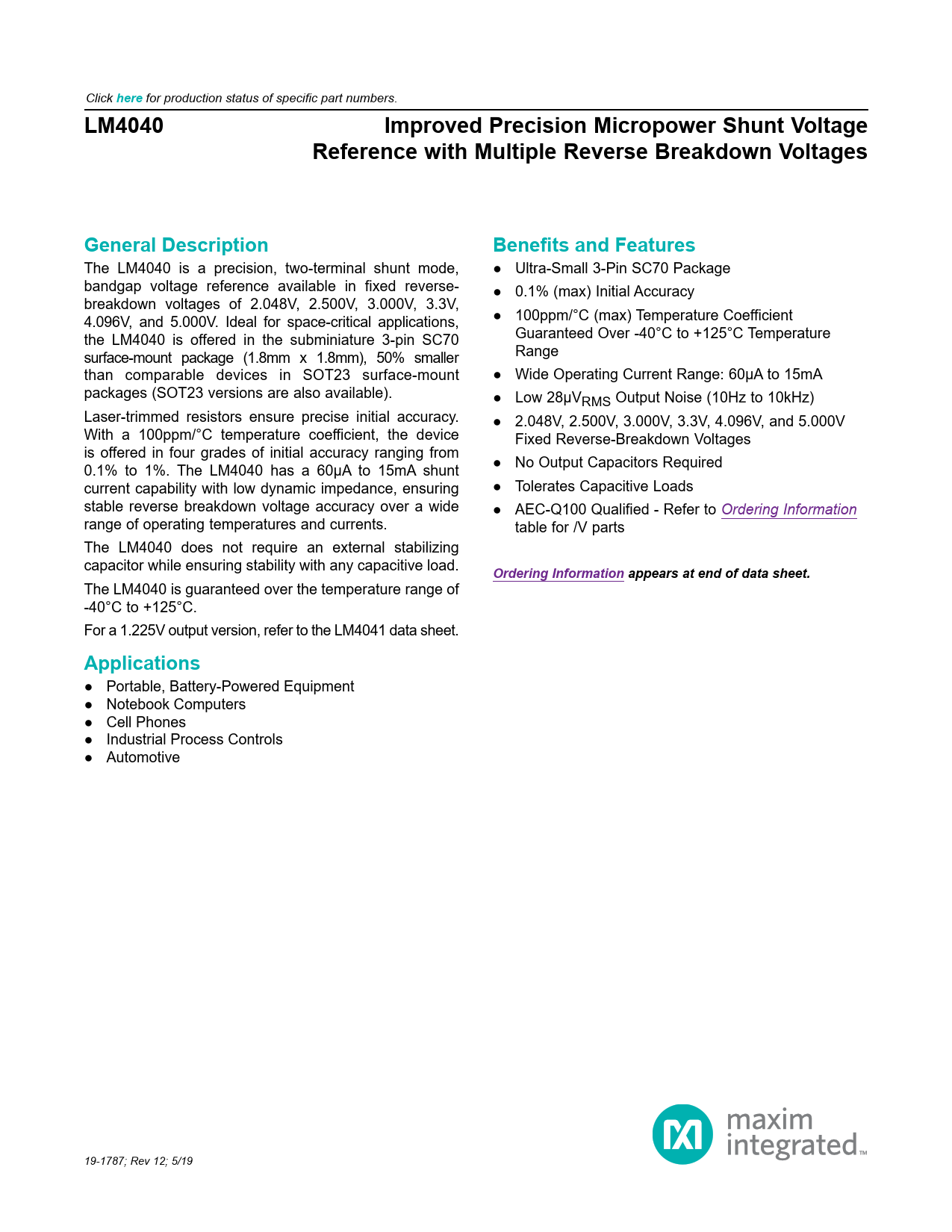

LM4040 Improved Precision Micropower Shunt Voltage Reference with Multiple Reverse Breakdown Voltages General Description Benefits and Features
The LM4040 is a precision, two-terminal shunt mode, ● Ultra-Small 3-Pin SC70 Package bandgap voltage reference available in fixed reverse- ● 0.1% (max) Initial Accuracy breakdown voltages of 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V. Ideal for space-critical applications, ● 100ppm/°C (max) Temperature Coefficient the LM4040 is offered in the subminiature 3-pin SC70 Guaranteed Over -40°C to +125°C Temperature surface-mount package (1.8mm x 1.8mm), 50% smaller Range than comparable devices in SOT23 surface-mount ● Wide Operating Current Range: 60μA to 15mA packages (SOT23 versions are also available). ● Low 28μVRMS Output Noise (10Hz to 10kHz) Laser-trimmed resistors ensure precise initial accuracy. ● 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V With a 100ppm/°C temperature coefficient, the device Fixed Reverse-Breakdown Voltages is offered in four grades of initial accuracy ranging from 0.1% to 1%. The LM4040 has a 60μA to 15mA shunt ● No Output Capacitors Required current capability with low dynamic impedance, ensuring ● Tolerates Capacitive Loads stable reverse breakdown voltage accuracy over a wide ● AEC-Q100 Qualified - Refer to Ordering Information range of operating temperatures and currents. table for /V parts The LM4040 does not require an external stabilizing capacitor while ensuring stability with any capacitive load.
Ordering Information appears at end of data sheet.
The LM4040 is guaranteed over the temperature range of -40°C to +125°C. For a 1.225V output version, refer to the LM4041 data sheet.
Applications
● Portable, Battery-Powered Equipment ● Notebook Computers ● Cell Phones ● Industrial Process Controls ● Automotive 19-1787; Rev 12; 5/19
here
for production status of specific part numbers.
LM4040 Improved Precision Micropower Shunt Voltage Reference with Multiple Reverse Breakdown Voltages General Description Benefits and Features
The LM4040 is a precision, two-terminal shunt mode, ● Ultra-Small 3-Pin SC70 Package bandgap voltage reference available in fixed reverse- ● 0.1% (max) Initial Accuracy breakdown voltages of 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V. Ideal for space-critical applications, ● 100ppm/°C (max) Temperature Coefficient the LM4040 is offered in the subminiature 3-pin SC70 Guaranteed Over -40°C to +125°C Temperature surface-mount package (1.8mm x 1.8mm), 50% smaller Range than comparable devices in SOT23 surface-mount ● Wide Operating Current Range: 60μA to 15mA packages (SOT23 versions are also available). ● Low 28μVRMS Output Noise (10Hz to 10kHz) Laser-trimmed resistors ensure precise initial accuracy. ● 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V With a 100ppm/°C temperature coefficient, the device Fixed Reverse-Breakdown Voltages is offered in four grades of initial accuracy ranging from 0.1% to 1%. The LM4040 has a 60μA to 15mA shunt ● No Output Capacitors Required current capability with low dynamic impedance, ensuring ● Tolerates Capacitive Loads stable reverse breakdown voltage accuracy over a wide ● AEC-Q100 Qualified - Refer to Ordering Information range of operating temperatures and currents. table for /V parts The LM4040 does not require an external stabilizing capacitor while ensuring stability with any capacitive load.
Ordering Information appears at end of data sheet.
The LM4040 is guaranteed over the temperature range of -40°C to +125°C. For a 1.225V output version, refer to the LM4041 data sheet.
Applications
● Portable, Battery-Powered Equipment ● Notebook Computers ● Cell Phones ● Industrial Process Controls ● Automotive 19-1787; Rev 12; 5/19
