Datasheet BL8530 (Belling) - 6
| Fabricante | Belling |
| Descripción | PFM Step-Up DC/DC Converter With High Efficiency And Low Noise |
| Páginas / Página | 14 / 6 — BL8530. Diode Selection. Input Capacitor. TEST CIRCUITS |
| Formato / tamaño de archivo | PDF / 231 Kb |
| Idioma del documento | Inglés |

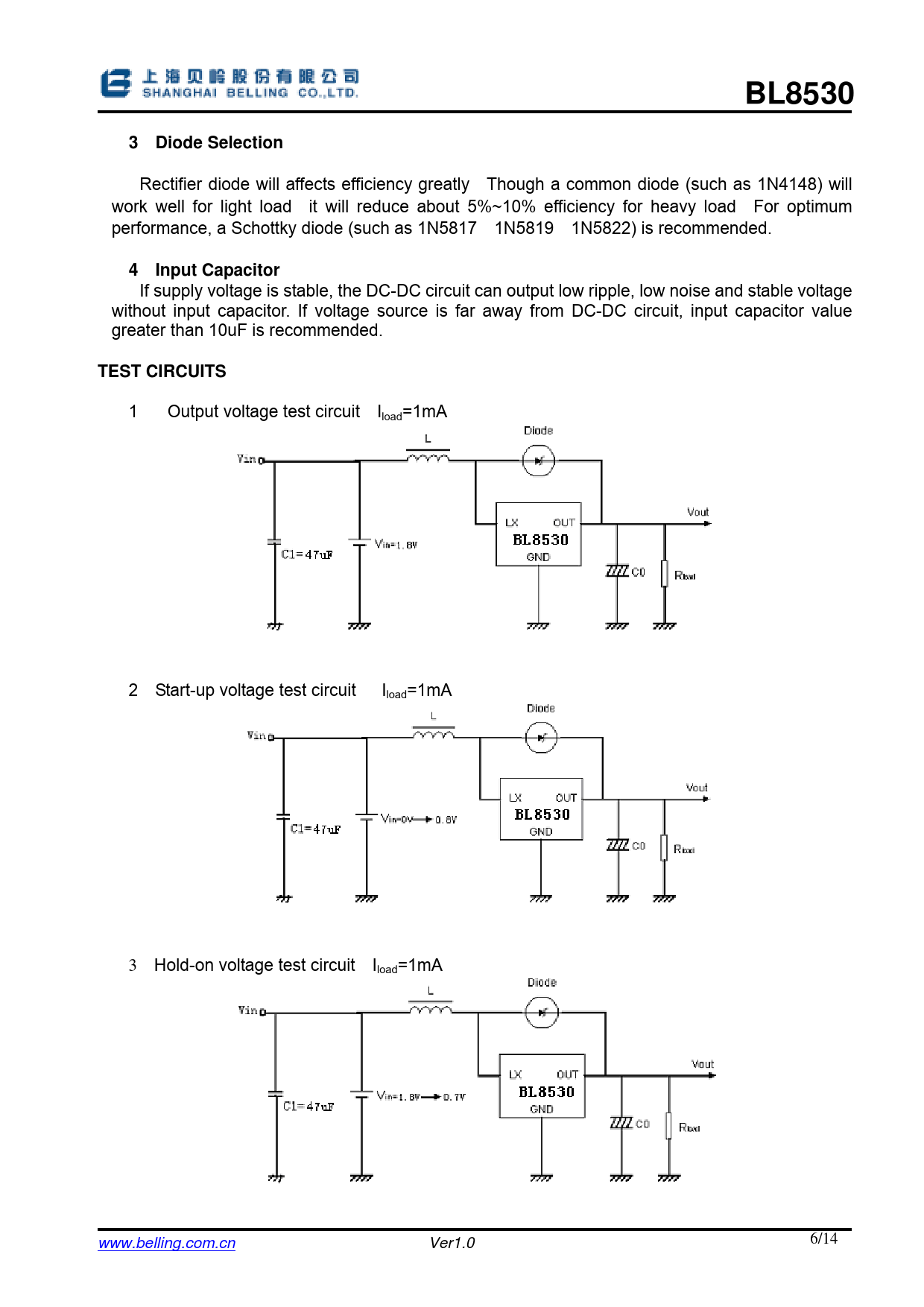

BL8530. Diode Selection. Input Capacitor. TEST CIRCUITS
Línea de modelo para esta hoja de datos
- BL8530-251RM BL8530-251SM BL8530-252RN BL8530-253RM BL8530-253SM BL8530-254RN BL8530-271RM BL8530-271SM BL8530-272RN BL8530-273RM BL8530-273SM BL8530-274RN BL8530-301RM BL8530-301SM BL8530-302RN BL8530-303RM BL8530-303SM BL8530-304RN BL8530-331RM BL8530-331SM BL8530-332RN BL8530-333RM BL8530-333SM BL8530-334RN BL8530-361RM BL8530-361SM BL8530-362RN BL8530-363RM BL8530-363SM BL8530-364RN BL8530-401RM BL8530-401SM BL8530-402RN BL8530-403RM BL8530-403SM BL8530-404RN BL8530-501RM BL8530-501SM BL8530-502RN BL8530-503RM BL8530-503SM BL8530-504RN BL8530-601RM BL8530-601SM BL8530-602RN BL8530-603RM BL8530-603SM BL8530-604RN
Versión de texto del documento
BL8530
（
3
）
Diode Selection
Rectifier diode will affects efficiency greatly，Though a common diode (such as 1N4148) will work well for light load，it will reduce about 5%~10% efficiency for heavy load，For optimum performance, a Schottky diode (such as 1N5817、1N5819、1N5822) is recommended. （
4
）
Input Capacitor
If supply voltage is stable, the DC-DC circuit can output low ripple, low noise and stable voltage without input capacitor. If voltage source is far away from DC-DC circuit, input capacitor value greater than 10uF is recommended.
TEST CIRCUITS
： （1） Output voltage test circuit（Iload=1mA） （2）Start-up voltage test circuit （Iload=1mA） （3）Hold-on voltage test circuit（Iload=1mA） www.belling.com.cn Ver1.0 6/ 14
（
3
）
Diode Selection
Rectifier diode will affects efficiency greatly，Though a common diode (such as 1N4148) will work well for light load，it will reduce about 5%~10% efficiency for heavy load，For optimum performance, a Schottky diode (such as 1N5817、1N5819、1N5822) is recommended. （
4
）
Input Capacitor
If supply voltage is stable, the DC-DC circuit can output low ripple, low noise and stable voltage without input capacitor. If voltage source is far away from DC-DC circuit, input capacitor value greater than 10uF is recommended.
TEST CIRCUITS
： （1） Output voltage test circuit（Iload=1mA） （2）Start-up voltage test circuit （Iload=1mA） （3）Hold-on voltage test circuit（Iload=1mA） www.belling.com.cn Ver1.0 6/ 14
