Datasheet ZXRE160 (Diodes) - 2
| Fabricante | Diodes |
| Descripción | 0.6V Enhanced Adjustable Precision Shunt Regulator |
| Páginas / Página | 15 / 2 — A Product Line of. Diodes Incorporated. ZXRE160. Typical Applications … |
| Formato / tamaño de archivo | PDF / 431 Kb |
| Idioma del documento | Inglés |

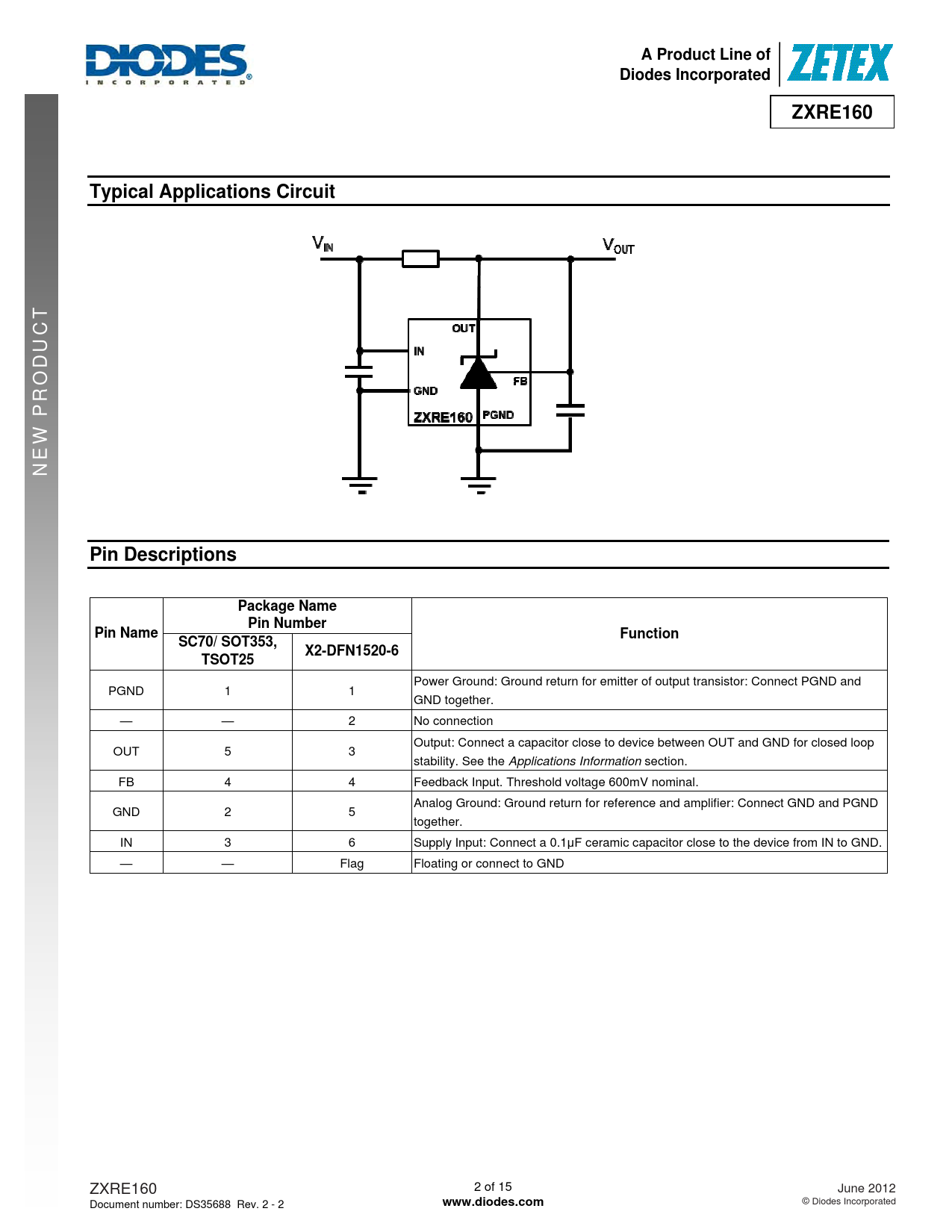

A Product Line of. Diodes Incorporated. ZXRE160. Typical Applications Circuit. NEW PROD. Pin Descriptions. Package Name. Pin Number
Línea de modelo para esta hoja de datos
Versión de texto del documento
A Product Line of Diodes Incorporated ZXRE160 Typical Applications Circuit T UC NEW PROD Pin Descriptions Package Name Pin Number Pin Name Function SC70/ SOT353, X2-DFN1520-6 TSOT25
Power Ground: Ground return for emitter of output transistor: Connect PGND and PGND 1 1 GND together. — — 2 No connection Output: Connect a capacitor close to device between OUT and GND for closed loop OUT 5 3 stability. See the Applications Information section. FB 4 4 Feedback Input. Threshold voltage 600mV nominal. Analog Ground: Ground return for reference and amplifier: Connect GND and PGND GND 2 5 together. IN 3 6 Supply Input: Connect a 0.1μF ceramic capacitor close to the device from IN to GND. — — Flag Floating or connect to GND ZXRE160 2 of 15 June 2012 Document number: DS35688 Rev. 2 - 2
