Datasheet ZTLV431 (Diodes) - 2
| Fabricante | Diodes |
| Descripción | 1.24V Cost Effective Shunt Regulator |
| Páginas / Página | 8 / 2 — ZTLV431. Absolute maximum ratings. Package thermal data. Package. PDIS. … |
| Formato / tamaño de archivo | PDF / 298 Kb |
| Idioma del documento | Inglés |
ZTLV431. Absolute maximum ratings. Package thermal data. Package. PDIS. TA =25°C. Recommended operating conditions. Min. Max. Units
Línea de modelo para esta hoja de datos
Versión de texto del documento

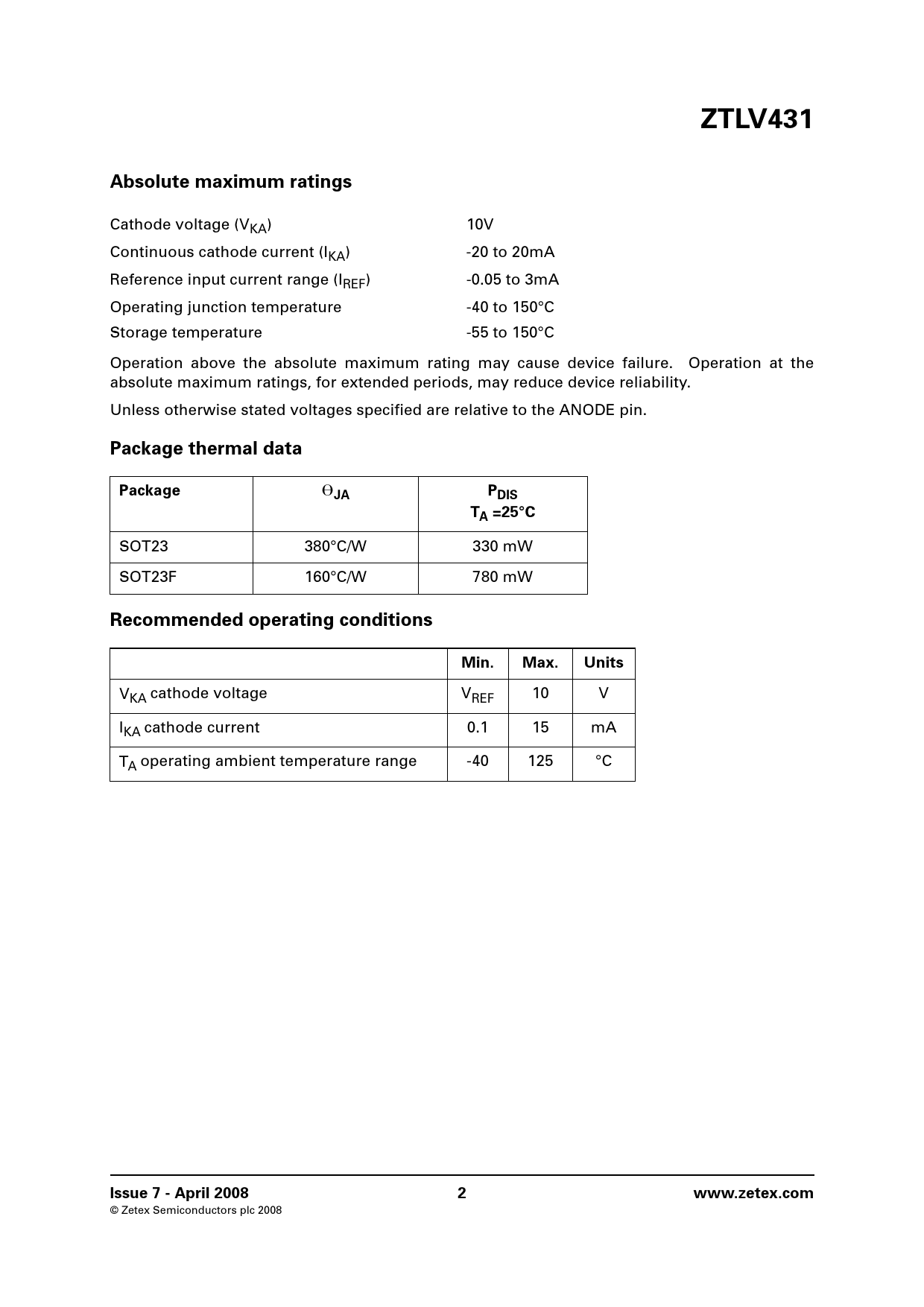

ZTLV431 Absolute maximum ratings
Cathode voltage (VKA) 10V Continuous cathode current (IKA) -20 to 20mA Reference input current range (IREF) -0.05 to 3mA Operating junction temperature -40 to 150°C Storage temperature -55 to 150°C Operation above the absolute maximum rating may cause device failure. Operation at the absolute maximum ratings, for extended periods, may reduce device reliability. Unless otherwise stated voltages specified are relative to the ANODE pin.
Package thermal data Package
⍜
JA PDIS TA =25°C
SOT23 380°C/W 330 mW SOT23F 160°C/W 780 mW
Recommended operating conditions Min. Max. Units
VKA cathode voltage VREF 10 V IKA cathode current 0.1 15 mA TA operating ambient temperature range -40 125 °C
Issue 7 - April 2008 2 www.zetex.com
© Zetex Semiconductors plc 2008 Document Outline ZTLV431 1.24V Cost effective shunt regulator Description Features Applications Pin connections Ordering information Absolute maximum ratings Package thermal data Recommended operating conditions Electrical characteristics (electrical characteristics over recommended operating conditions, TA = 25°C, KKA = VREF, IKA = 10mA unless otherwise stated) Typical characteristics Pin connections - preview status devices Package outline - SOT23
