Datasheet LM4040 (Diodes)
| Fabricante | Diodes |
| Descripción | Precision Micropower Shunt Voltage References |
| Páginas / Página | 16 / 1 — LM4040. PRECISION MICROPOWER SHUNT VOLTAGE REFERENCES. Description. Pin … |
| Formato / tamaño de archivo | PDF / 1.6 Mb |
| Idioma del documento | Inglés |
LM4040. PRECISION MICROPOWER SHUNT VOLTAGE REFERENCES. Description. Pin Assignments. (Top View). SOT23. Features. SC70-5
Línea de modelo para esta hoja de datos
- LM4040B25FTA LM4040B25QFTA LM4040B30FTA LM4040B30QFTA LM4040B33FTA LM4040B33QFTA LM4040B41FTA LM4040B41QFTA LM4040B50FTA LM4040C25FTA LM4040C25QFTA LM4040C30FTA LM4040C33FTA LM4040C33QFTA LM4040C41FTA LM4040C41QFTA LM4040C50FTA LM4040D25FTA LM4040D25QFTA LM4040D30FTA LM4040D30QFTA LM4040D33FTA LM4040D33QFTA LM4040D41FTA LM4040D41QFTA LM4040D50FTA LM4040D50QFTA
Versión de texto del documento

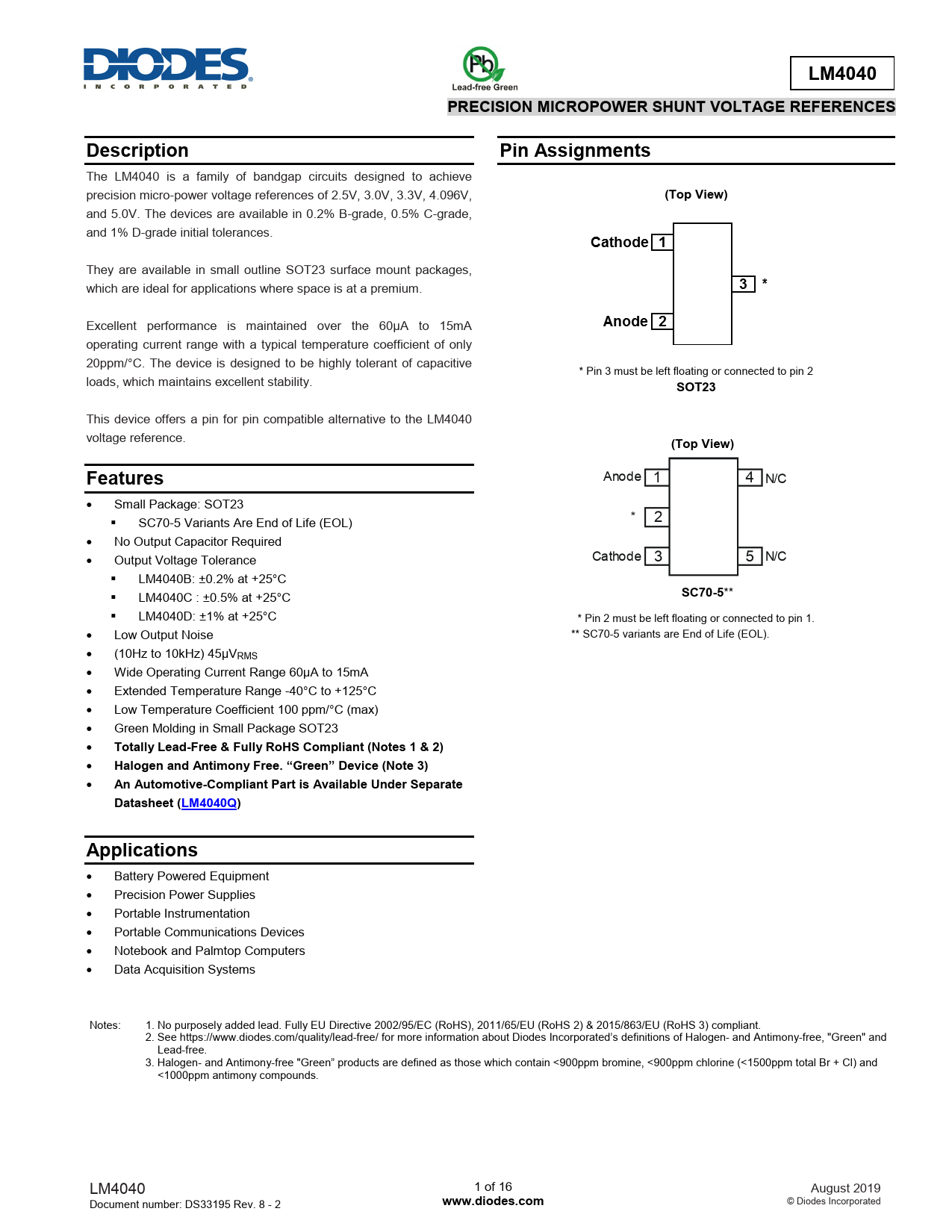

LM4040 PRECISION MICROPOWER SHUNT VOLTAGE REFERENCES Description Pin Assignments
The LM4040 is a family of bandgap circuits designed to achieve precision micro-power voltage references of 2.5V, 3.0V, 3.3V, 4.096V,
(Top View)
and 5.0V. The devices are available in 0.2% B-grade, 0.5% C-grade, and 1% D-grade initial tolerances. They are available in smal outline SOT23 surface mount packages, which are ideal for applications where space is at a premium. Excellent performance is maintained over the 60µA to 15mA operating current range with a typical temperature coefficient of only 20ppm/°C. The device is designed to be highly tolerant of capacitive * Pin 3 must be left floating or connected to pin 2 loads, which maintains excellent stability.
SOT23
This device offers a pin for pin compatible alternative to the LM4040 voltage reference. LM4040 H5 (SC70-5)
(Top View) Features
Anode 1 4 N/C • Small Package: SOT23 SC70-5 Variants Are End of Life (EOL) * 2 • No Output Capacitor Required • Output Voltage Tolerance Cathode 3 5 N/C LM4040B: ±0.2% at +25°C Top View LM4040C : ±0.5% at +25°C
SC70-5
** * Pin 2 must be left floating or connected to pi n 1 LM4040D: ±1% at +25°C * Pin 2 must be left floating or connected to pin 1. • Low Output Noise ** SC70-5 variants are End of Life (EOL). • (10Hz to 10kHz) 45µVRMS • Wide Operating Current Range 60µA to 15mA • Extended Temperature Range -40°C to +125°C • Low Temperature Coefficient 100 ppm/°C (max) • Green Molding in Small Package SOT23 •
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
An Automotive-Compliant Part is Available Under Separate Datasheet (LM4040Q) Applications
• Battery Powered Equipment • Precision Power Supplies • Portable Instrumentation • Portable Communications Devices • Notebook and Palmtop Computers • Data Acquisition Systems Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. LM4040 1 of 16 August 2019 Document number: DS33195 Rev. 8 - 2
www.diodes.com
© Diodes Incorporated Document Outline Printed Circuit Board Layout Considerations
The LM4040 is a family of bandgap circuits designed to achieve precision micro-power voltage references of 2.5V, 3.0V, 3.3V, 4.096V,
(Top View)
and 5.0V. The devices are available in 0.2% B-grade, 0.5% C-grade, and 1% D-grade initial tolerances. They are available in smal outline SOT23 surface mount packages, which are ideal for applications where space is at a premium. Excellent performance is maintained over the 60µA to 15mA operating current range with a typical temperature coefficient of only 20ppm/°C. The device is designed to be highly tolerant of capacitive * Pin 3 must be left floating or connected to pin 2 loads, which maintains excellent stability.
SOT23
This device offers a pin for pin compatible alternative to the LM4040 voltage reference. LM4040 H5 (SC70-5)
(Top View) Features
Anode 1 4 N/C • Small Package: SOT23 SC70-5 Variants Are End of Life (EOL) * 2 • No Output Capacitor Required • Output Voltage Tolerance Cathode 3 5 N/C LM4040B: ±0.2% at +25°C Top View LM4040C : ±0.5% at +25°C
SC70-5
** * Pin 2 must be left floating or connected to pi n 1 LM4040D: ±1% at +25°C * Pin 2 must be left floating or connected to pin 1. • Low Output Noise ** SC70-5 variants are End of Life (EOL). • (10Hz to 10kHz) 45µVRMS • Wide Operating Current Range 60µA to 15mA • Extended Temperature Range -40°C to +125°C • Low Temperature Coefficient 100 ppm/°C (max) • Green Molding in Small Package SOT23 •
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
An Automotive-Compliant Part is Available Under Separate Datasheet (LM4040Q) Applications
• Battery Powered Equipment • Precision Power Supplies • Portable Instrumentation • Portable Communications Devices • Notebook and Palmtop Computers • Data Acquisition Systems Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. LM4040 1 of 16 August 2019 Document number: DS33195 Rev. 8 - 2
www.diodes.com
© Diodes Incorporated Document Outline Printed Circuit Board Layout Considerations
